User name Yi Qiang
Log entry time 17:07:41 on February 09, 2009
Entry number 260035
keyword=EPR with Transverse PumpingCell :: Smantha
LHRS :: -
Laser Power :: 2x25W COMET + 25W FAP
Oven Temperatuer :: 230C
Field direction = Transverse -

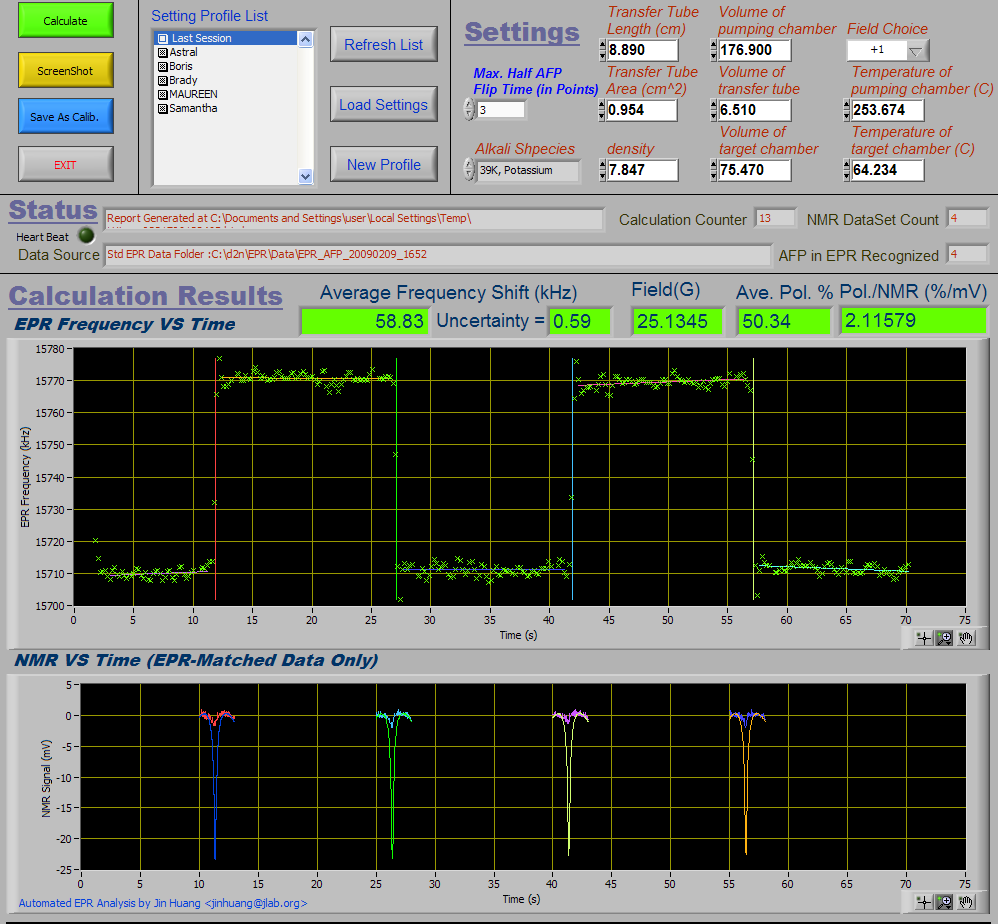

Polarization = 50.34%
Calibration constant = 2.12 %/mV
Pumping direction :: +

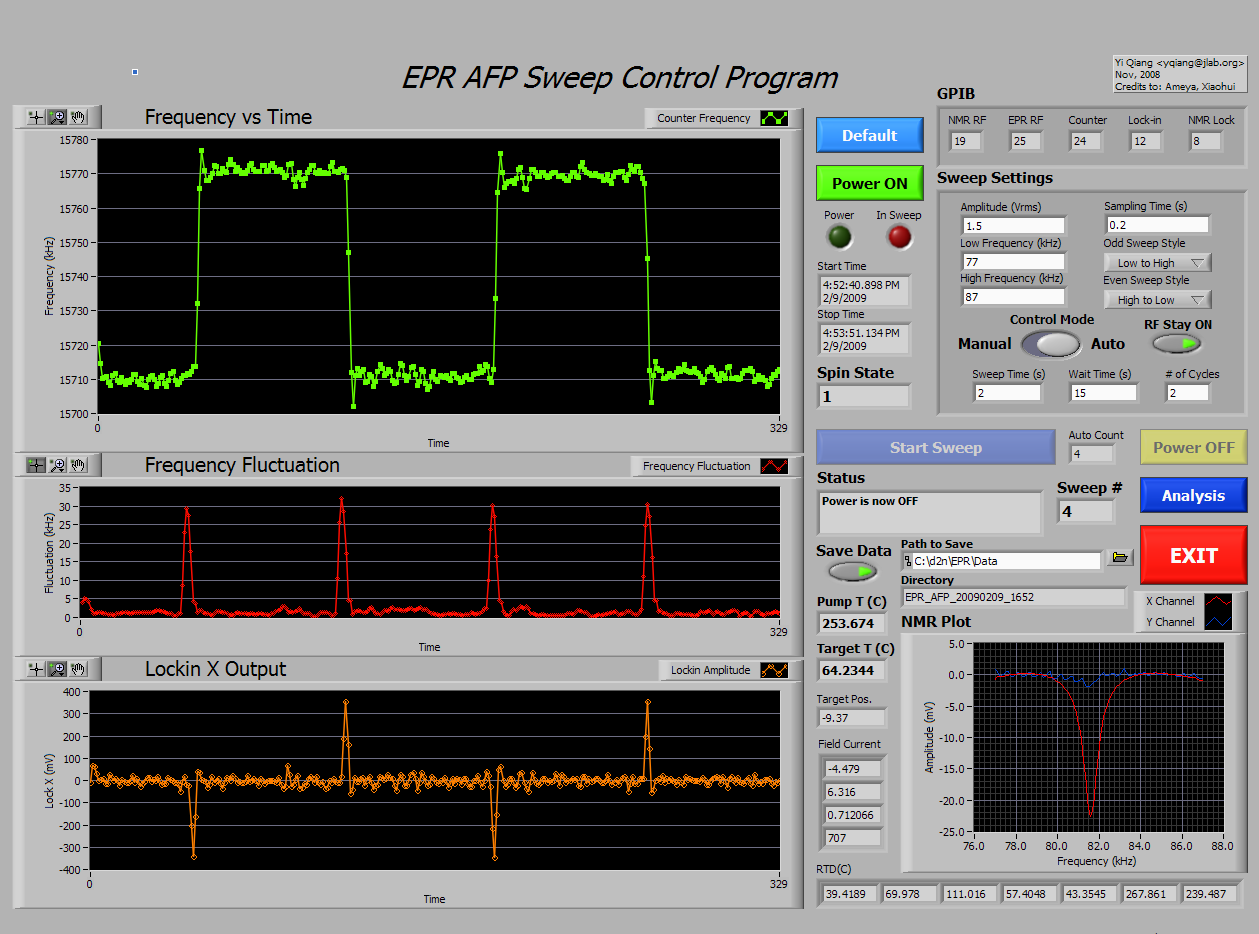

DATA :: C:\d2n\EPR\Data\EPR_AFP_20090209_1652
The Max NMR measurement of Transverse pumping is about 25.3mV
corresponding to 53.6% polarization. Compared to 70% polarization UVa got
with 3x20W COMET lasers, the polarization we got is quite low. We will
increase the oven temperature to 235C to see whether it's due to the
temperature.
A copy of this log entry has been emailed to: jpchen, brads, moffit
Figure 1
Figure 2
Figure 3
