User name M. Cummings
Log entry time 12:51:48 on March 02, 2012
Entry number 362725
keyword=RHRS plots: s1 and cherenkovRHRS plots for s1 and cherenkov.
Cherenkov plots are from cosmic run 21668

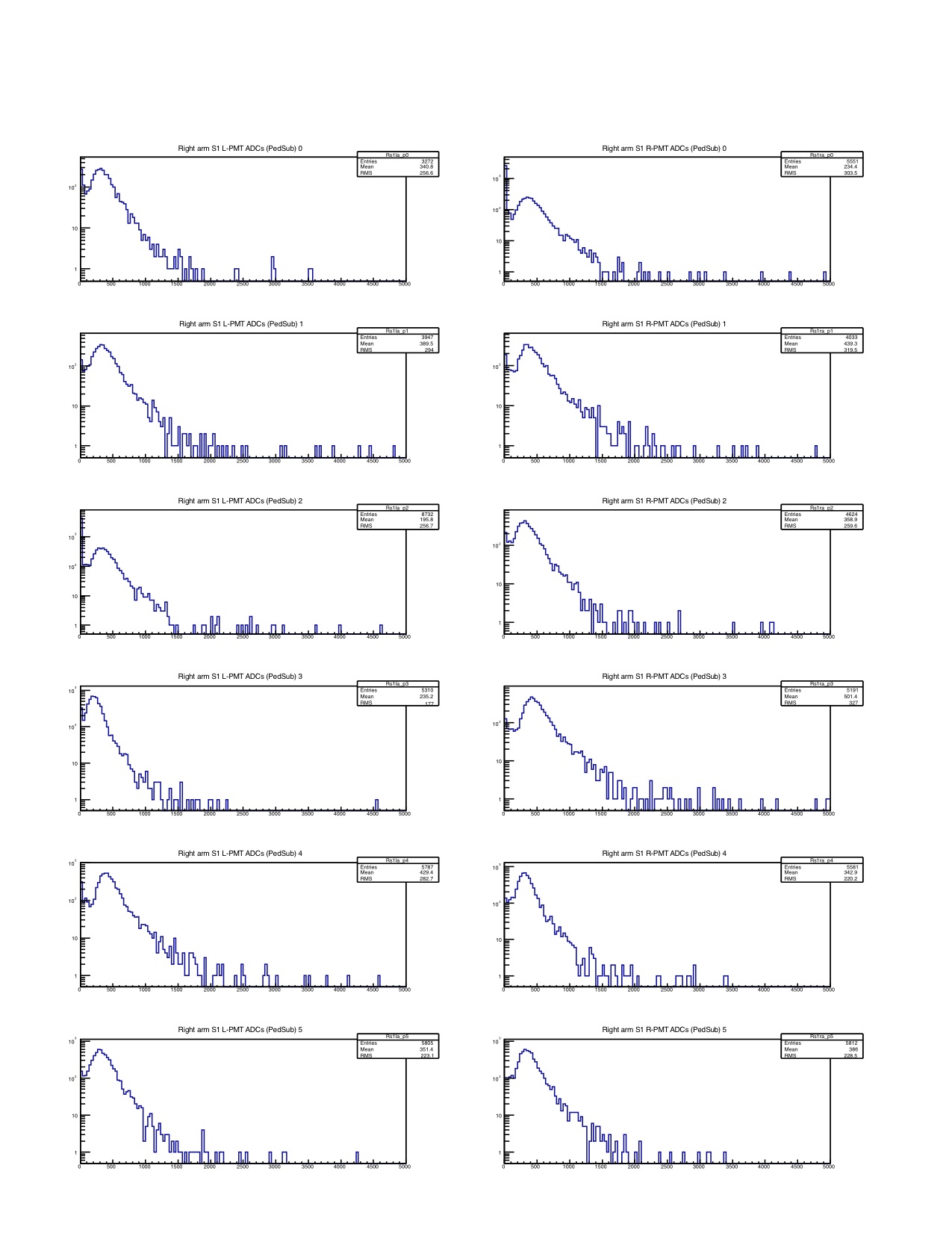

s1 plots are from cosmic run 21670. There was a double peak in the TDC signal for R.s1.rt[0]. This morning I looked at the signals for this channel on a scope and found that the signal coming out of the delay module was showing a second pulse. I swapped with delay module with one from crate 2 slot 7, and this seems to have fixed the problem.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
