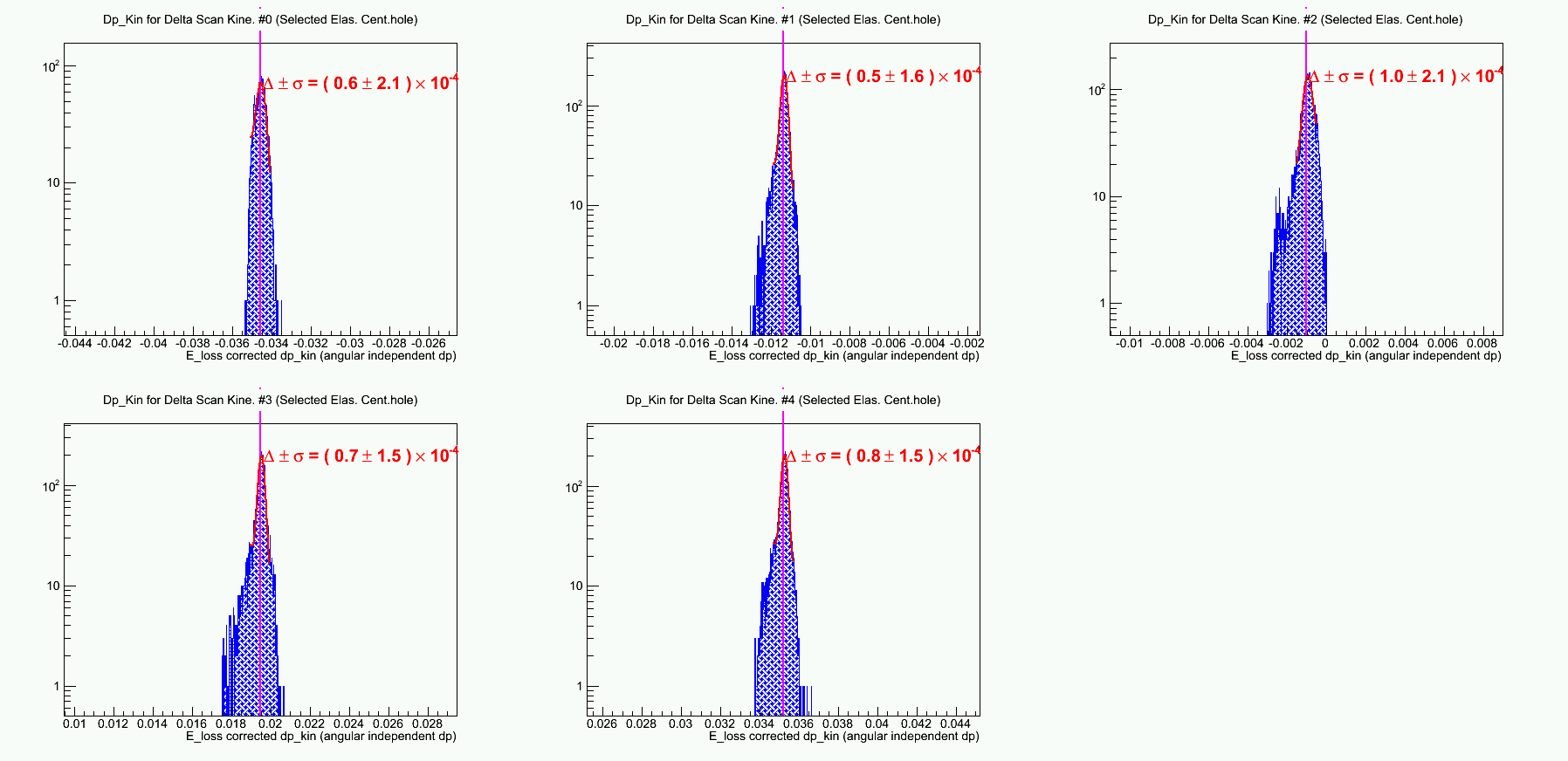

keyword=Full solid angle dp calibration of RHRS straight-thruThis time, the optimization includes data from full solid angle (comparing to data from only central hole last time) in Figure 1. #Delta represents the difference between real value and reconstructed value. #sigma is the resolution of that peak (fitted with Gaussian function). The next four plots show the sieve pattern reconstruction comparison between before and after optics matrix angular element calibration at -3.5% and +3.5% respectively.
A copy of this log entry has been emailed to: jixie, slifer, mhuang, jpchen
Figure 1

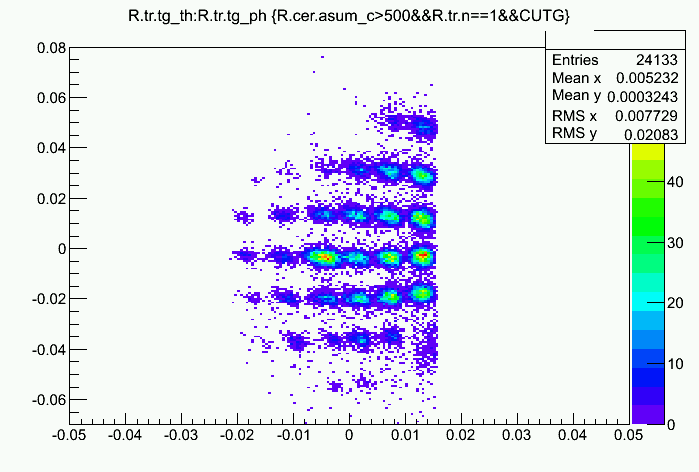

-3.5% before

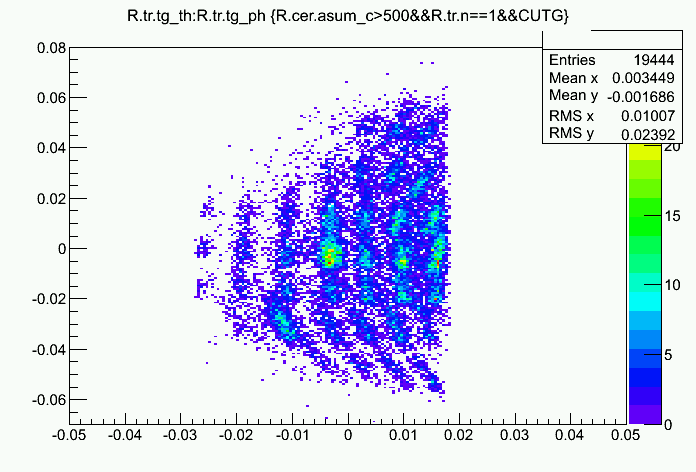

-3.5% after

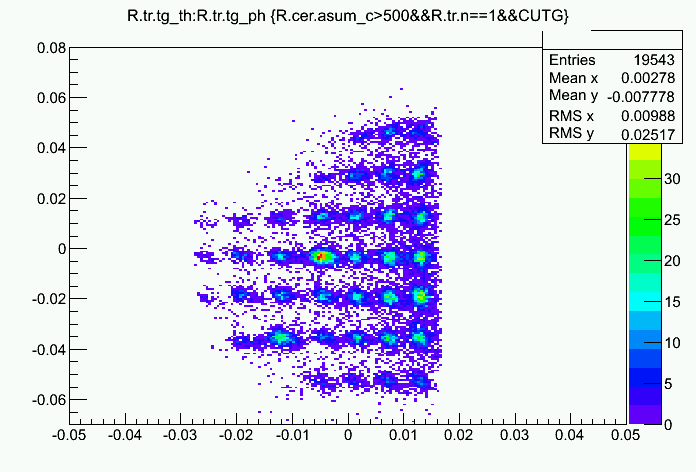

+3.5% before

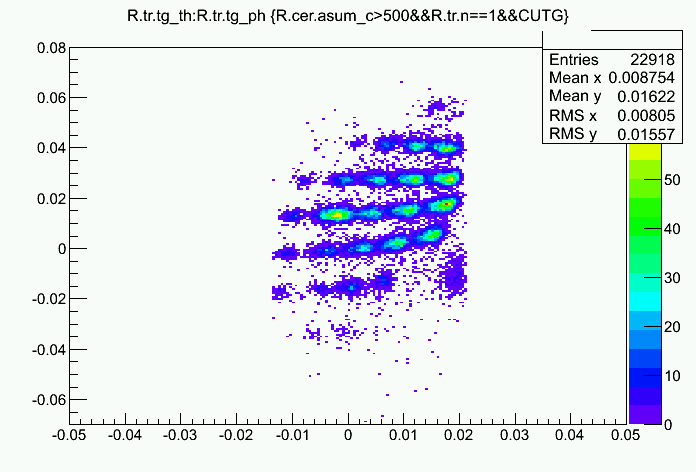

+3.5% after
