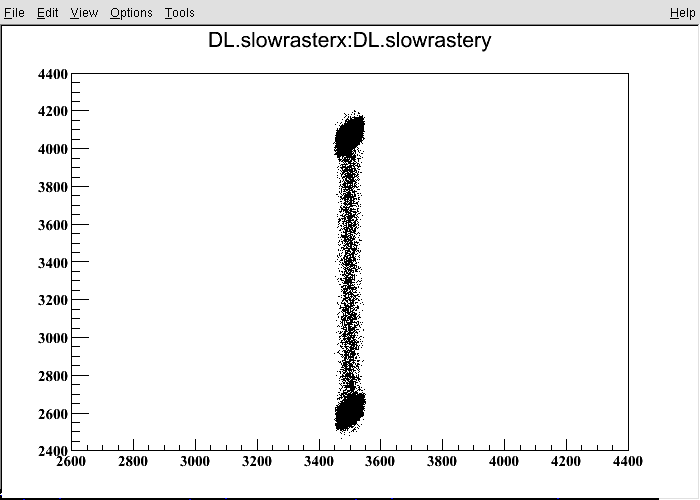

keyword=Vertical beam position scan plotsWe set slow raster to oscilate between two points on y axis (vertical), and take data. (Figure1) This is to study the vertical beam position effect on optics reconstruction.

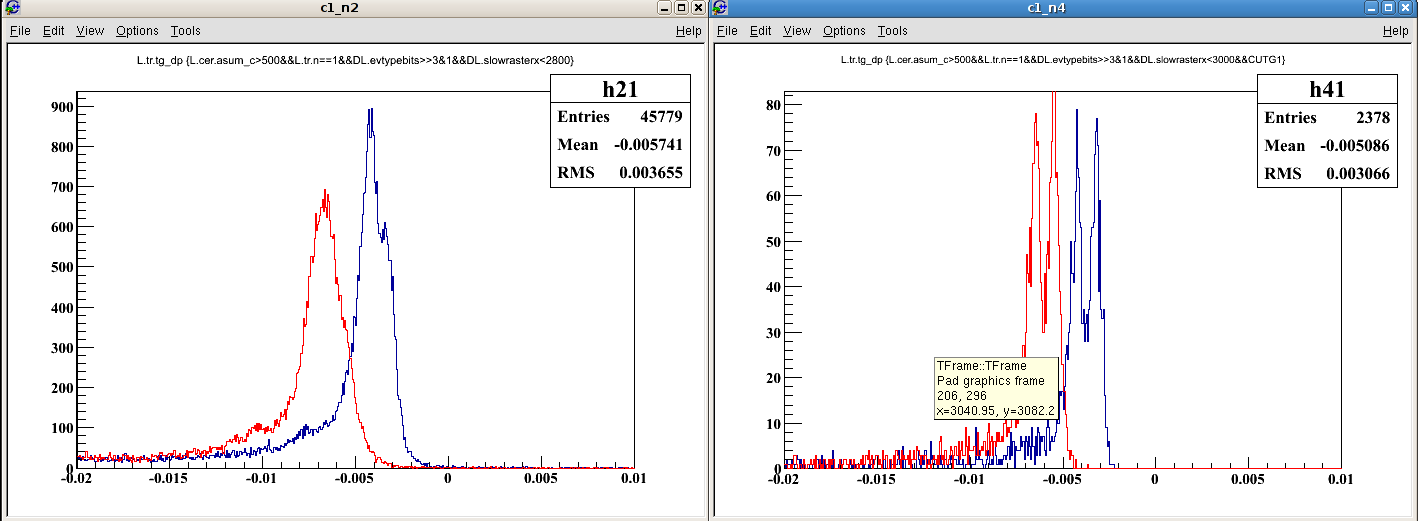

Figure 2 shows the resulting dp shift. Left is total dp distribution, right has a cut on central hole.
FIGURE 1
FIGURE 2
