    User name mhuang

    Log entry time 02:56:36 on April28,2012

    Entry number 379919

    This entry is a followup to: 379849

    keyword=Re: Wrong LHRS Q1 Setting

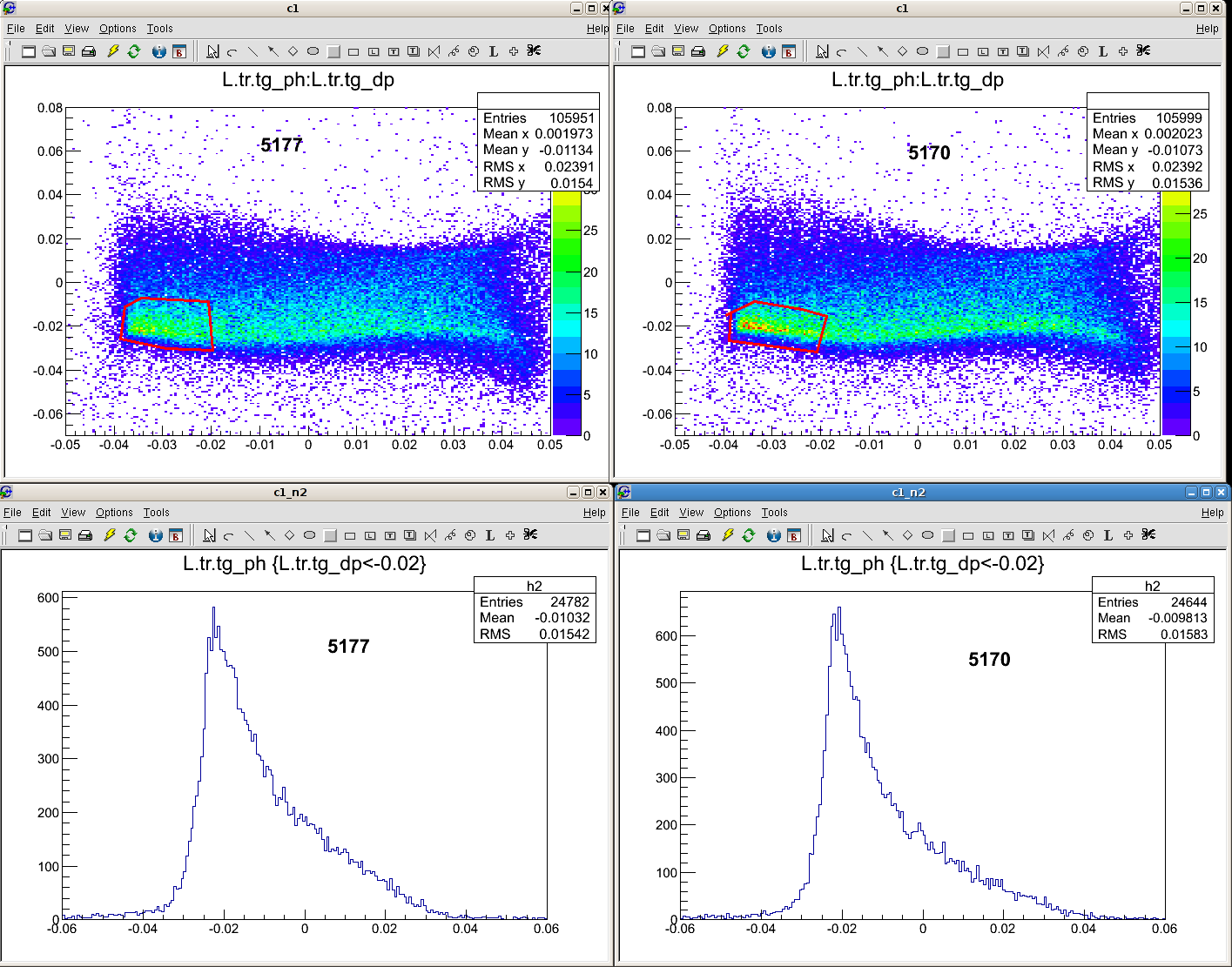

    Just one more plot about this. I compared different target variables vs. momentum from 5177 (correct Q1) and 5170(mismatched Q1), and only tg_phi vs. dp shows different distributions, esp. in the low momentum end.

    Bottom two pads show tg_phi distributions after zoom in the red circled dp.


    FIGURE 1
