Make New Entry, Make Followup Entry
User name A. Camsonne
Log entry time 22:21:25 on May13,2012
Entry number 384732
Followups:
keyword=BCM channel B stuck at 65535Channel B is stuck at 65535, I changed its calibration constant to 0.0000059 so it does not got into current calculation.
for B :
slope 0.0046875 offset -1
New values for B : slope 0.0000059 and offset 0
Channel A is unchanged and gives the right current, the current on the Hall A Wall is (Channel A + 0 )/2 so half of the current

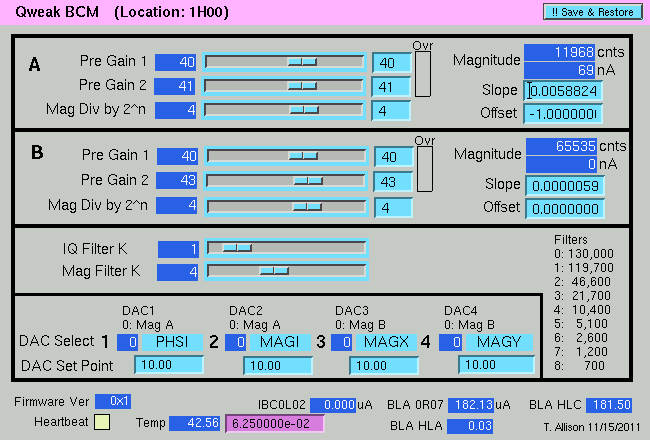

FIGURE 1
FIGURE 2
