User name V. Sulkosky
Log entry time 23:01:44 on October27,2007
Entry number 209985

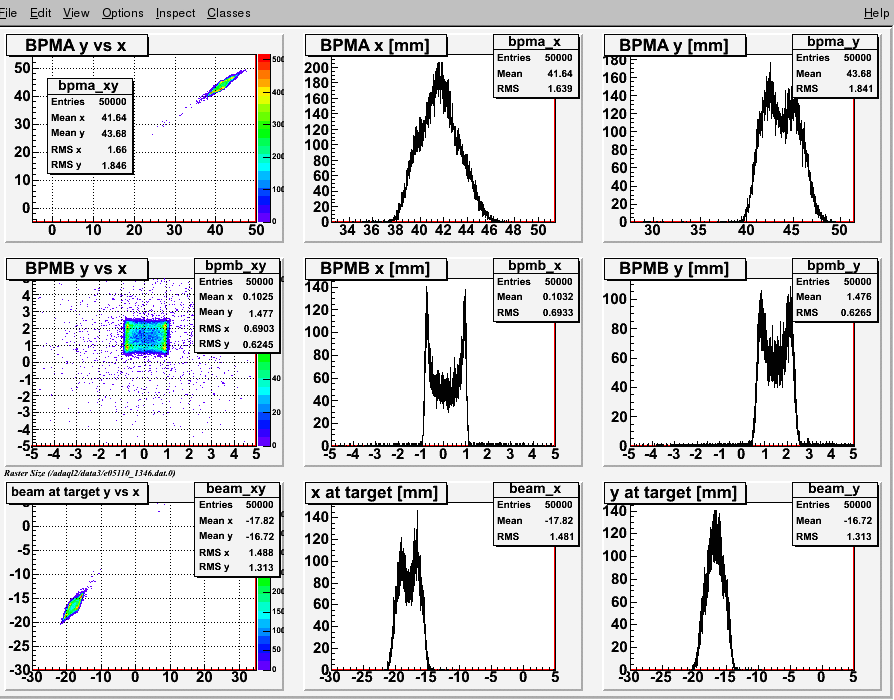

keyword=Left BPM/Raster IIFigure 1 shows the BPM plots from spot_L for run 1346 with beam.

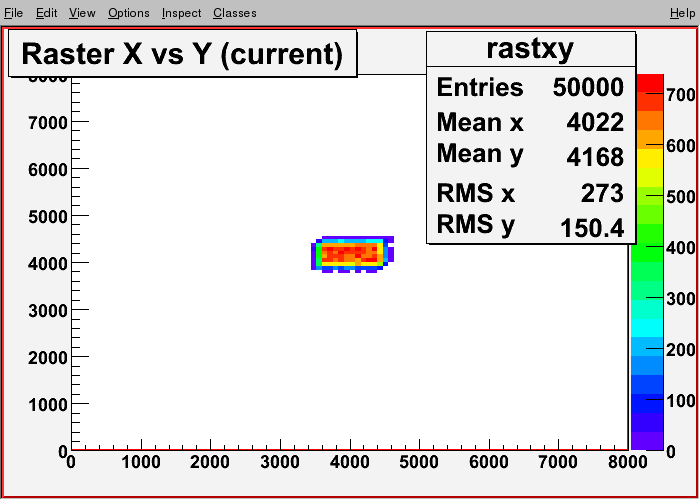

Figure 2 shows the raster currents for the same run number. BPMB and
the raster currents appear fine, but BPMA does not. During this run,
the beam position was centered at (0,1.5), which is close to what
BMPB shows.
The problem with BPMA could be due to needing a new calibration and
BPM pedestals. A bullseye scan was done the other day. I will
work on the analysis tomorrow.
In the meantime, we should find an opportune time to do the pedestals.
FIGURE 1
FIGURE 2
