User name brads
Log entry time 23:05:10 on October28,2007
Entry number 210312
This entry is a followup to: 210281
Followups:
keyword=Scaler rate stripcharts for Runs 20214, 1390 (He target)Scaler rate stripcharts for High pressure Helium target.
Run 20214 End Run: T1:1017.6/3052.7 Hz T2:82.9/165.8 Hz
Run 1390 End Run: T3:1491.6/5966.3 Hz T4:98.3/295.0 Hz
The T1 from the Left arm scalers doesn't look much like the T1 in the Right arm scalers. Is this a feature or a bug? (What is really plugged into the T1 on the Left arm? Is the map file wrong?)

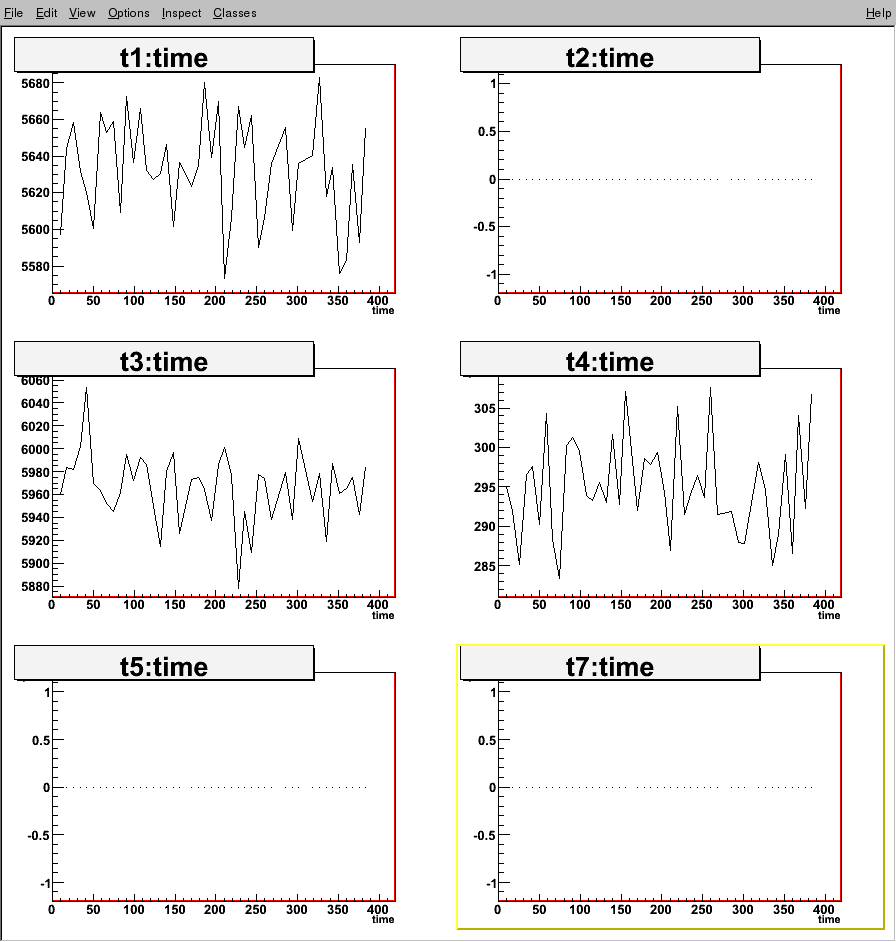

Figure 1: Run 1390 (LHRS)

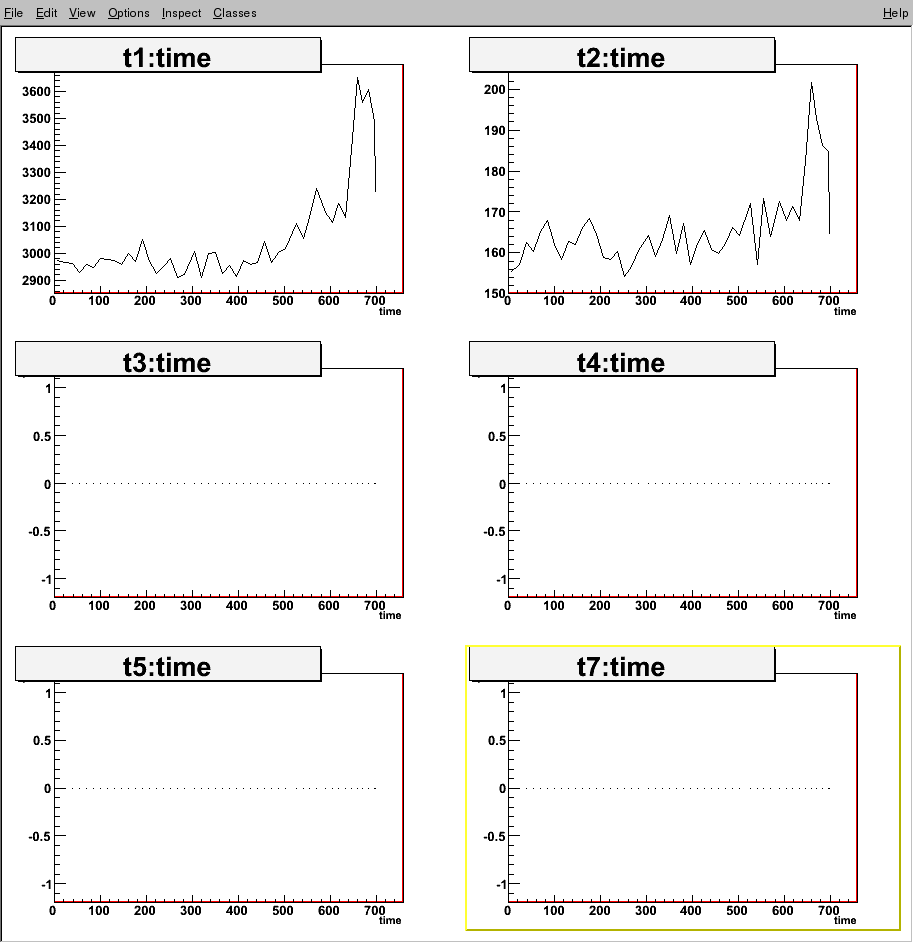

Figure 2: Run 20214 (RHRS)
FIGURE 1
FIGURE 2
