User name V. Sulkosky
Log entry time 18:57:25 on November 14, 2008
Entry number 248786
keyword=Re: ADC Spectra with T3 and T5I checked the ADC spectra from the left HRS with a cut on T3 (black) and a
cut on T5 (red) to make sure there are no timing differences between the
two triggers. I made the following spectra from run 3308. This run was
taken after we removed the additional delay to T3 on Tuesday.
The ADC spectra between the two triggers match well. I made a quick check
of the TDC spectra. Chiranjib will make the plots and post them this
weekend. My first check indicates the timing for T3 and T5 are right on
top of each other.
With Chiranjib's help, we will also check the data taken over last weekend
to see how the delay of T3 affected both ADC's and TDC's in the left HRS.
A copy of this log entry has been emailed to: kalyan,xqian,jiang,jpchen

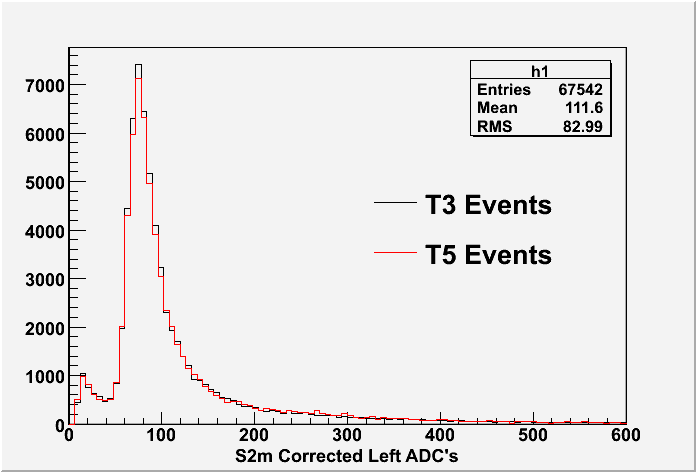

Figure 1

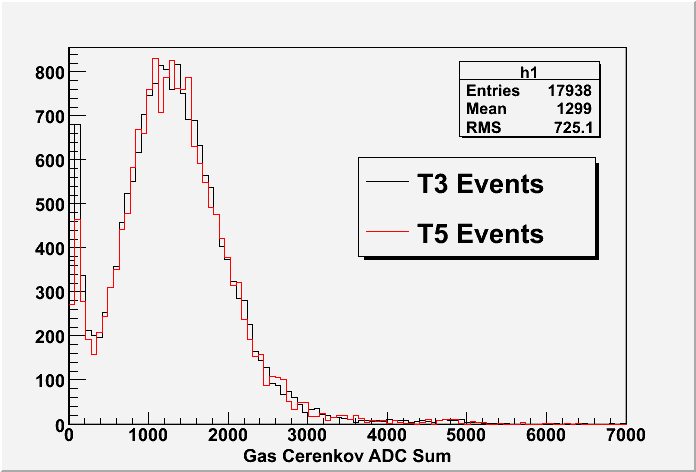

Figure 2

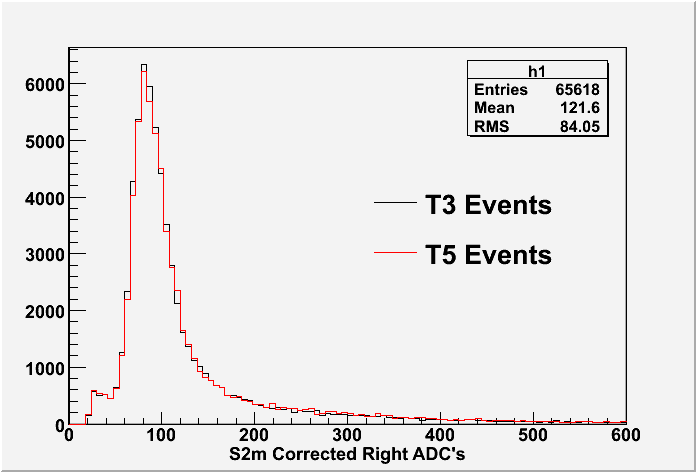

Figure 3
