User name Chiranjib
Log entry time 15:56:50 on January 11, 2009
Entry number 255466
keyword=Internal Temperature TestAn internal temperature test is performed on the cell BRADY.
Holding field = Transverse -
Pumping = -
Frequency sweep NMR done on pumping chamber
NMR RF = Longitudinal
NMR pick up on Pumping chamber = Vertical
**************************************************************
DATA :: C:\HappyValentine\NMR\Data\NMR_Freq_He_20090111_151454
**************************************************************
First NMR with Laser ON :::
Temp. are ===> 38.8574,51.4941,97.5879,57.0605,36.9141,254.531,302.637(=266)
--------------------------------------------------------------
Second NMR with Laser OFF :::
Temp. are ===> 38.4277,51.1719,92.5879,57.1973,36.5918,214.453,246.68(=??)
---------------------------------------------------------------
Third NMR with Laser ON again :::
Temp. are ===> 38.8672,51.7871,98.2031,57.5195,36.4941,255.762,303.516(=267)
*****************************************************************
NOTE :: The temp. values are only for the record for the analysis later.
Anyone looking into the readings doesn't have to waste time on
"why and how" at this moment because we have problems with one RTDs on
the pumping chamber anyway and we will take into account the offset and
correct for it later.
A copy of this log entry has been emailed to: jpchen,yqiang
Figure 1 : Laser ON ( NMR 1)

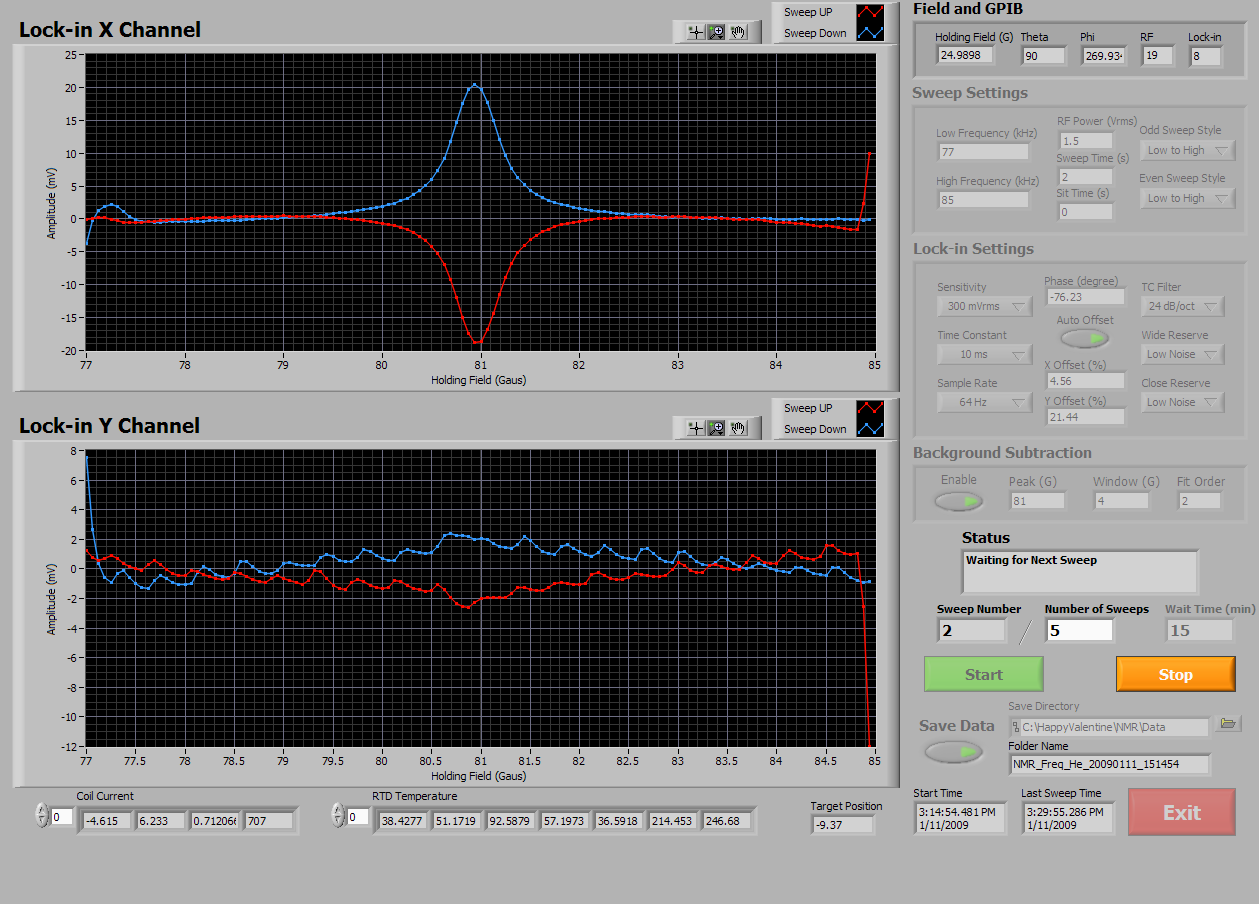

Figure 2 : Laser OFF ( NMR 2)

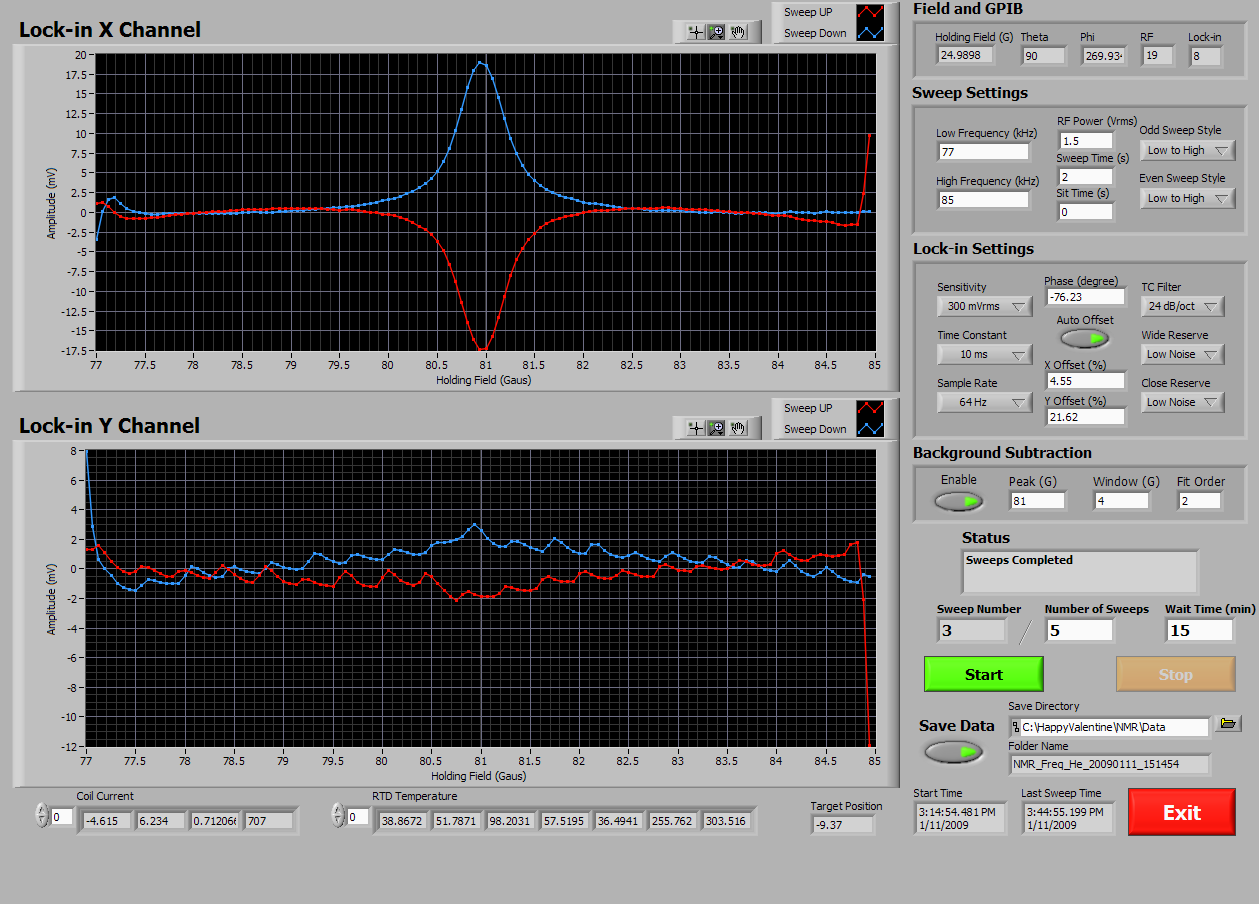

Figure 3 : Laser ON ( NMR 3)
