Make New Entry, Make Followup Entry
User name Yi/Chiranjib
Log entry time 11:50:40 on January 20, 2009
Entry number 256919
keyword=EPR for Vertical Anti-parallel Pumping************************************************************ DATA ::: C:\HappyValentine\EPR\Data\EPR_AFP_20090120_1141 Polarization = 64.7 % Calib Constant = 4.45 %/mV Cell = Brady Holding field = Vertical + Pumping Direction = Anti-Parallel ************************************************************
The D2 light of vertical pumping is kind of weak, so we have to boost the
RF quite a lot to get the EPR measurement done. Fortunately, the
calibration constants from both pumping directions (parallel vs
anti-parallel) are consistent in the level of 2%, therefore we can rely
on parallel measurement only in the future.
A copy of this log entry has been emailed to: jpchen, jinhuang

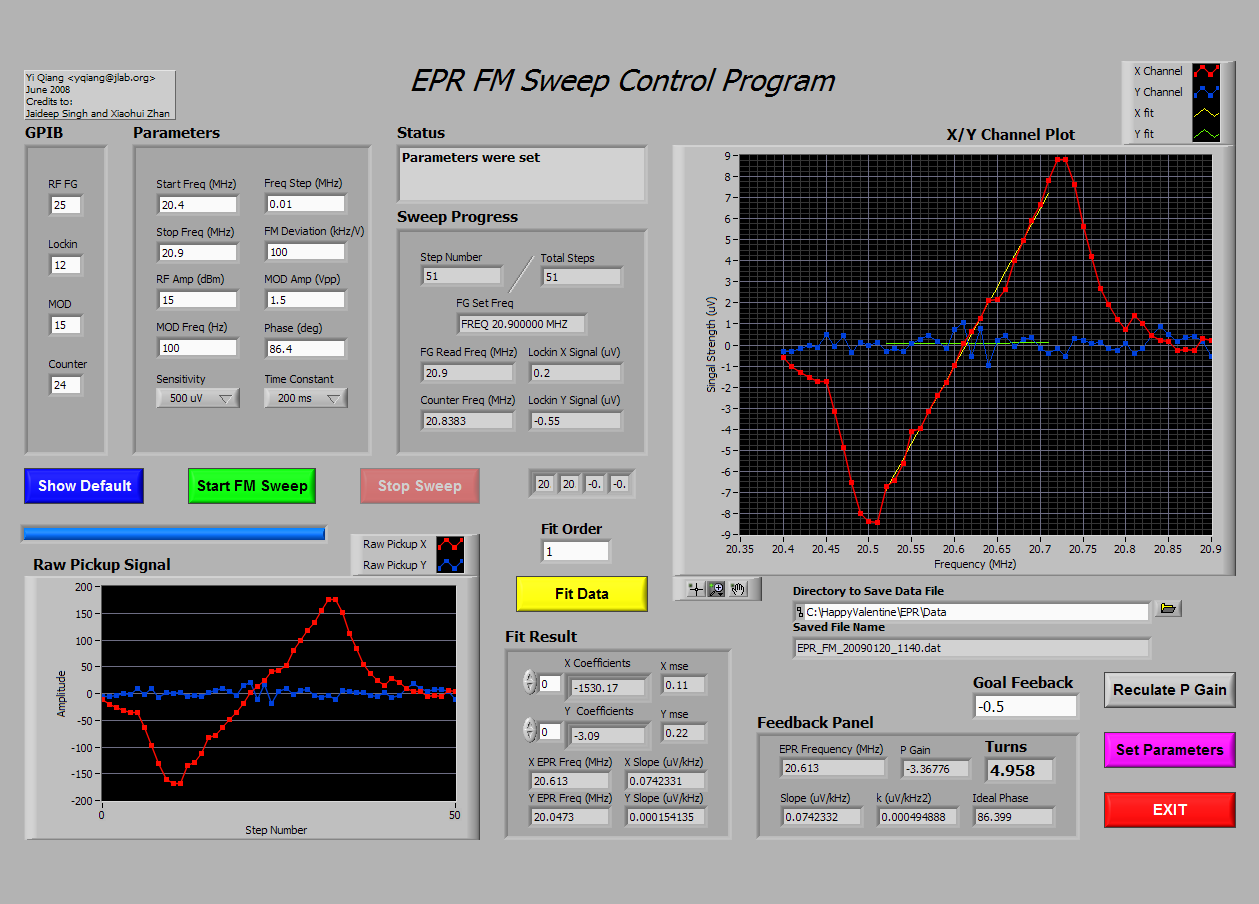

Figure 1

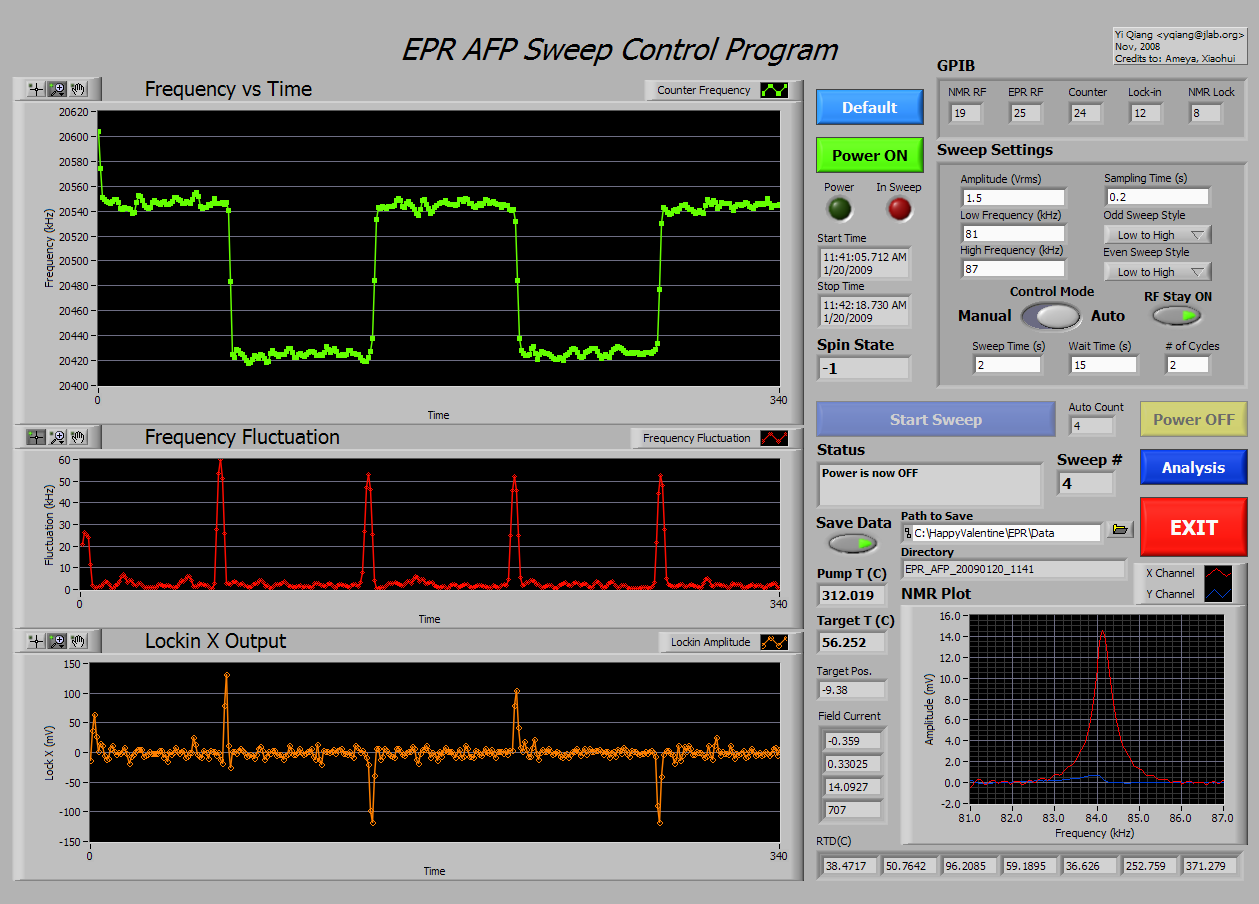

Figure 2
Figure 3
