User name Yi/Chiranjib
Log entry time 11:51:22 on January 20, 2009
Entry number 256920
keyword=EPR for Vertical Anti-parallel Pumping************************************************************
DATA ::: C:\HappyValentine\EPR\Data\EPR_AFP_20090120_1141
Polarization = 64.7 %
Calib Constant = 4.45 %/mV
Cell = Brady
Holding field = Vertical +
Pumping Direction = Anti-Parallel
************************************************************
The D2 light of vertical pumping is kind of weak, so we have to boost the
RF quite a lot to get the EPR measurement done. Fortunately, the
calibration constants from both pumping directions (parallel vs
anti-parallel) are consistent in the level of 2%, therefore we can rely
on parallel measurement only in the future.

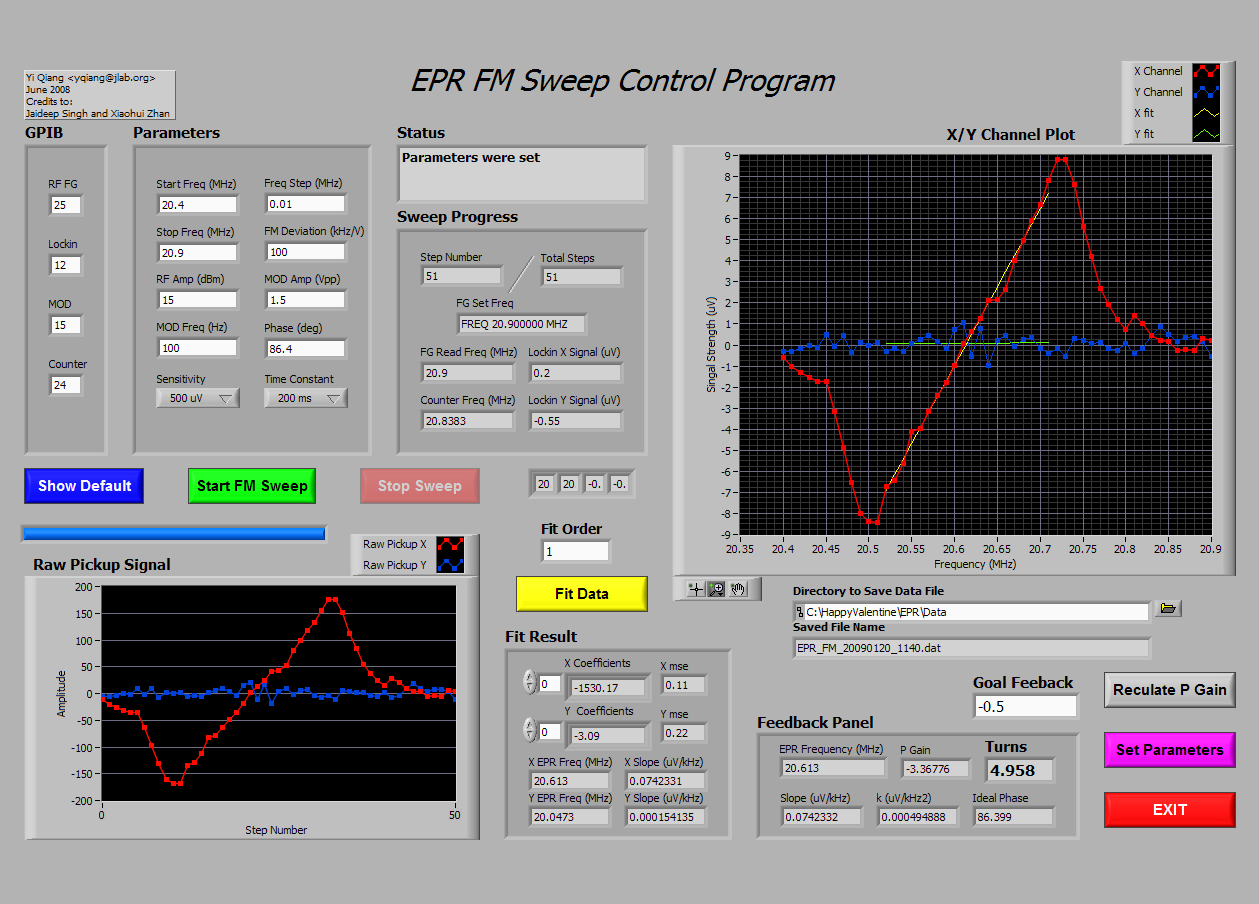

Figure 1

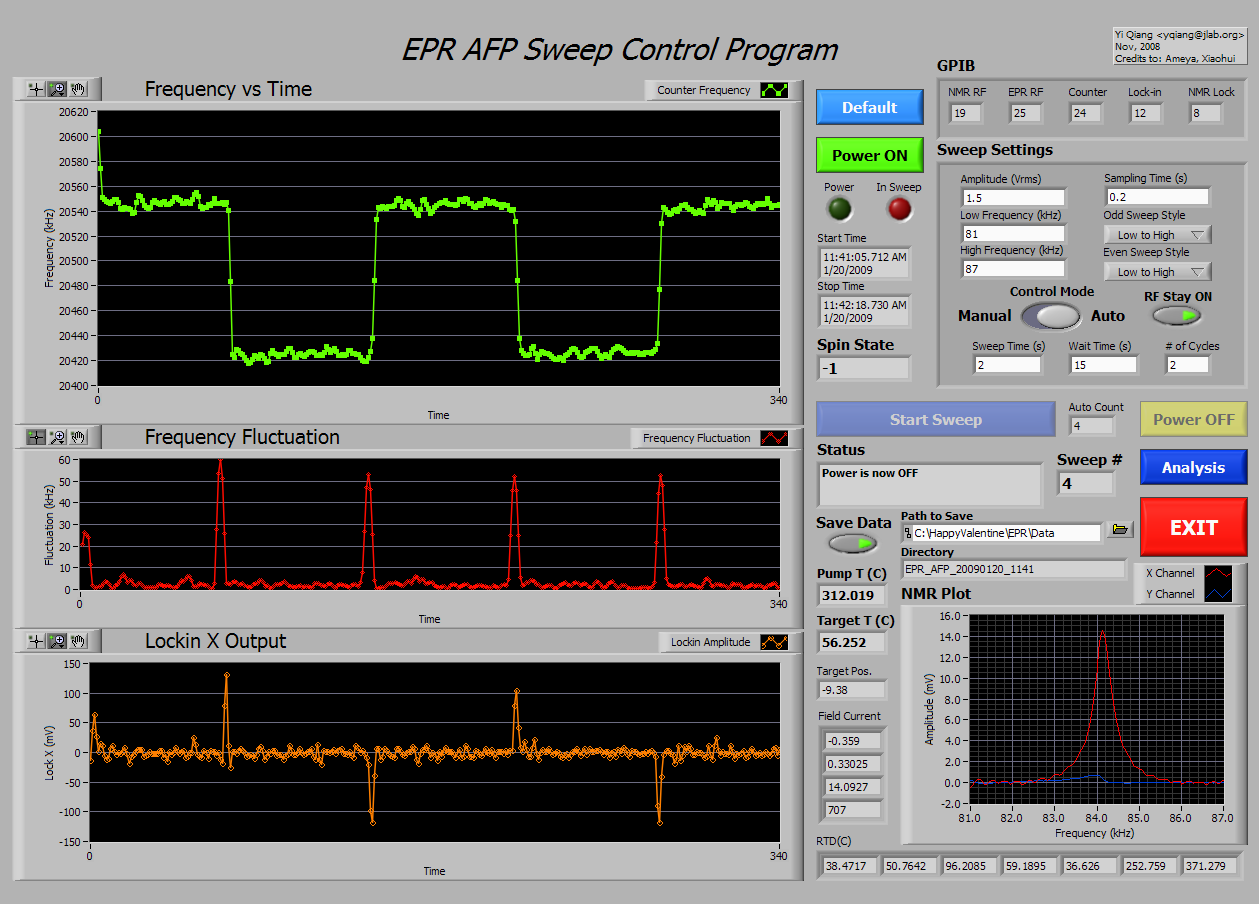

Figure 2

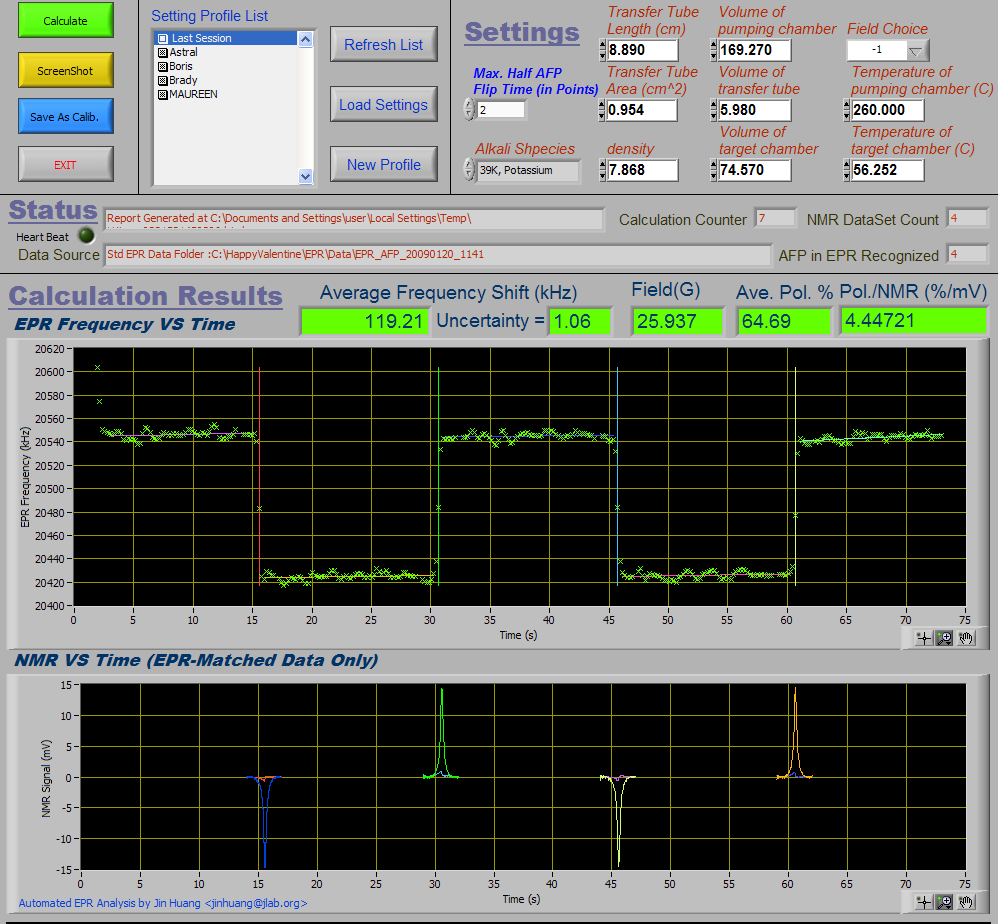

Figure 3
