User name Chiranjib/yi
Log entry time 12:21:30 on January 20, 2009
Entry number 256931
keyword=NMR frequency / field sweep calibrationAn NMR Cross calibration has been performed to obtain calibration
constant between production NMR and water calibration.
* Cell: Brady
* Holding Field: Vertical +
* Pumping Direction: -
* NMR RF Coil: Longitudinal
* NMR Pumping Chamber Pickup Coil: Transverse
* Oven Temperature: 230C
STEP 1::: NMR Freq Sweep @ Vertical configuration ( He-3 position)
Data ID : NMR_Freq_He_20090120_115442
STEP 2::: Field -> Long. +; Target -> Pick up
STEP 3::: NMR Field Sweep @ Pickup
Data ID : NMR_He_200900120_120441
STEP 4::: Field -> Vertical +; Target -> he3
STEP 5::: NMR Freq Sweep @ Vertical config. again
Data ID : NMR_Freq_He_20090120_121308
A copy of this log entry has been emailed to: jpchen,jinhuang
Figure 1 :: First Freq. sweep

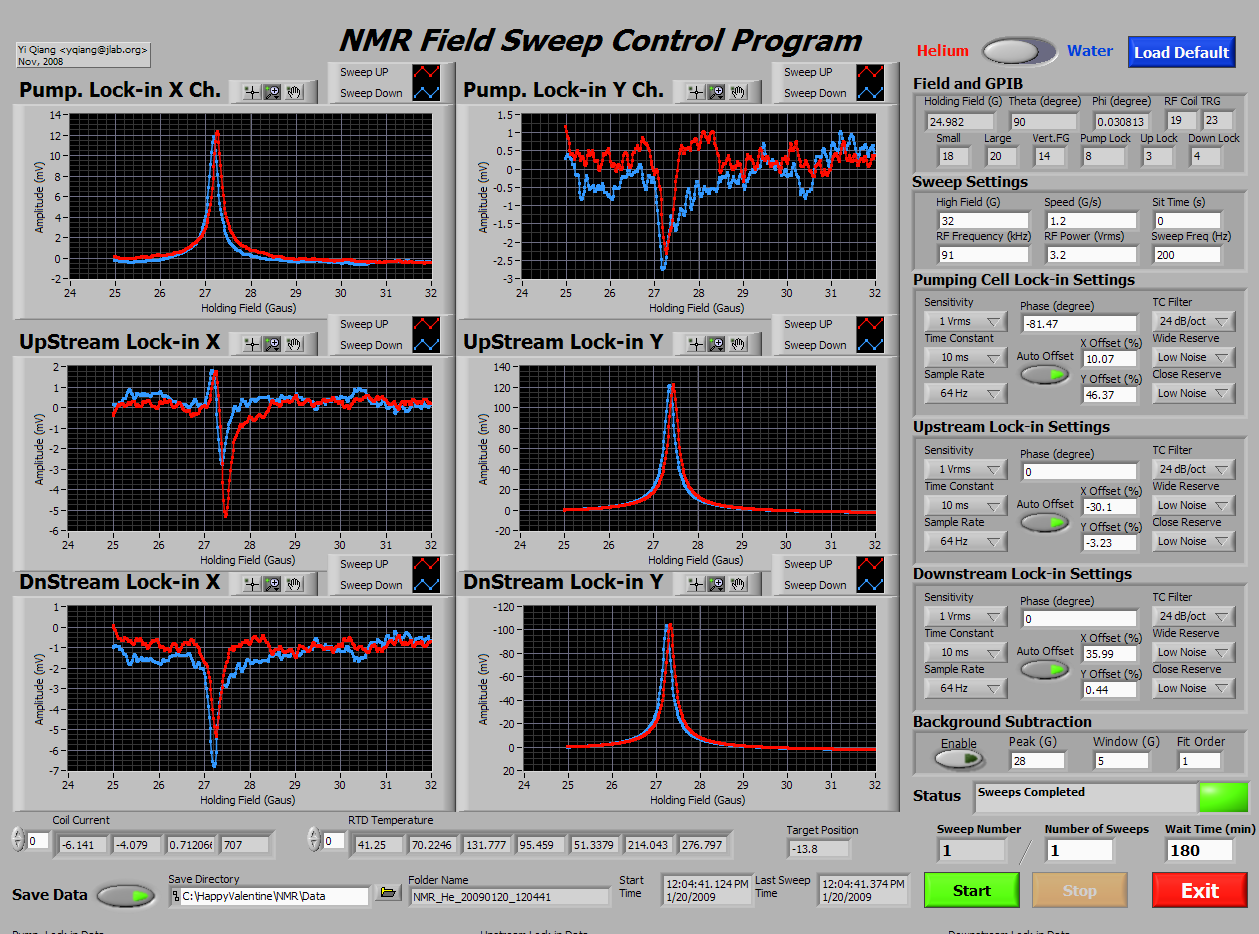

Figure 2::: Field sweep

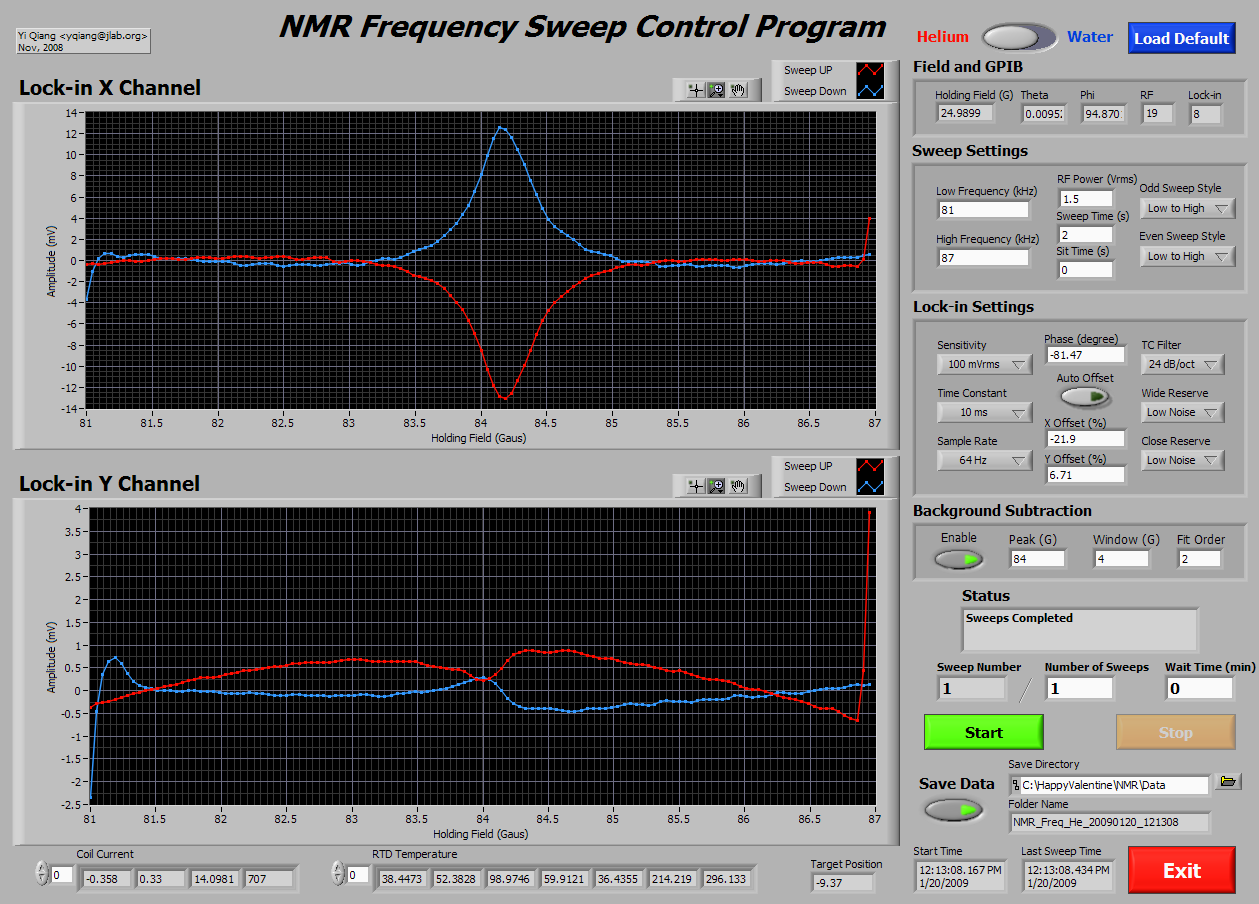

Figure 3::: Second Freq. sweep
