    User name Jin

    Log entry time 23:18:25 on February 3,2009

    Entry number 258833


    keyword=Beam Energy Fluctuating

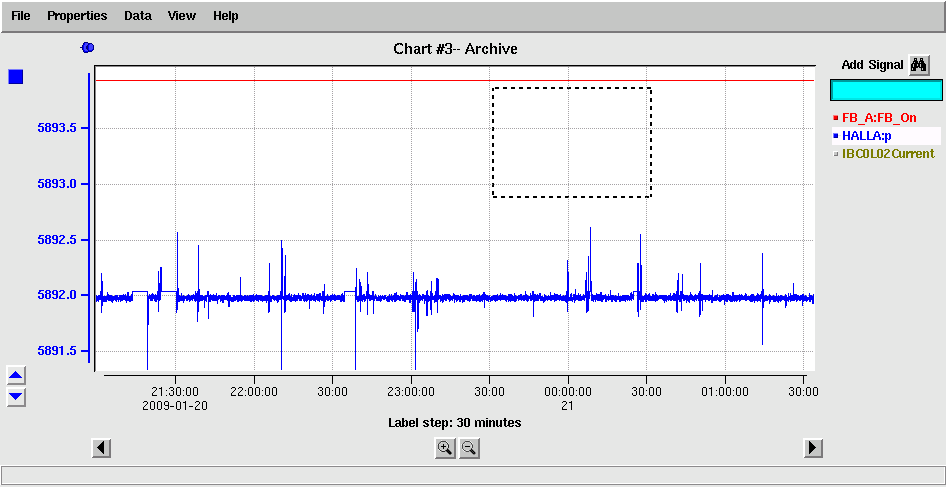

    The first plot below is screen shot of current beam energy. It's drifting on the level of 1MeV. The Hall A energy lock is ON, therefore the number is not supposed to be drifting.

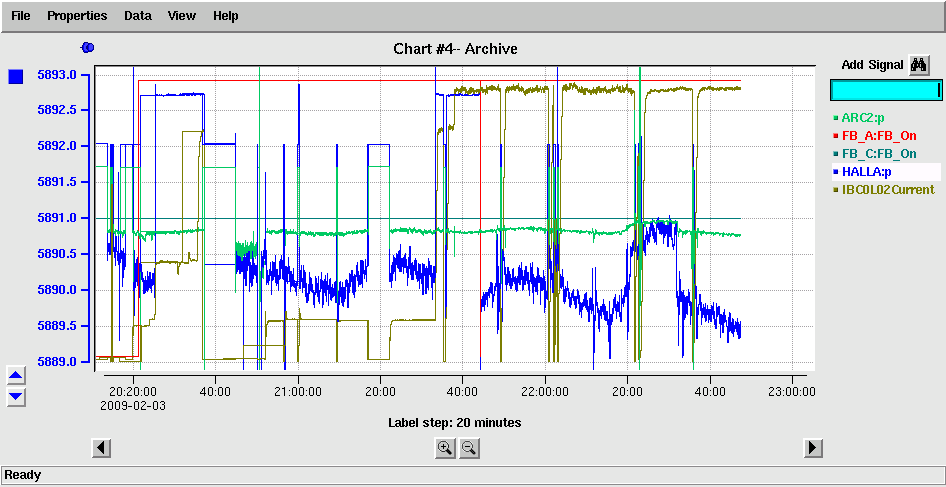

    As a comparison , the second plot is the beam energy read back in last production period (constantly stable for days).

    FIGURE 1

    FIGURE 2
