    User name Kalyan

    Log entry time 01:30:38 on February 08, 2009

    Entry number 259657

    keyword=Shower and preshower check

    Here are some plots for run 1080.

    All plots are generated with T2 triggers and cut off edtm pulser.

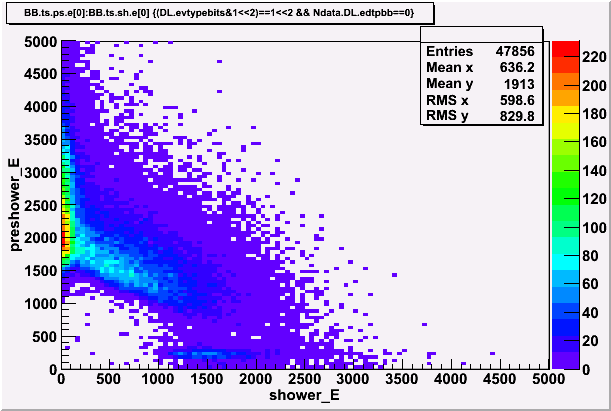

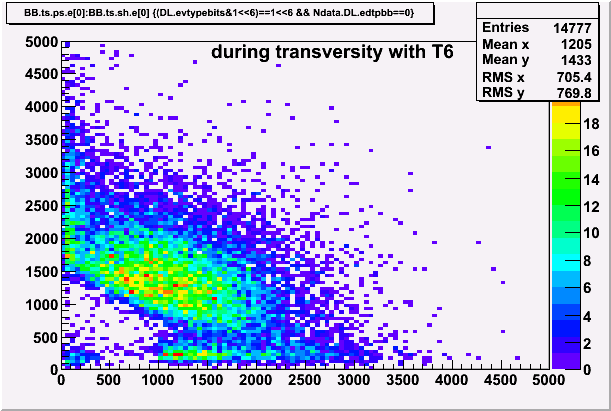

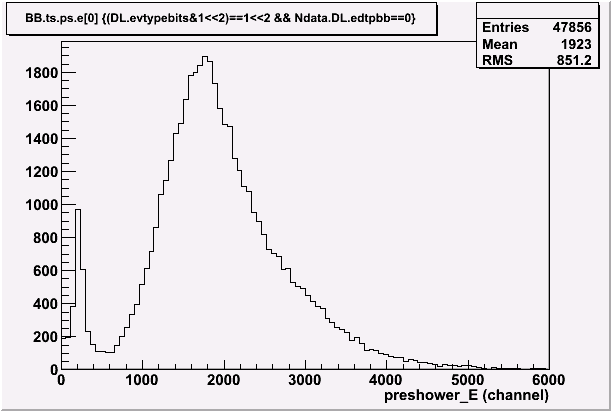

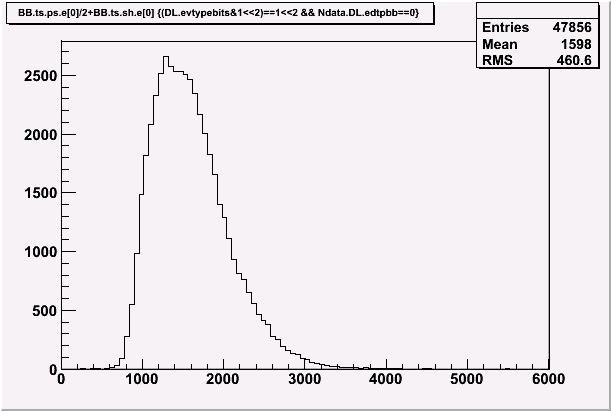

    1. Total energy deposited (sh+ps) 2. Preshower energy 3. Preshower vs shower 4. Preshower vs shower during transversity (run 5866)

    Shower threshold for T2 is set 500MeV which was close to what it was on T6(~450MeV) during transversity.

    The correlation between Ps and Sh (plot3) energy doesn't look the same as transversity run (plot4). There are lot more events with low energy in shower when there is high energy deposited in pre-shower. I would expect a large pre-shower signal to show a large signal in shower too, most of the time(for electrons).

    Figure 1

    Figure 2

    Figure 3

    Figure 4
