    User name V. Sulkosky

    Log entry time 15:58:45 on February 09, 2009

    Entry number 260028


    keyword=Synchronization Check of Left HRS ROCs and BigBite

    I have made several plots of synchronization checks of the left HRS and
    BigBite ROCs. The first figure is for the fast 103.5 kHz clock. The
    second figure the event type. The third and fourth figures are related to
    the event number and counts. The synchronization between ROC 3 and 4 on
    the left HRS compared to BigBite ROC's and each other looks good. Hence
    the ADC helicity problem and ROC 3 extra hits is probably due to a gate
    problem caused by the level-1 accept.

    A copy of this log entry has been emailed to: rom,brads.moffit,camsonne

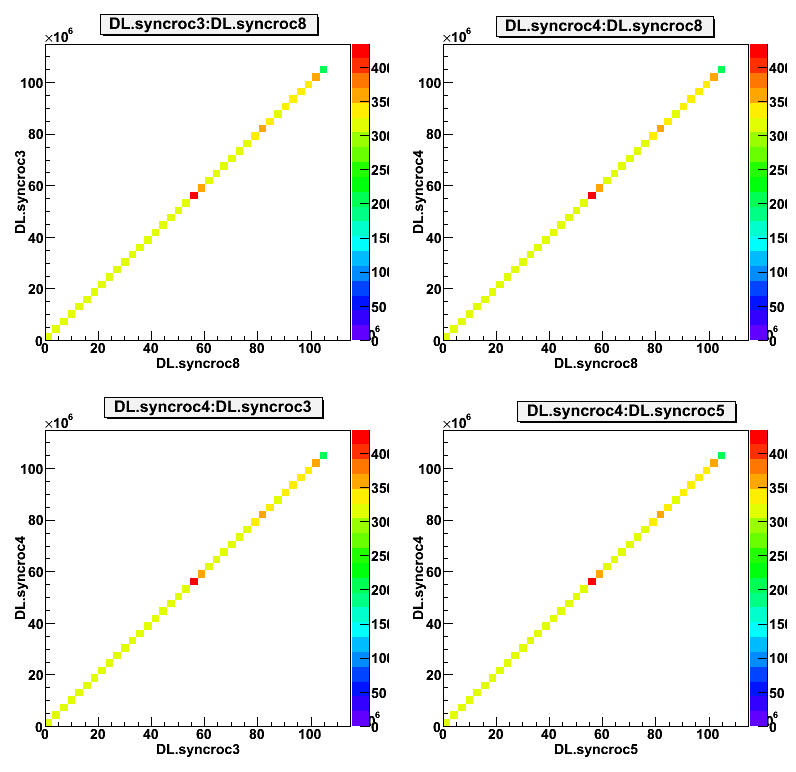

    Fast Clock Synchronization

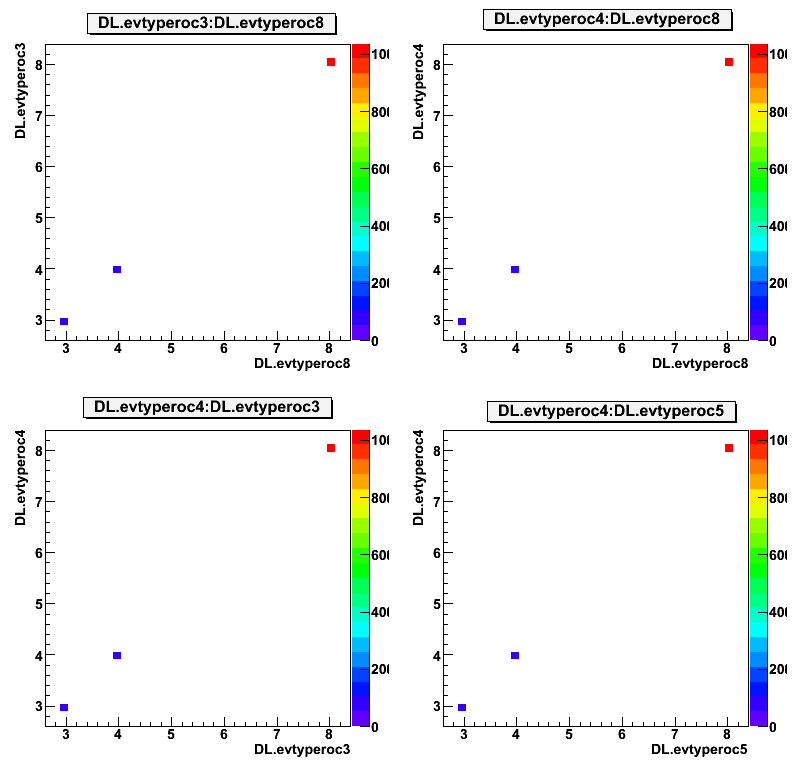

    Event Type Synchronization

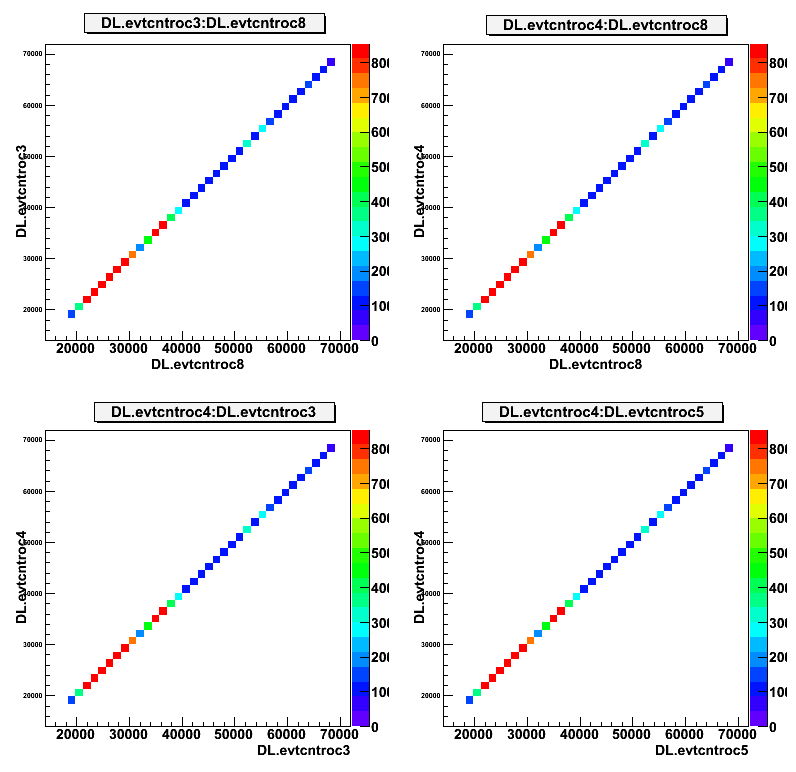

    Event Count Synchronization

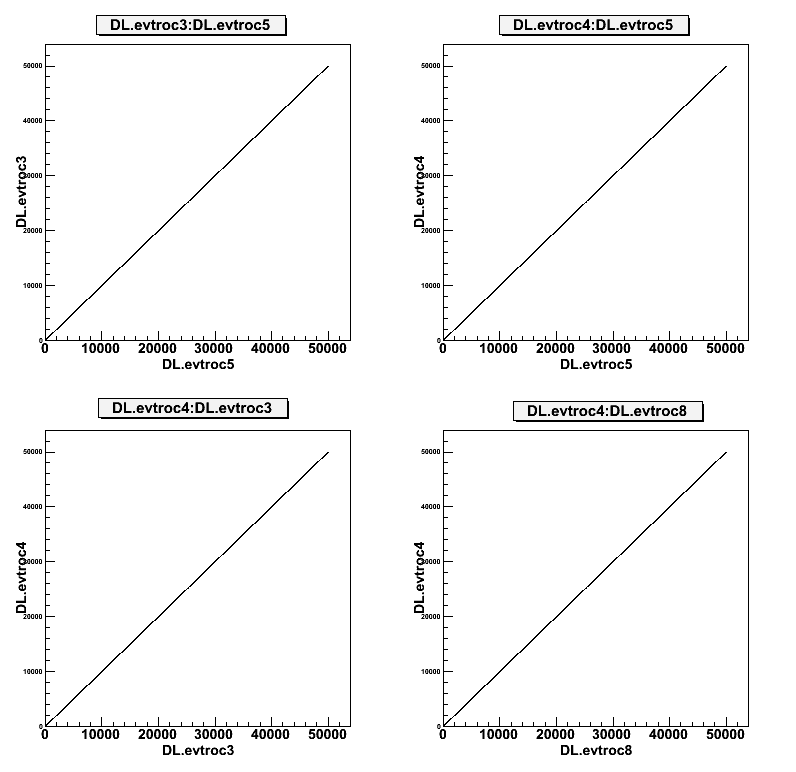

    Event Synchronization
