    User name V. Sulkosky

    Log entry time 02:59:11 on February12,2009

    Entry number 260570

    keyword=Harp Scan Results

    Harp scans results after a few hours of tuning. At first, the beam
    profile was focusing in X and defocusing in Y. It took some time to
    correct the focusing in X. It seems they were able to improve the
    beam profile after they made the spot bigger at Harp A.

    Final results:

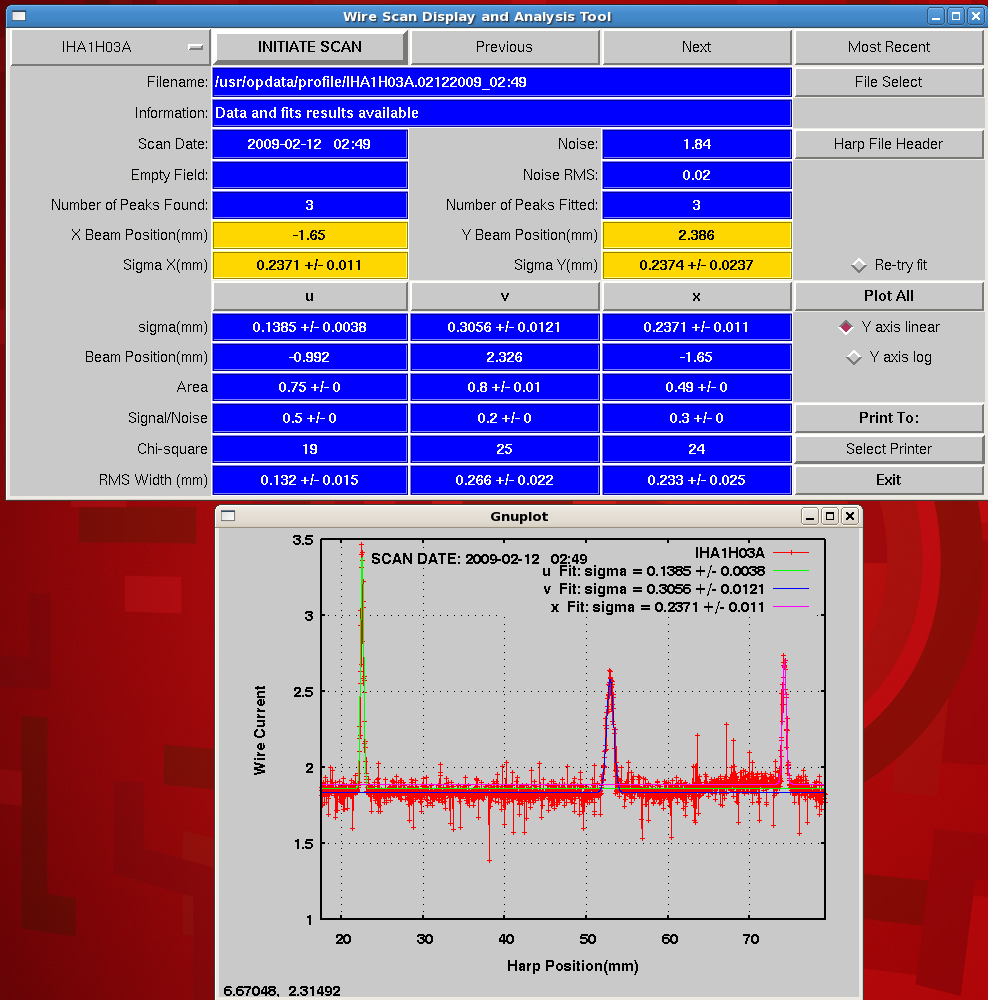

    Harp A: 237 um by 237 um
    Harp B: 224 um by 185 um

    FIGURE 1

    FIGURE 2
