User name V. Sulkosky
Log entry time 20:47:00 on February13,2009
Entry number 260973
keyword=BigBite GC HV AdjustedWith Bogdan, Albert and Brads help, we adjusted the single

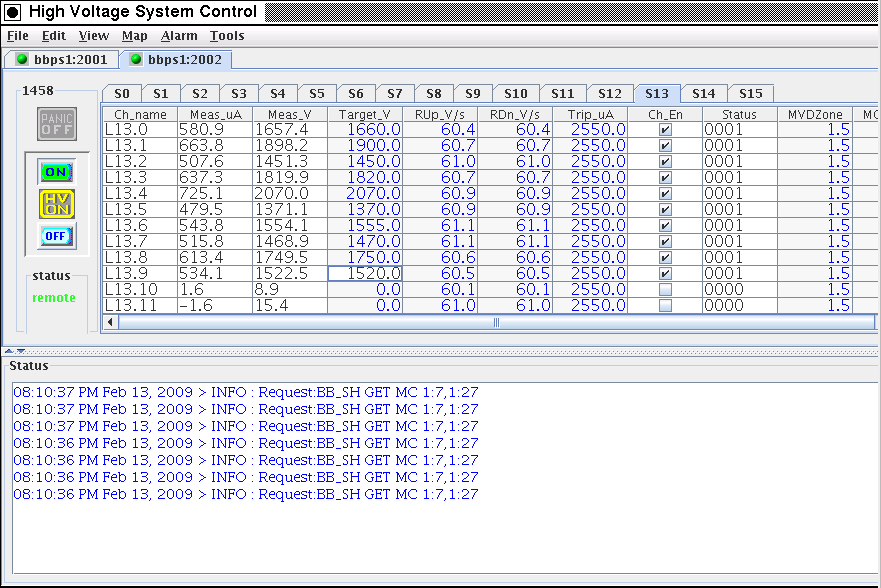

photoelectron peaks to 50 mV. Figure 1 shows the HV's for the beam

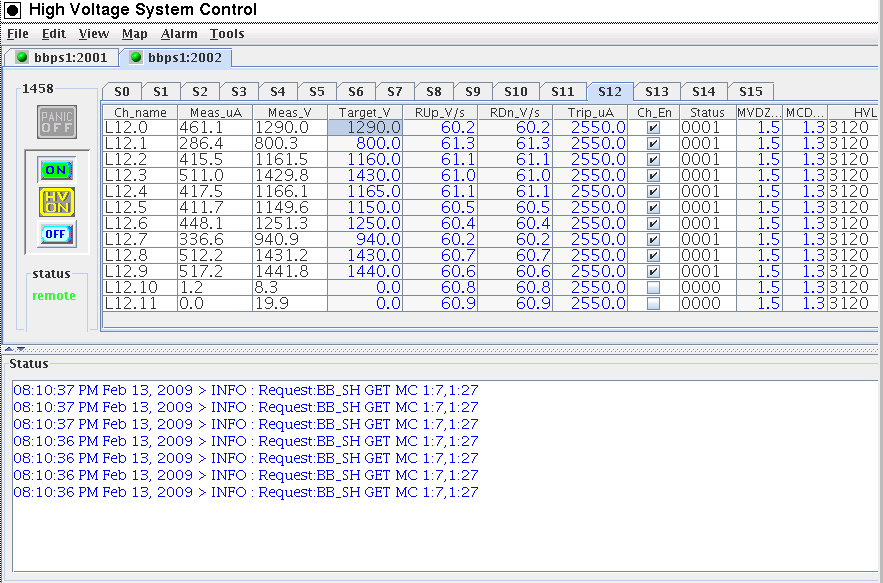

left side (small angle) PMT's and Figure 2 shows the HV's for the
beam right side (large angle) PMT's.
PMT # 12 shows ringing even before the amplifier. PMT # 19 shows a
large range of amplitudes indicating a bad PMT.
FIGURE 1
FIGURE 2
