User name E.Chudakov
Log entry time 22:49:55 on February 19, 2009
Entry number 262181
keyword=Moller resultsMoller results on Feb 19 20:45-22:40
- Crew: E.Chudakov, A.Glamazdin
- There was no energy lock for the first half of the measurement, and a lock in ARC2 using a tool called "PID" (told us by the MCC).
- The raster was ON.

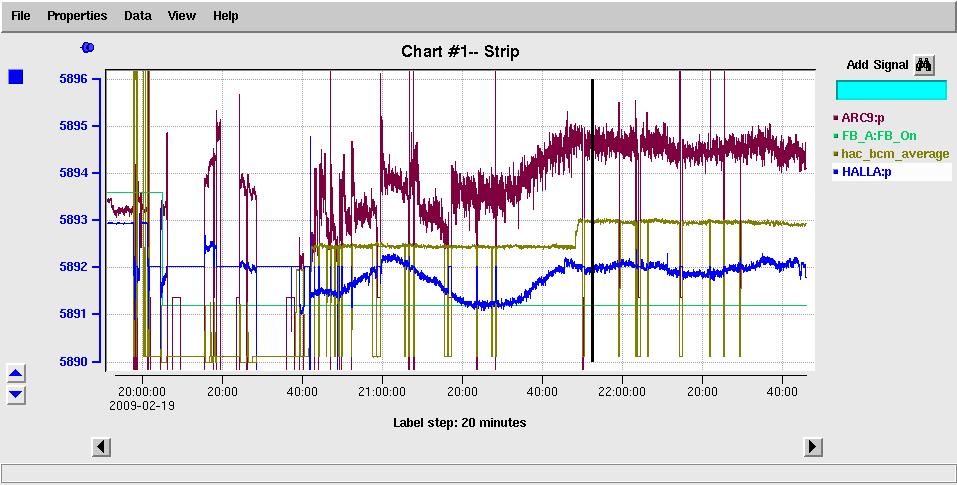

- For the beam energy current - see the chart attached.
| # | Wien angle | beam | runs | target | Ptarget% | Pbeam% | comments |
|---|---|---|---|---|---|---|---|
| 1 | 23° | 0.8 µA | 13193-13196 | 5 | 8.03 | -74.3±0.2±2.0 | |
| 2 | 23° | 0.8 µA | 13197-13200 | 4 | 7.51 | -73.1±0.2±2.0 | |
| 3 | 23° | 1.0 µA | 13201-13204 | 5 | 8.03 | -74.8±0.2±2.0 | energy lock |
| 4 | 23° | 1.0 µA | 13206-13209 | 4 | 7.51 | -74.2±0.2±2.0 | energy lock |
| Aver. | 23° | 1.0 µA | 13201-13209 | 3-4 | - | -74.5±0.1±2.0 | energy lock |

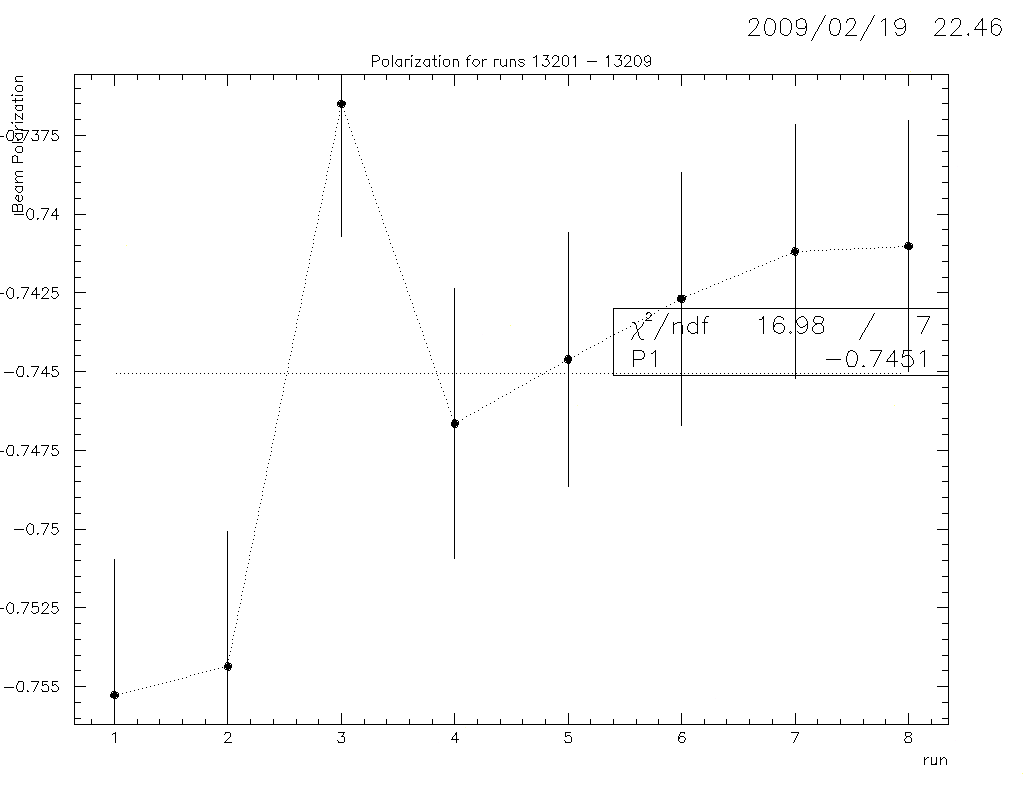

Figure 1
Figure 2
