    User name R. Michaels

    Log entry time 00:39:24 on February20,2009

    Entry number 262202

    keyword=re: run 1597 glitches

    I think the glitches seen in run 1597 (halog 262096) are due

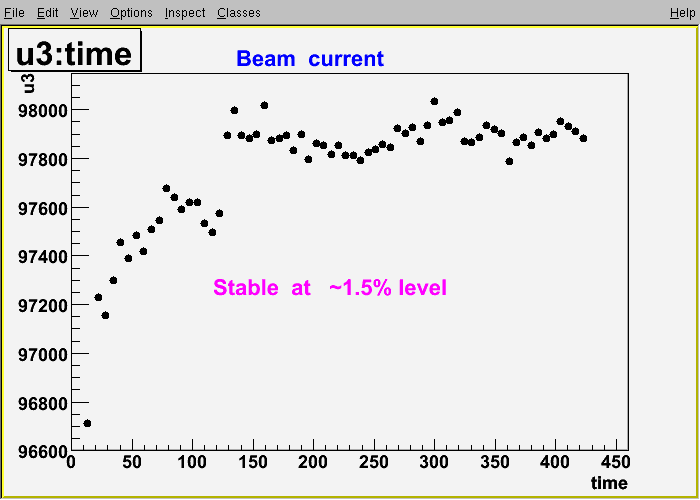

    to deadtime (see fig 1), while meanwhile the beam current was
    pretty stable (fig 2) meaning the trigger rate did not drop out.

    Why we're getting deadtime ? Per discussions with Moffit, the
    deadtime is probably caused by saturation of the network near
    bigbite. We might alleviate this by using N cables run in parallel
    to the switch in the mezinine. I'll investigate whether we can
    do anything on adaql2 side (using adaql2-192 may help).

    The DAQ rate was ~80 mbit /sec and the network is only 100 mbit/sec
    near the little switch that services several DAQ crates.

    This deadtime may cause fluctuations in the asymmetry unless one
    eliminates the periods.


    FIGURE 1

    FIGURE 2
