Log entry time 23:15:47 on February 27, 2009

Entry number 263768

Followups:

• 263890 02/28/09 16:52 Kalyan BCM calibration : OLO2 vs Left HRS scaler
• 264176 03/02/09 11:18 Kalyan Re: BCM Calibration: BCM1 and 2 vs 0L02 -- new plot

Here are the plots for 0L02 vs BCM1 and BCM2. I'll provide the
calibration with scaler data a bit later.

Log files: 1. BcmLog_139 ( 5, 10, 15 ,20uA)
           2. BcmLog_140 (30uA)

Run numbers: 1. 1521/20227
             2. 1522/20228

BCM1: 1. Slope = 4.778568e+01 +/- 1.462690e-01 (fig1)
         Intercept = 8.943287e-02 +/-  3.605462e-02

      2. Slope = 4.631423e+01 +/-  1.609793e+01 (fig2)
         Intercept = 1.386992e+00 +/-  1.013903e+01

BCM2: 1. Slope = 4.769273e+01 +/- 1.443517e-01  (fig1)
         Incercept = 1.744945e-02 +/-  3.598440e-02

      2. Slope = 4.716103e+01 +/- 1.643538e+01  (fig2)
         Incercept =  4.008099e-01 +/- 1.050904e+01

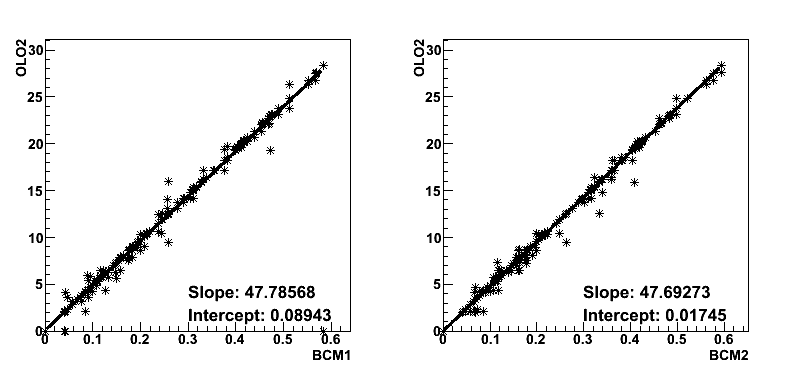

Figure 1

Figure 2
