keyword=New Pedestal values for the BB ADCsI have put new pedestal values for the BB ADCs
into the db_BB.tp.dat file (database 20090422):

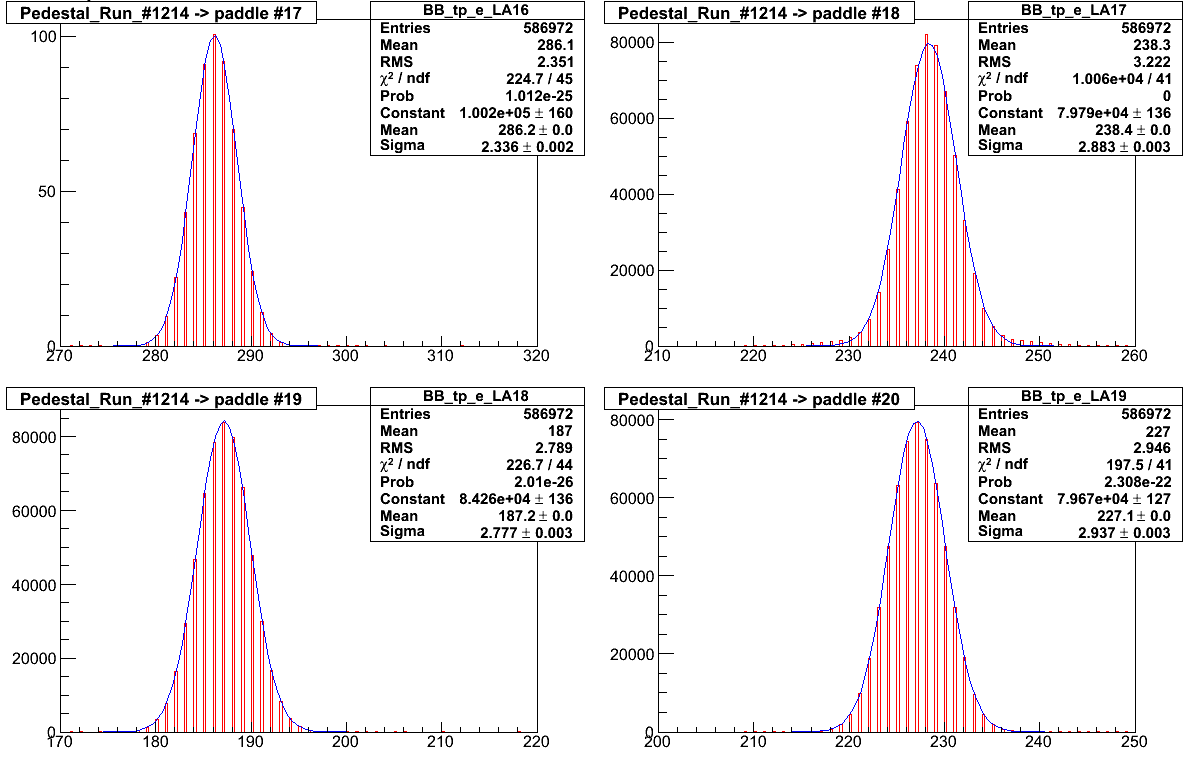

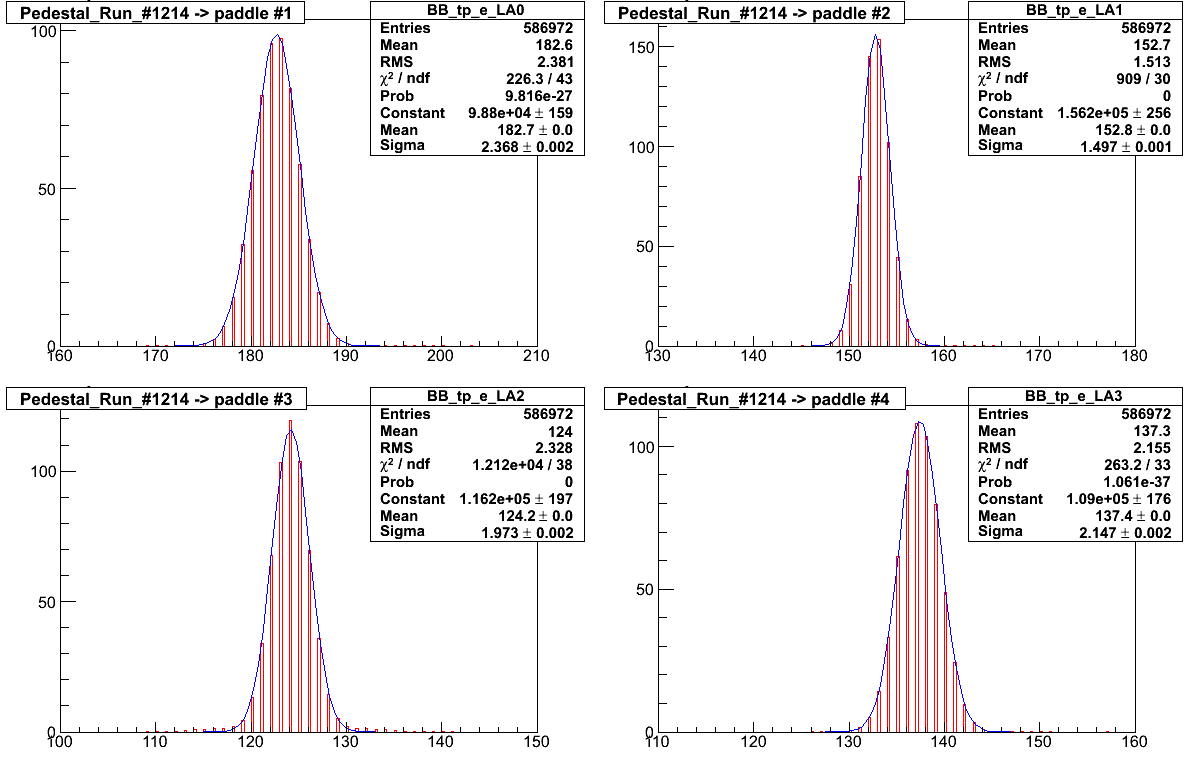

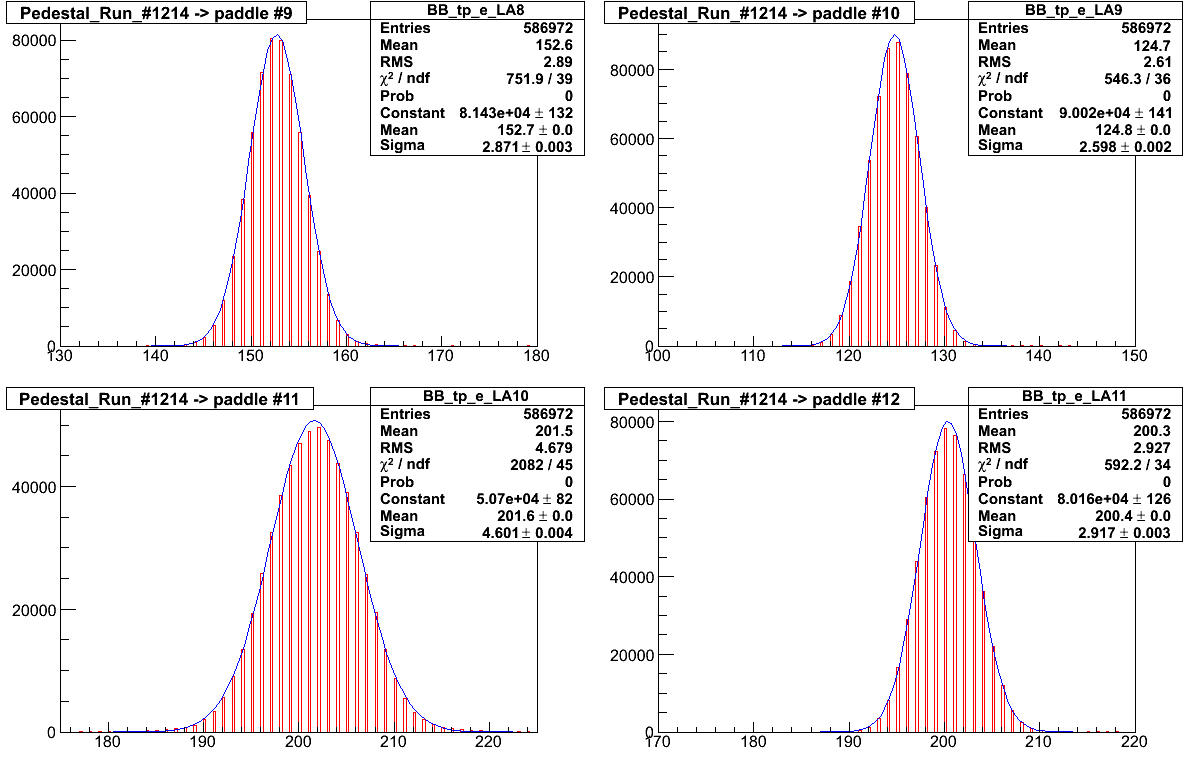

[ BB.tp.e.left_pedestals ]
182.677 152.780 124.161 137.427
125.021 146.594 153.248 126.654
152.689 124.788 201.621 200.381
192.873 141.470 147.638 196.307
286.174 238.374 187.152 227.130
163.785 224.934 232.066 223.115

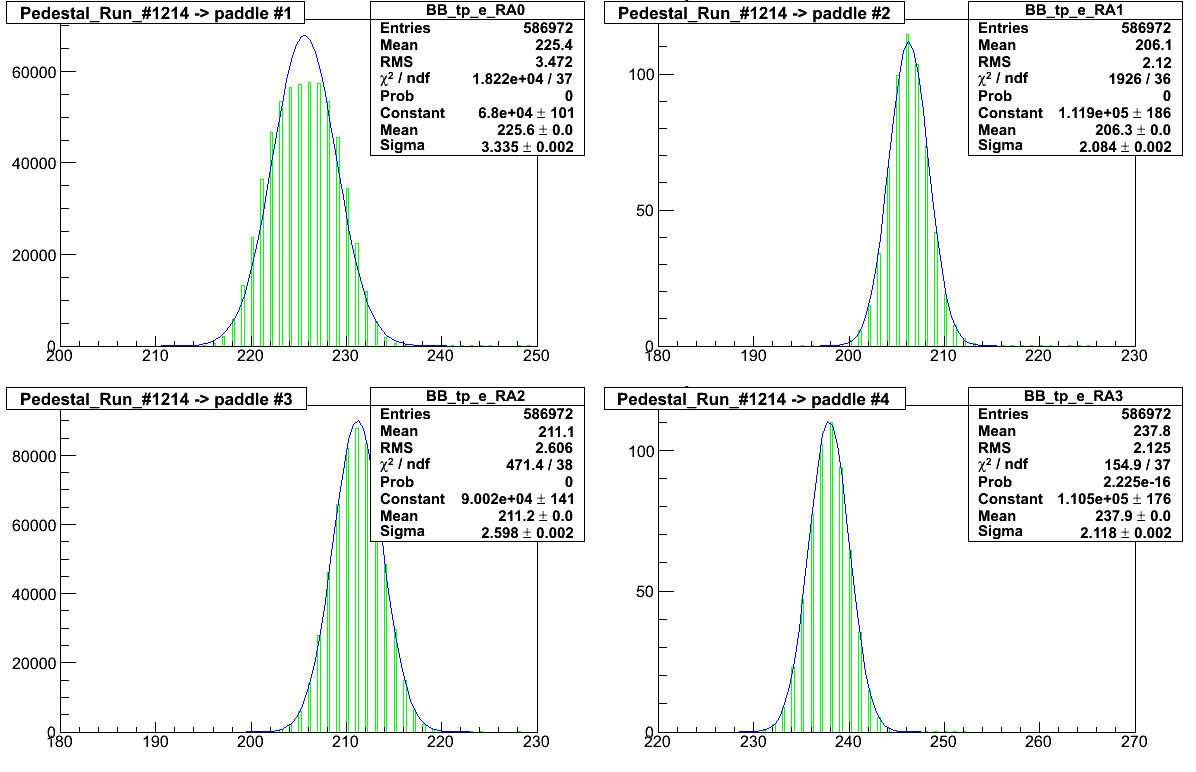

[ BB.tp.e.right_pedestals ]
225.599 206.255 211.177 237.898
229.474 219.869 201.265 131.560
128.451 222.030 214.192 166.908
228.053 213.533 209.356 174.490
258.997 256.831 301.935 322.729
342.693 321.323 304.617 301.143

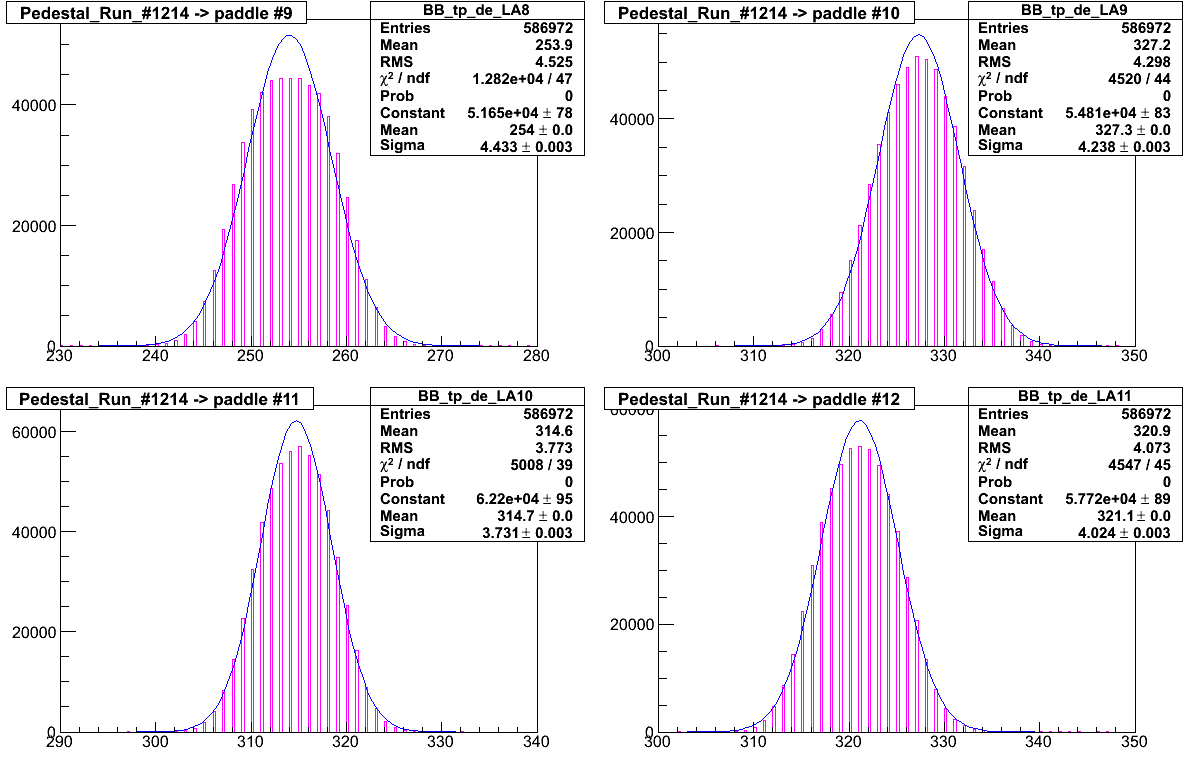

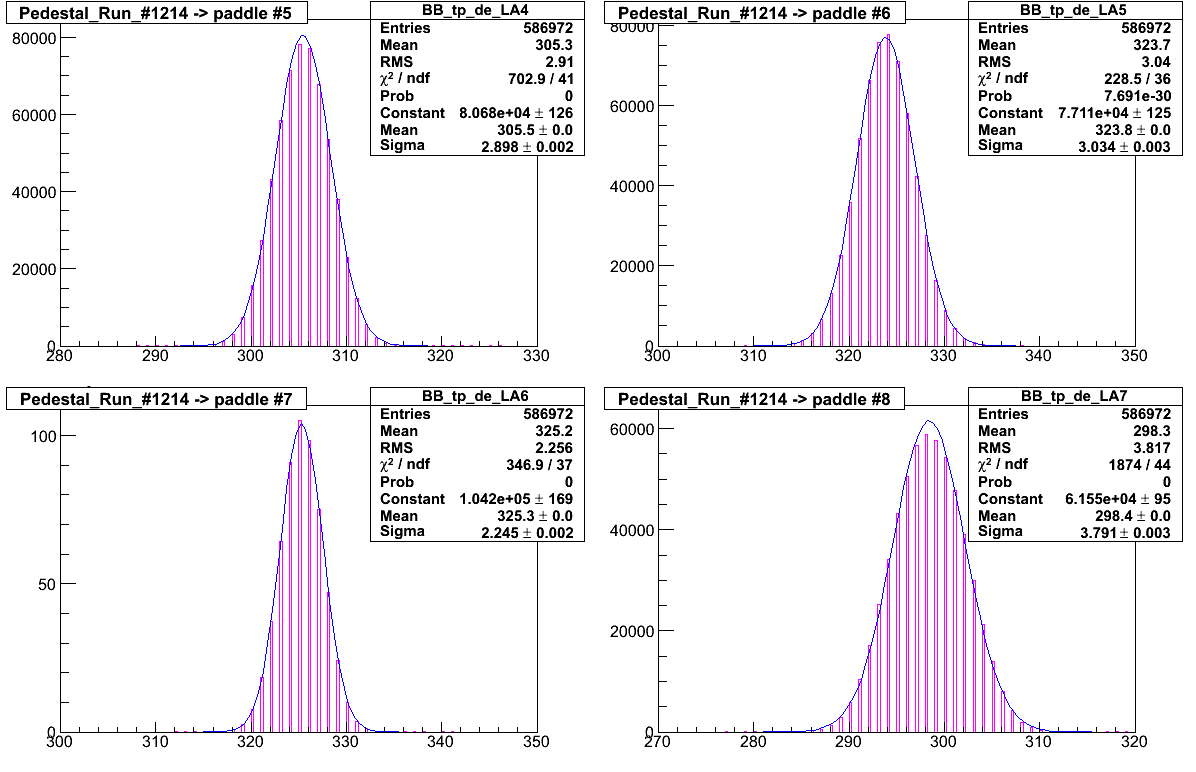

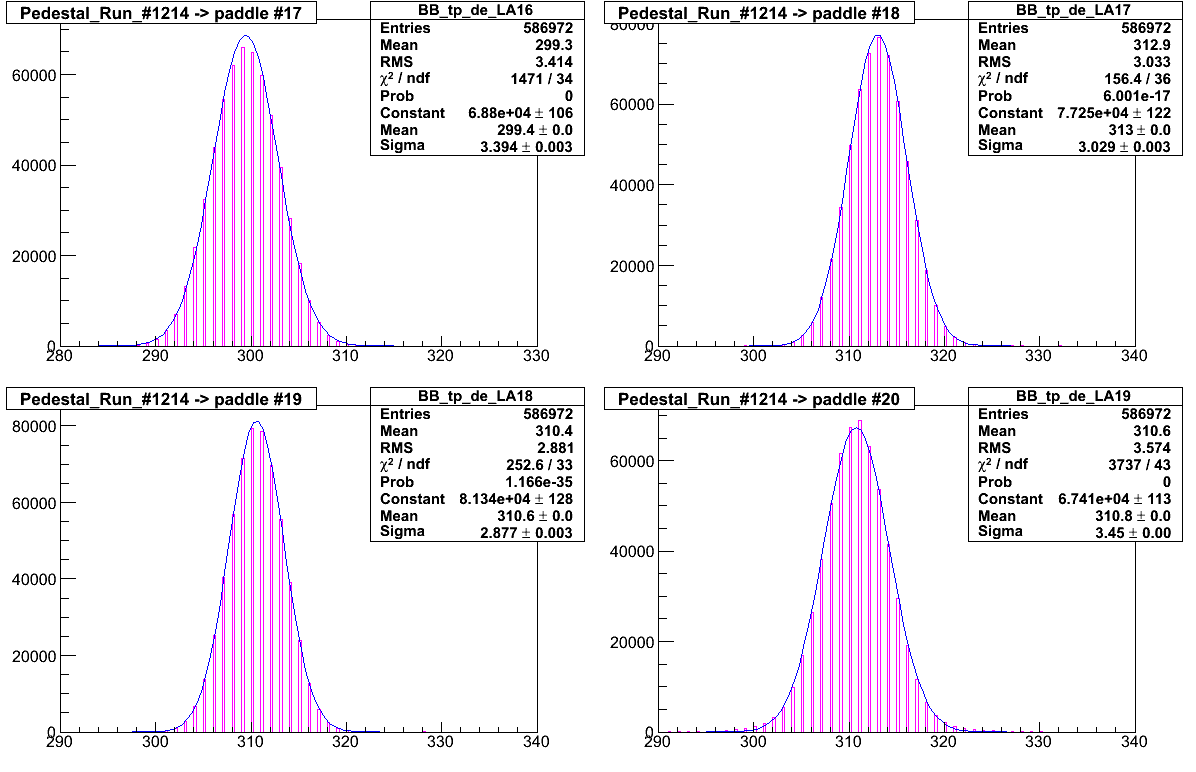

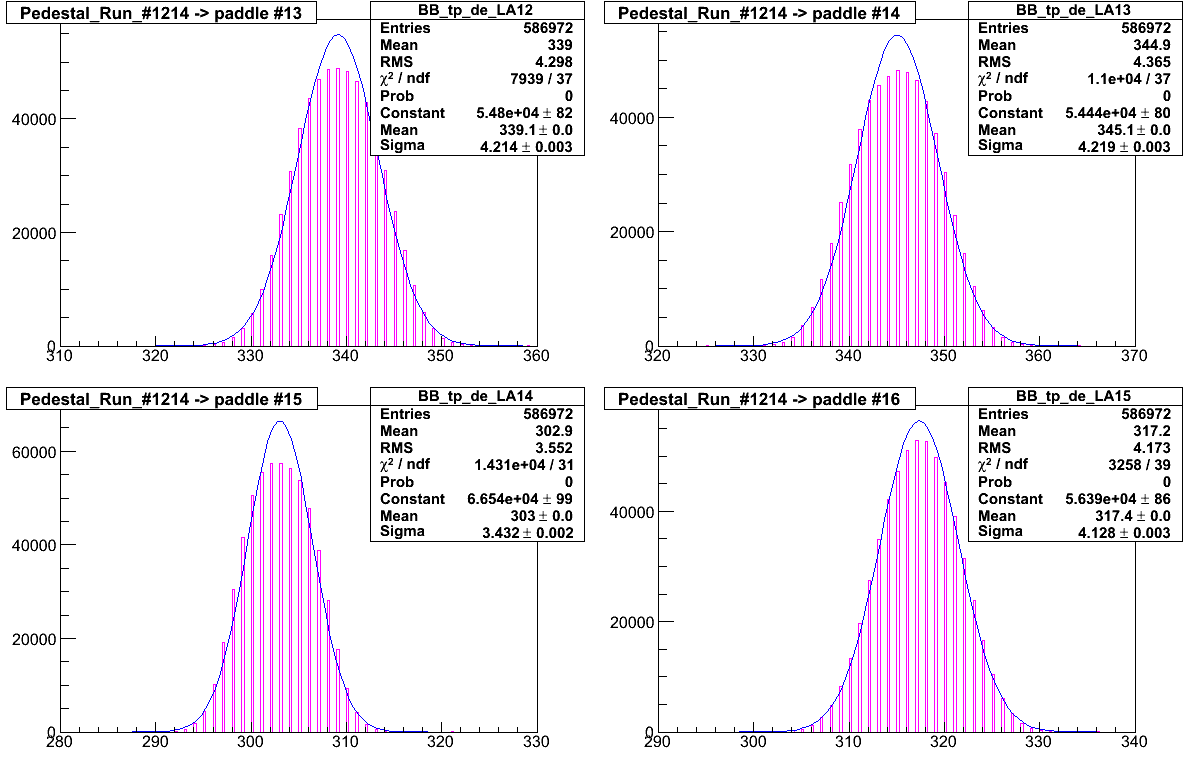

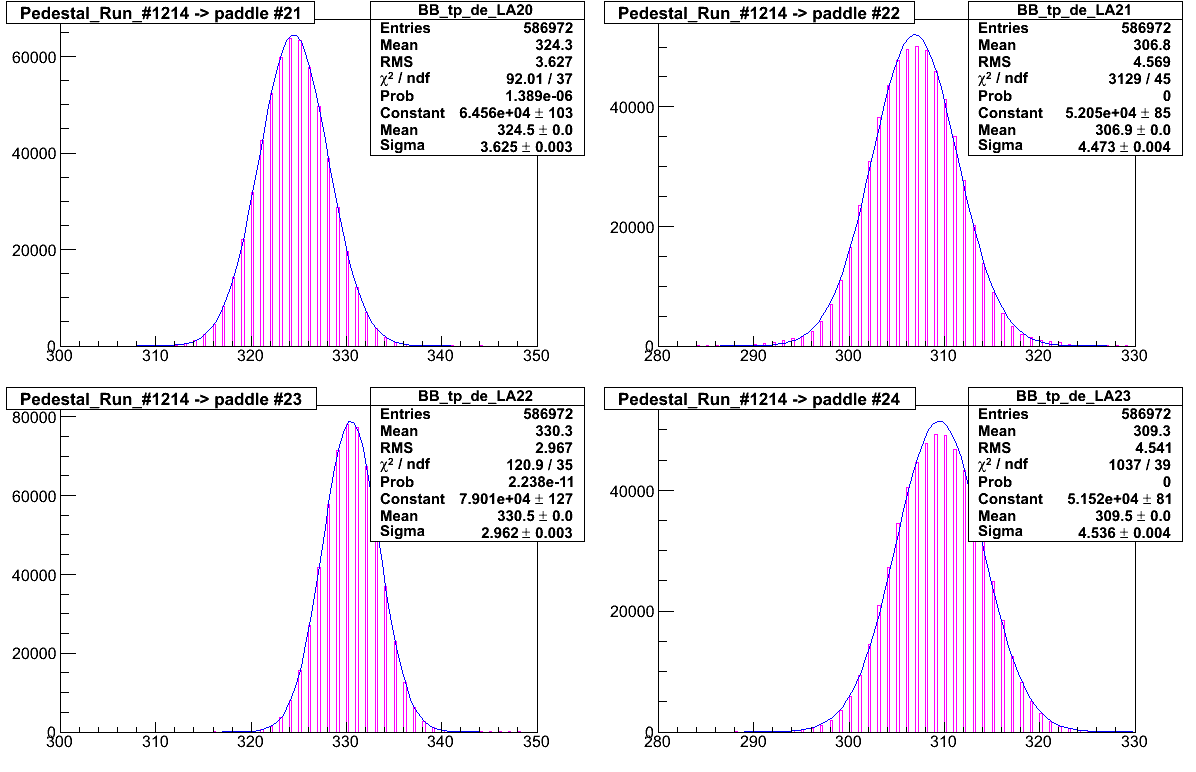

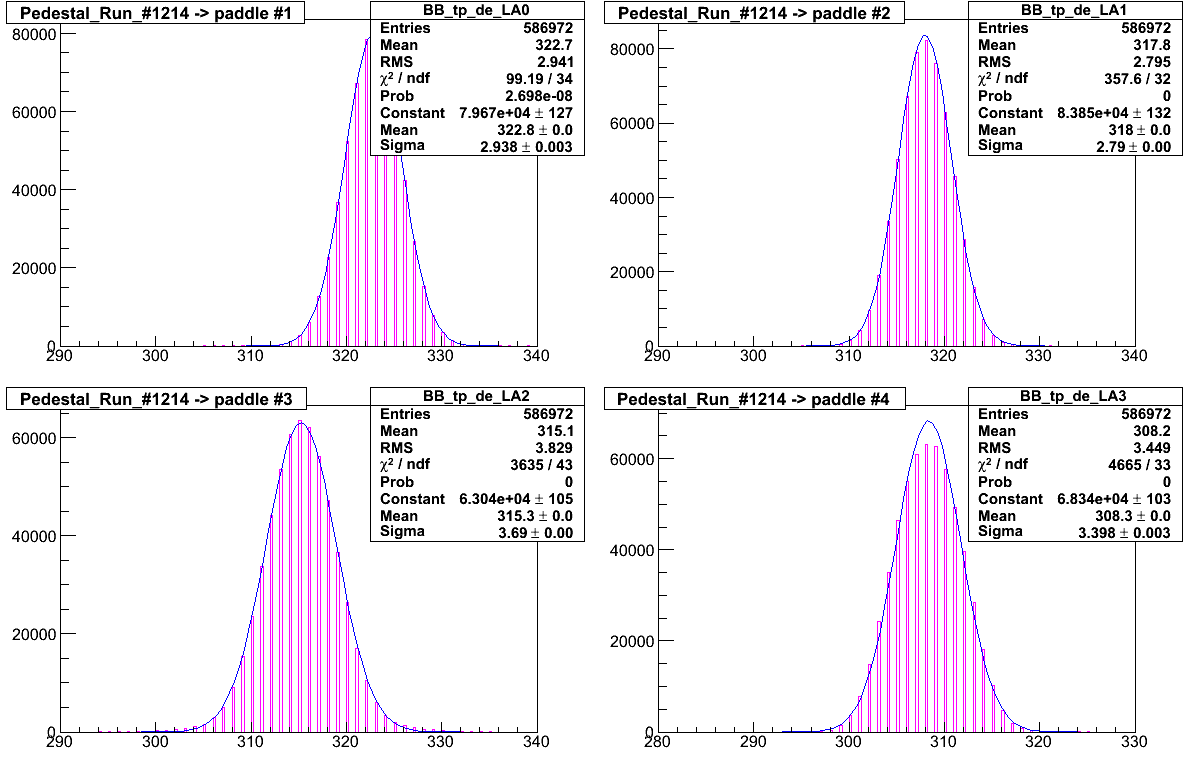

[ BB.tp.de.left_pedestals ]
322.792 317.969 315.259 308.330
305.460 323.829 325.305 298.384
254.001 327.316 314.732 321.100
339.122 345.066 303.040 317.361
299.418 313.009 310.572 310.759
324.470 306.902 330.468 309.460

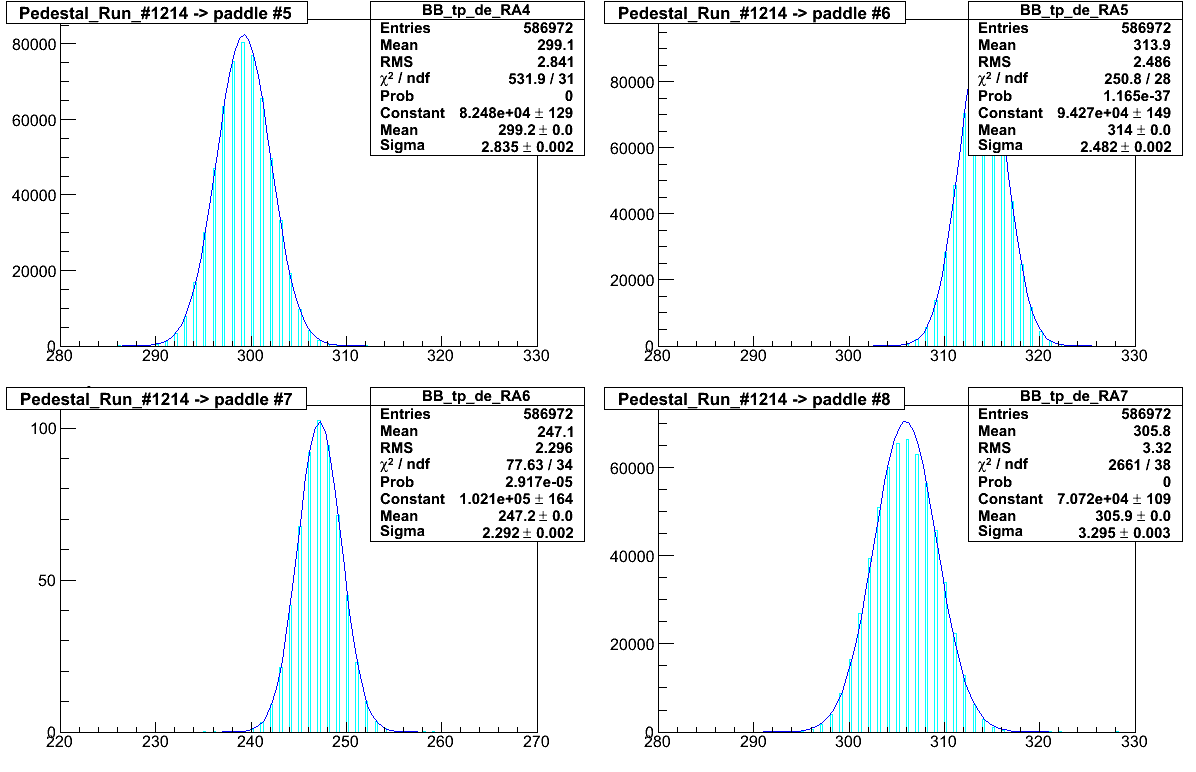

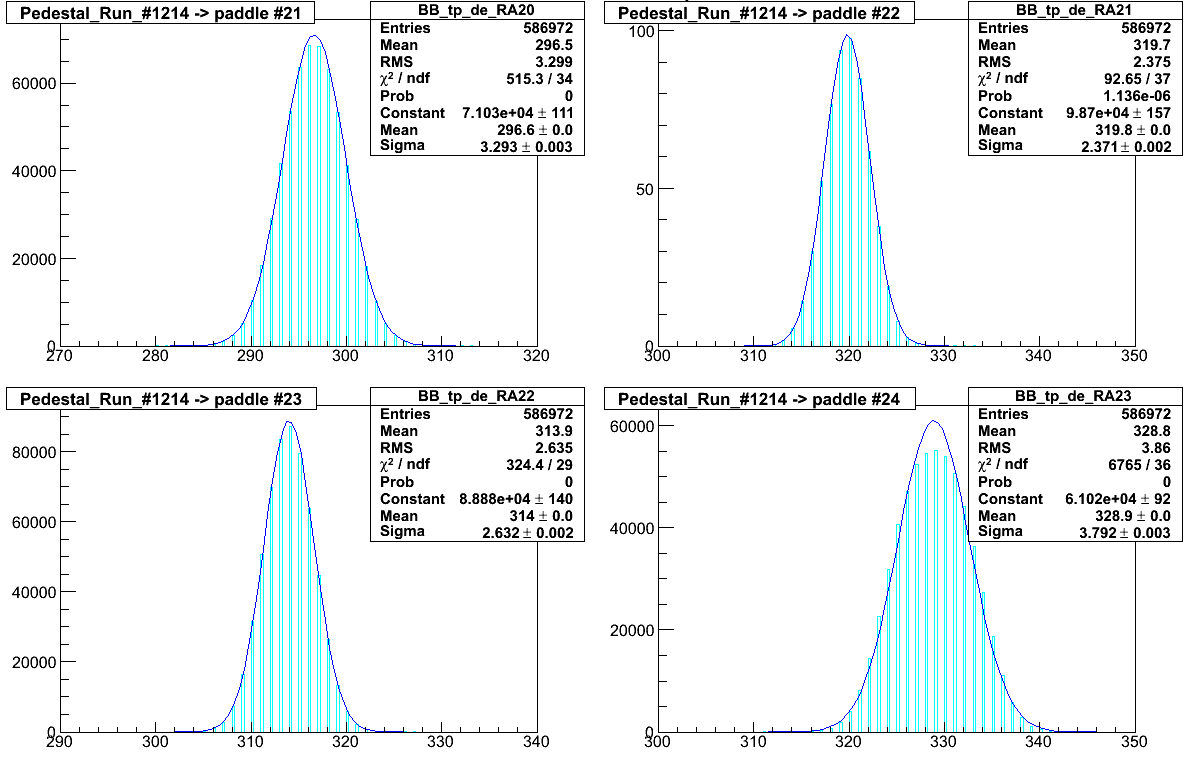

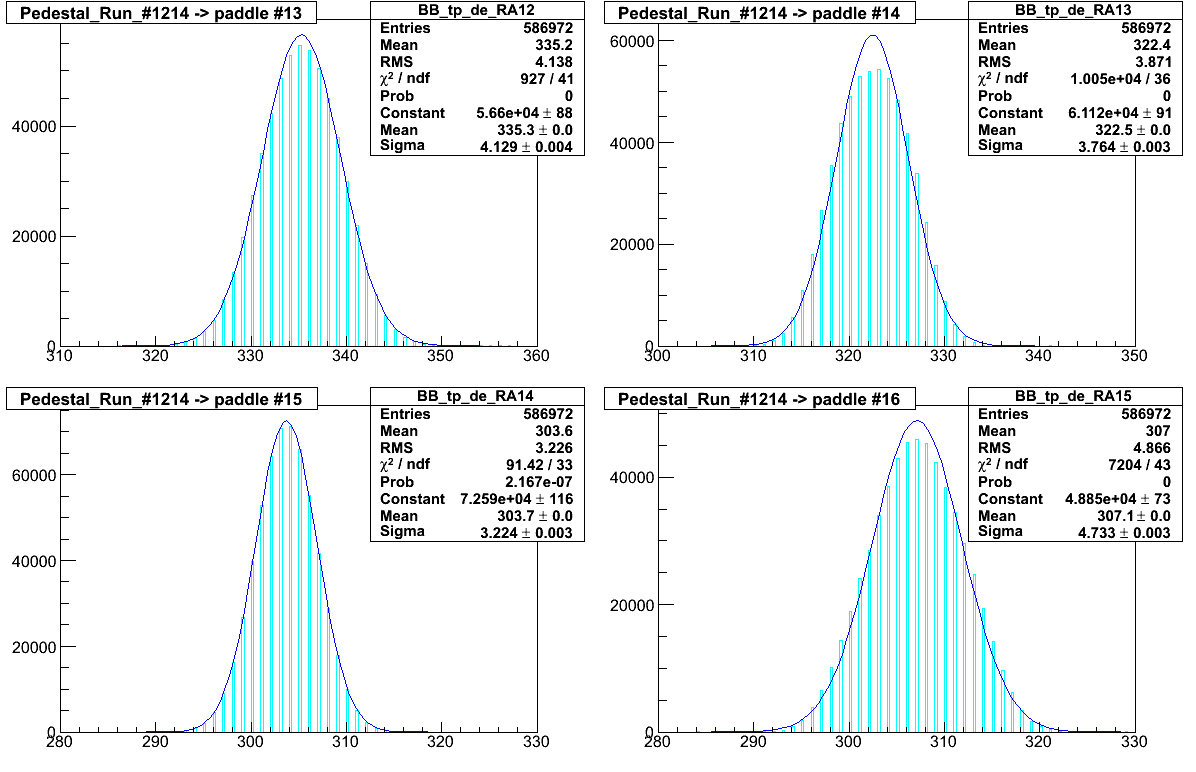

[ BB.tp.de.right_pedestals ]
306.050 303.392 295.693 305.935
299.229 314.015 247.181 305.914
314.848 336.343 310.095 324.128
335.274 322.456 303.701 307.136
305.309 332.018 283.469 296.797
296.621 319.811 313.977 328.881
A copy of this log entry has been emailed to: miham
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24
