Log entry time 21:50:29 on April 23, 2009

Entry number 267661

I tried a few runs with different delays on L1A but it is a bit hard to conclude with low statistics of cosmics.

Just took a run with T3 and T4 only it looks good.

Only things which I know have changed and they should not have influenced the retiming since L1A seemed to always arrive before retiming signal : - we delayed and reduced width of OR of S2m so it fits well in S1 or, now S2m or is about 50 ns and arrives 25 ns after S1 or. - Miha removed a delay module on the trigger going to the trigger supervisor

Though a whole bunch of cable were moved around so that can be it too.

I noticed the N_I input at the TM module is a bit loose. I think it is better to leave the short cable in it and use the other end of the cable rather than unplugging it from N_I

So this looks good enough to me. Smaller number of triggers are T4

A copy of this log entry has been emailed to: rom@jlab.org,vasulk@jlab.org,moffit@jlab.org

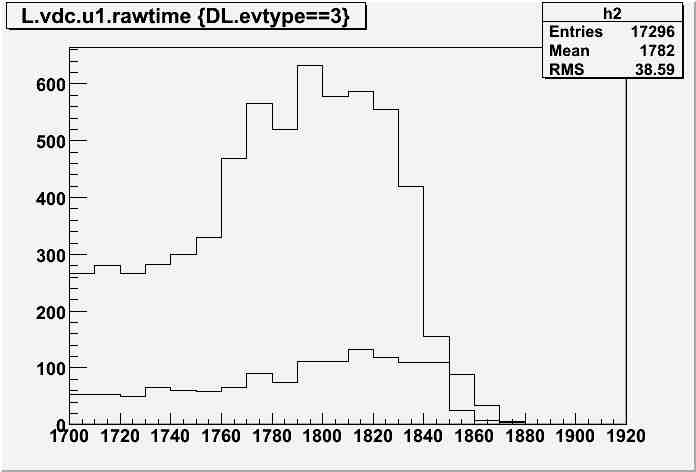

Figure 1
