User name V. Sulkosky
Log entry time 02:10:50 on April 24, 2009
Entry number 267722
Followups:
- 267725 04/24/09 02:33 V. Sulkosky Re: L-HRS VDC Wire Hits
- 267735 04/24/09 03:46 Jin Huang Inverse RHRS Q1 Polarity
Attached are plots from the R-HRS VDC replay. For the working wires, the
T0 looks good for all chambers. Also the number of wires hit per event
is normal around five wires. The efficiency of the chambers looks
reasonable for all the chambers but V1, which has the higher wire numbers
drop to 90% efficiency.
As far as the hit wires goes, the distribution is interesting. This
distribution would lead me to believe that we have something in the middle
of the acceptance for the R-HRS?
A copy of this log entry has been emailed to: brads,jiang,jpchen,bogdanw,doug

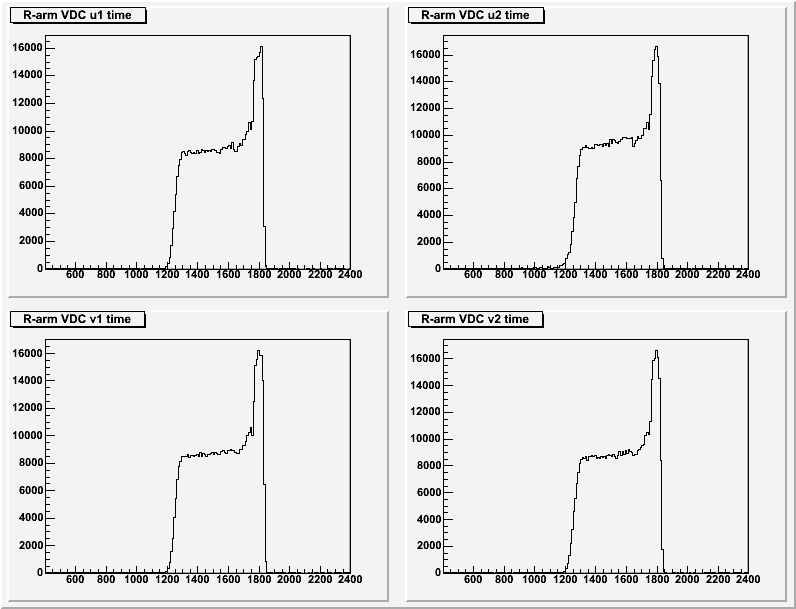

VDC TDC

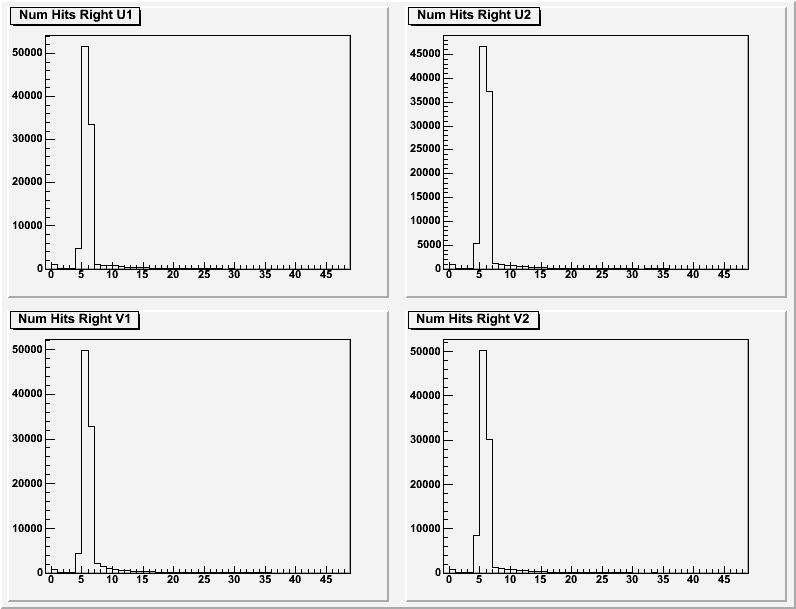

VDC Hits

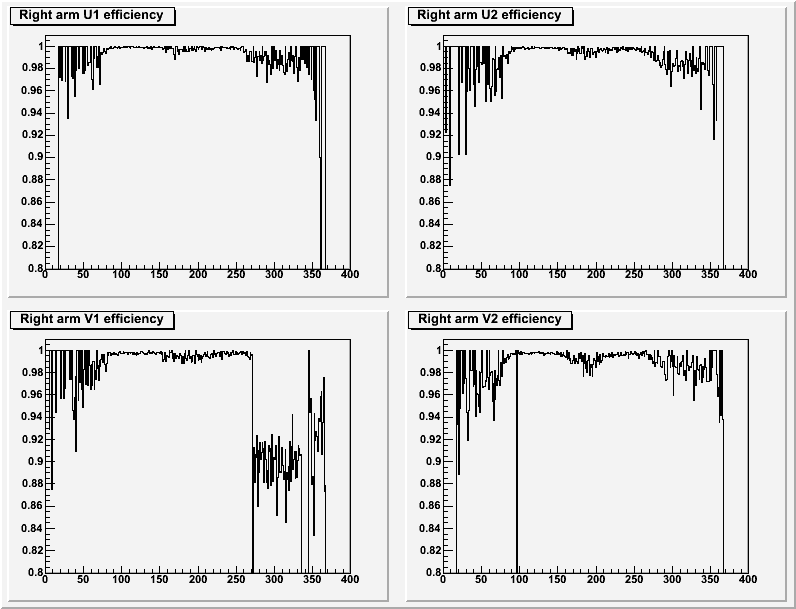

VDC Efficiency

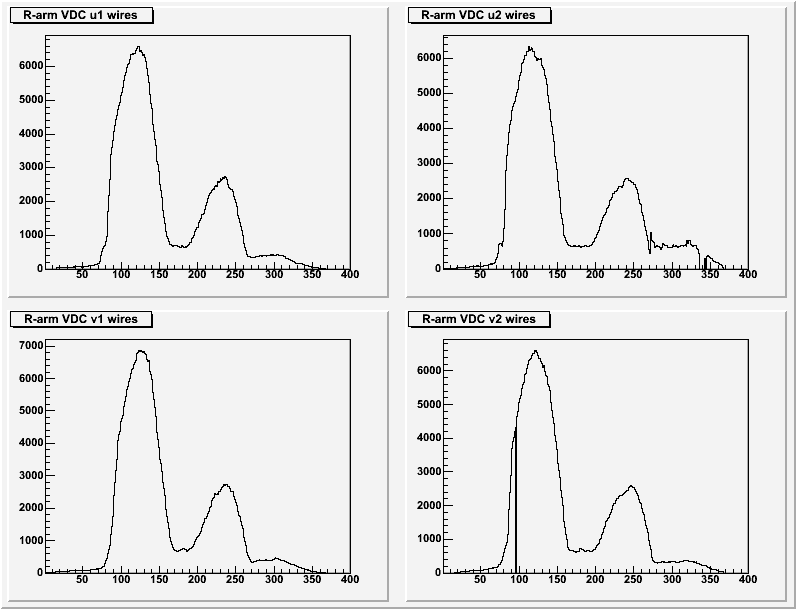

VDC Wire Hits
