Make New Entry, Make Followup Entry
User name Yi Qiang
Log entry time 19:11:35 on April 24, 2009
Entry number 267977
Followups:
- 269544 04/28/09 22:02 Yi Qiang EPR calibration for Vertical pumping
- 269546 04/28/09 22:03 Yi Qiang EPR calibration for Vertical pumping
Cell: Dominic
Oven Temperature: 230C
Field Direction: Vertical -
Pumping Direction: Parallel
Laser Power: 3x25 COMET
Cell Density: 7.830 amg
Data directory: C:\AyeD\EPR\Data\EPR_AFP_20090424_1846
Calibration Constant: 3.97%/mV
Polarization: 64.85%
I forgot to run the EPICS daemon for the temperatures so I make a snap
shot afterwards
Target Chamber Temperature: 38.18/49.51/83.90/46.97/39.44 C
Pumping Chamber Temperature: 247.62/243.81

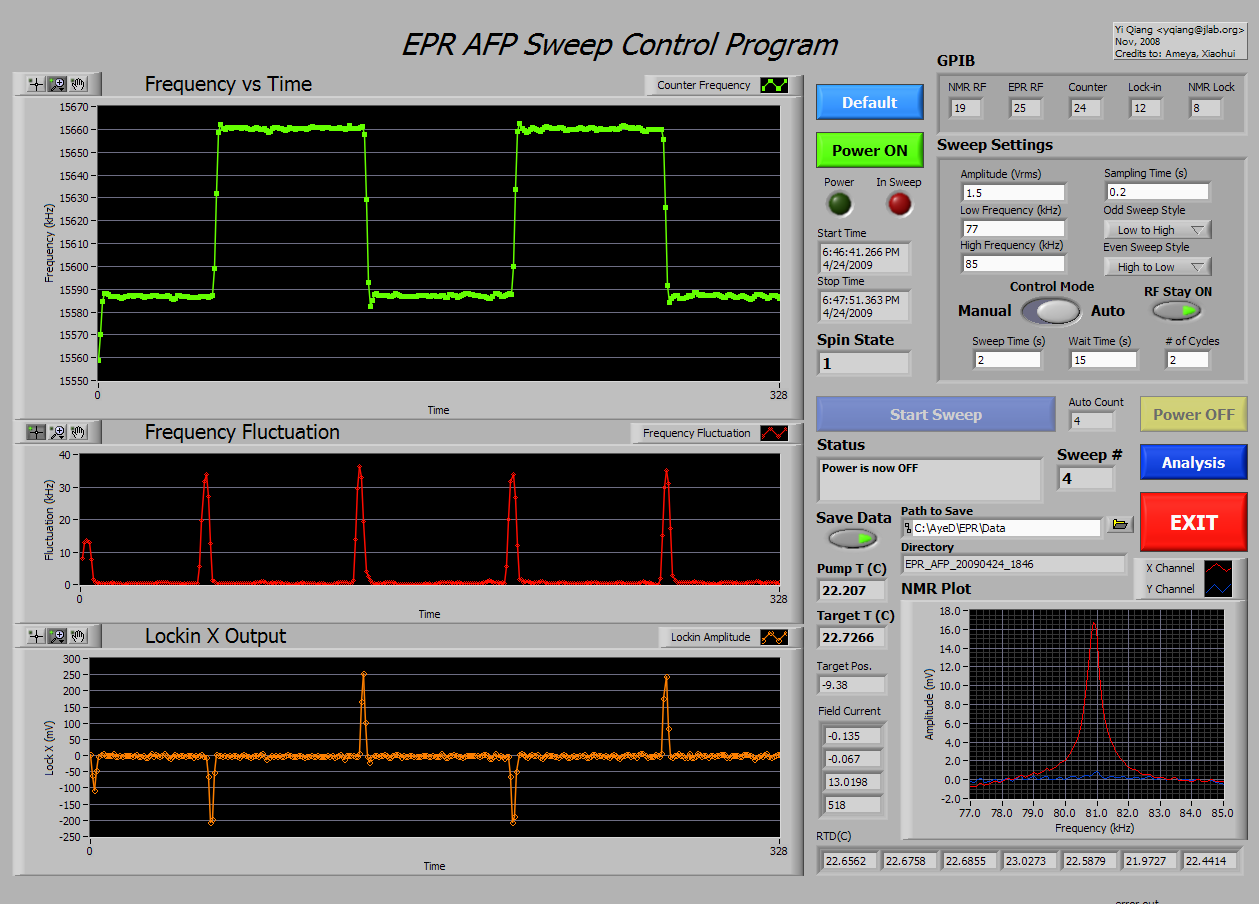

Figure 1
Figure 2
Figure 3
Figure 4
