User name Jin Huang
Log entry time 04:00:48 on April25,2009
Entry number 268131
Followups:
keyword=Target Spin Signal in ADC; Problem with LHRS copy #1Target Spin signal on both DAQ is checked. There are two ADC copy in LHRS, one copy in RHRS.
It seems that spin signal on LHRS ADC copy #1 is inversed. Did the cables for two spin state channels got swaped?
The signals in the other 2 adc copies are fine.

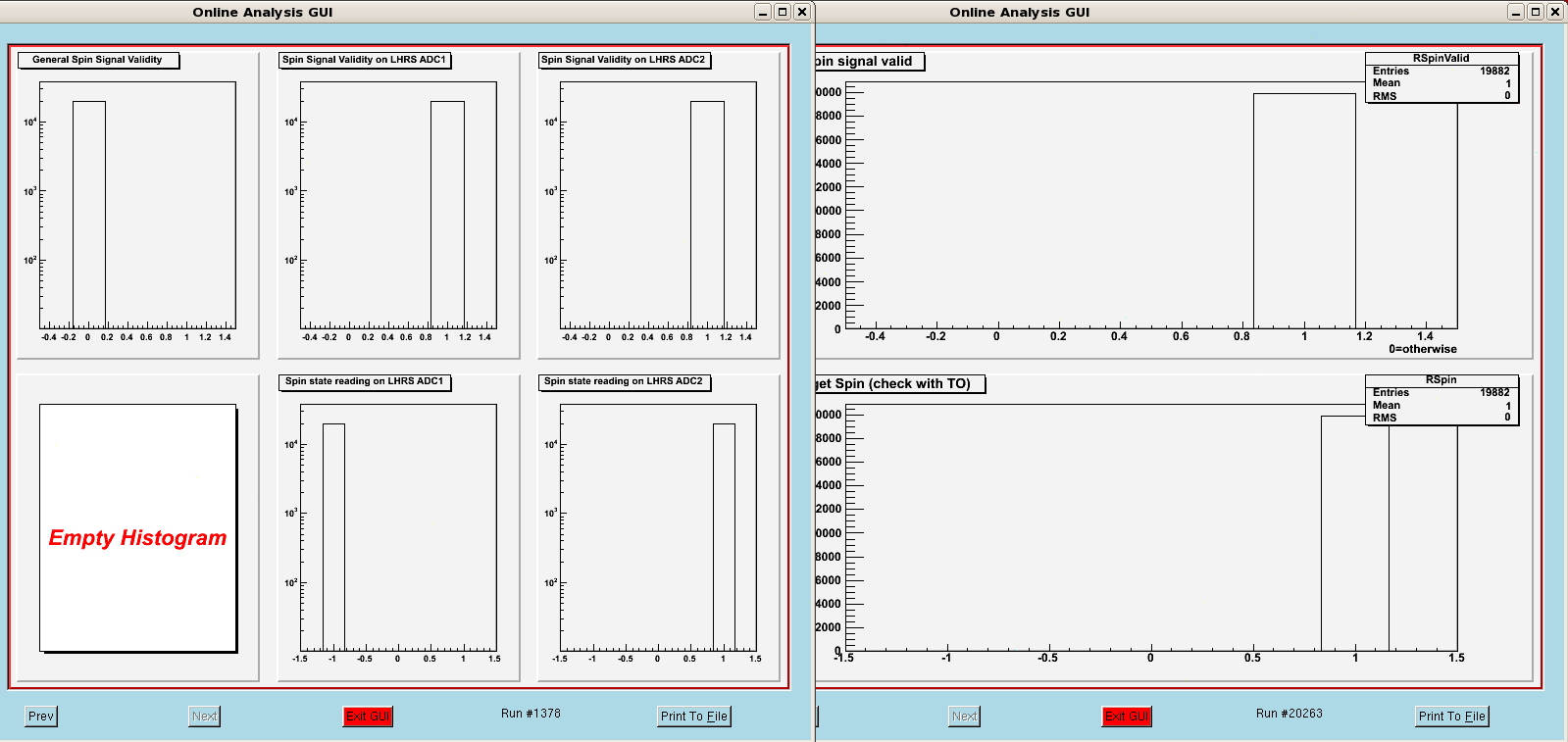

Fig1: Spin signal read back when Spin = +1

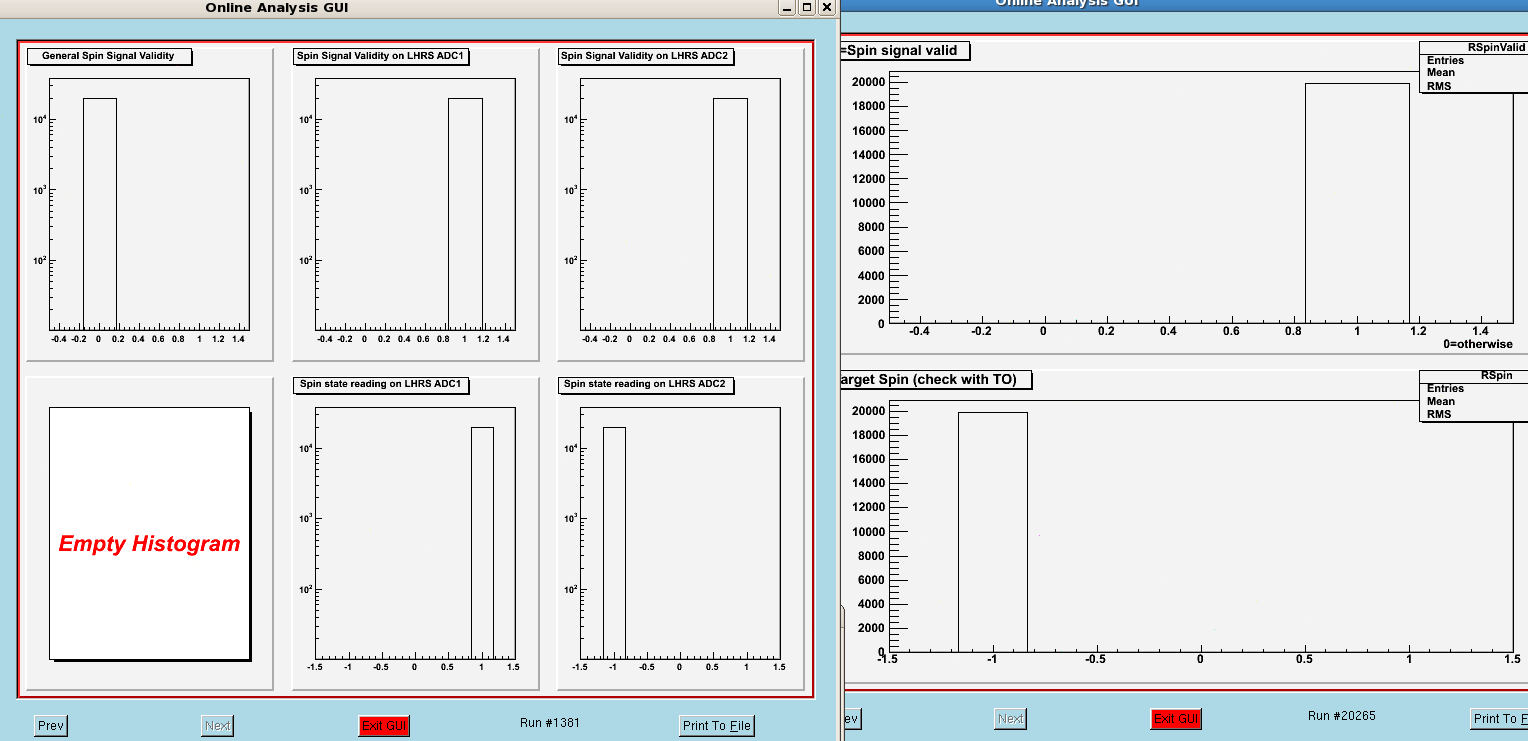

Fig2: Spin signal read back when Spin = -1
FIGURE 1
FIGURE 2
