keyword=New EDTM settingYesterday we have realized that our EDTM settings were not correct.
Consequently we have set wrong delays for the T1 and T2 relatively to T3.
Therefore all events were timed of T3. The difference between the real
data and "simulated" EDTM triggers could be observed in the DL.Ti
histograms as well on the scope.
We have changed the time settings in the EDTM so that they agree with
the true data taken this morning. Now that we have the correct values
for the EDTM settings we need to go down into the hall and correct the
delays for big-bite triggers T1,T2 and T5,T6.
OLD EDTM SETTING : ./edtmsetup 369 44
NEW EDTM SETTING : ./edtmsetup 257 44
A copy of this log entry has been emailed to: moffit, miham, sirca, brads

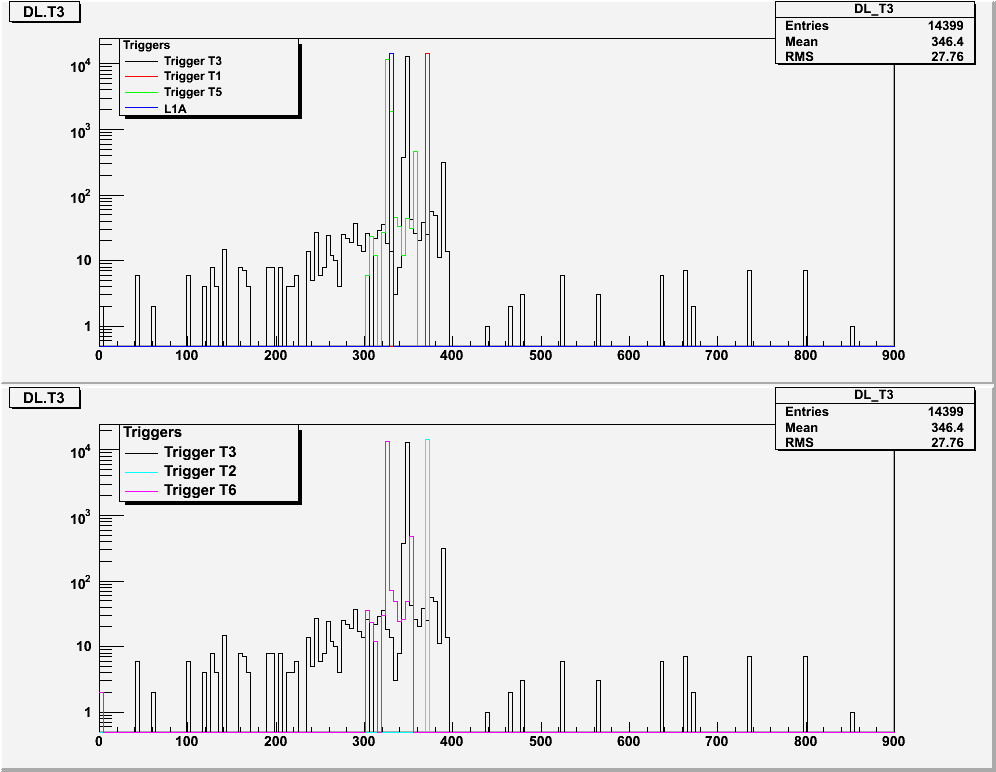

Old EDTM run DL.Ti

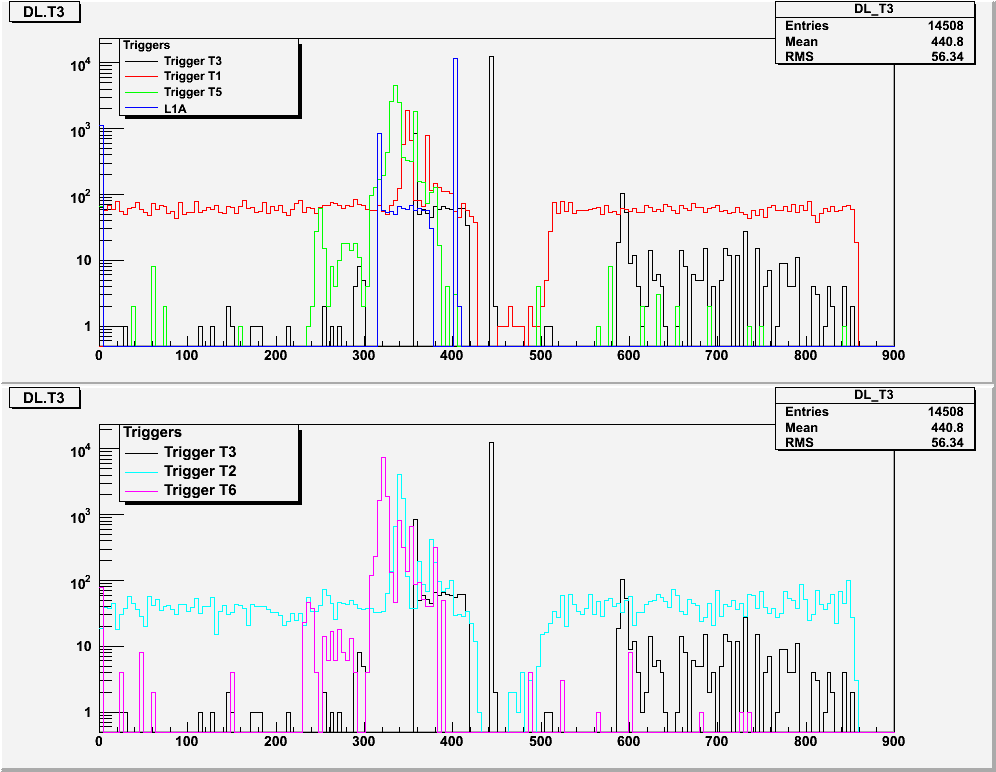

Real Data run DL.Ti

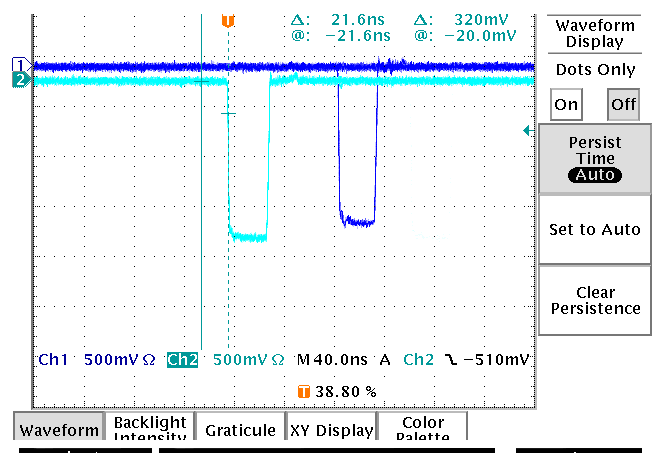

OLD EDTM setting (T1 - blue , T3 - cyan)

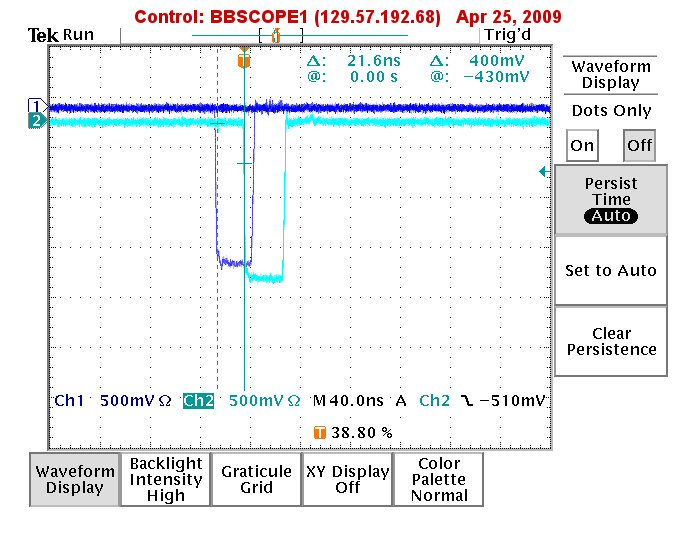

New EDTM setting (T1 - blue , T3 - cyan)

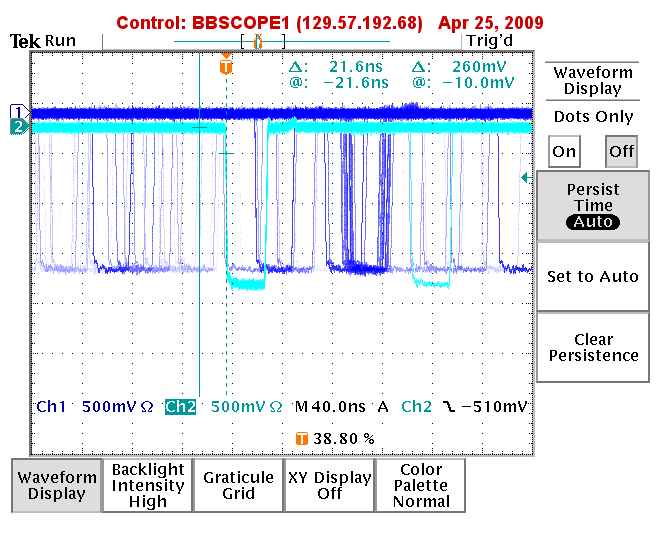

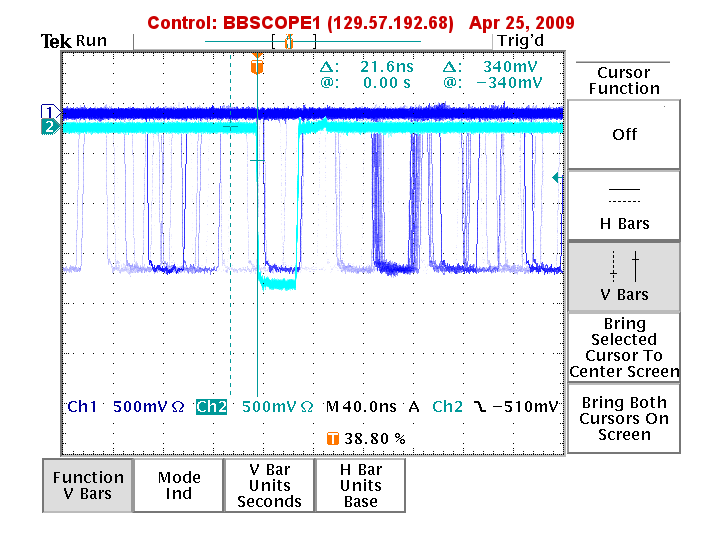

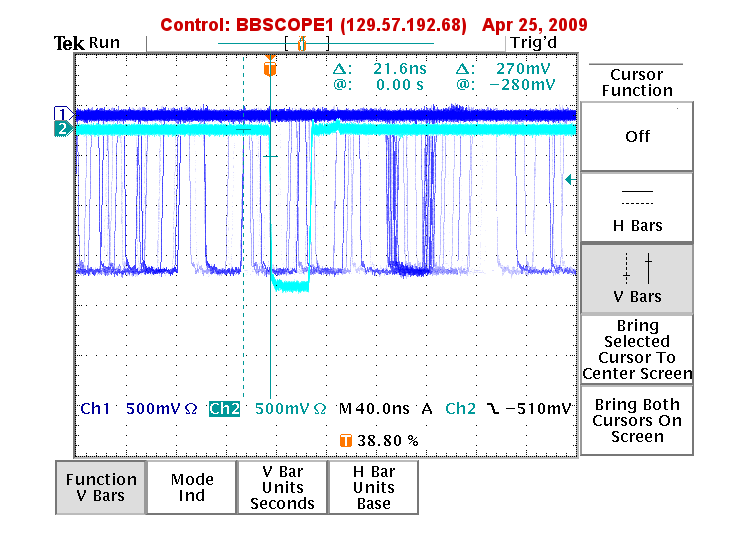

Scope during the run #1419 (T1 - blue , T3 - cyan)
Scope during the run #1419 (T1 - blue , T3 - cyan)
Scope during the run #1419 (T1 - blue , T3 - cyan)
Scope during the run #1419 (T1 - blue , T3 - cyan)
Scope during the run #1419 (T1 - blue , T3 - cyan)
