User name V. Sulkosky
Log entry time 19:05:46 on April 25, 2009
Entry number 268427
This entry is a followup to: 268311
keyword=Preshower Channel 42 Fixed and 18 Still WideI tricked myself yesterday and thought I had fixed the pedestal for ADC
channel 18. Unfortunately I got confused at the gas panel and ended up
plugging channel # 42 into channel # 18. So over night, channel 18 looked
good, but channel 42 was unplugged at the patch panel.
I fixed this mapping problem. The first figure shows preshower 36-47 and

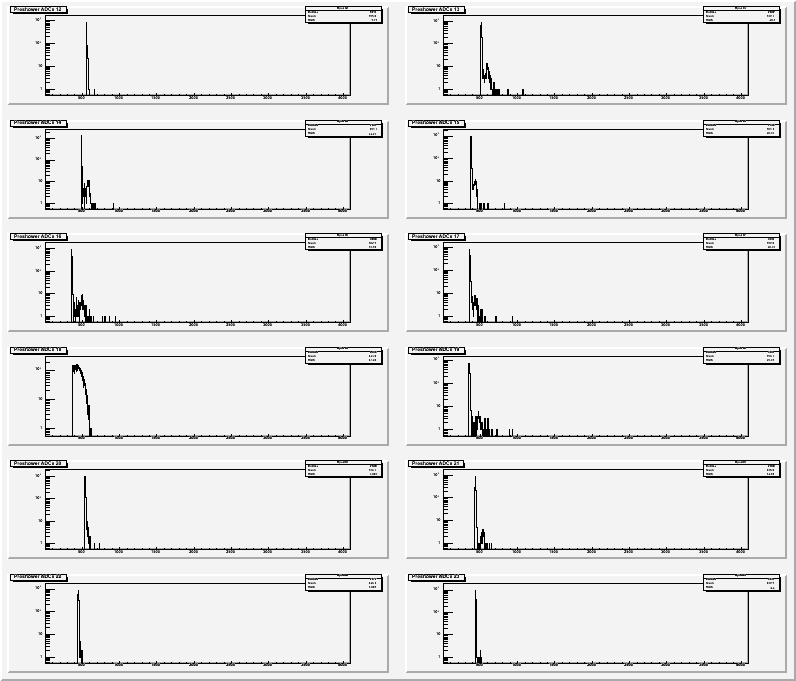

channel 42 is now working again. The second figure shows preshower 12-23,
but unfortunately channel 18 still has a wide pedestal. Hence the delay
cable is not the problem. So either the filter has a problem or the
ribbon cable going to the ADC board.
Figure 1
Figure 2
