keyword=NMR Cross Calibration of Vertical- and Transverse- (snapshots attached)Yesterday's calibration may not be accurate due to the 180 reverse of the
phase for transverse spin measurement.
NMR#1: 11:39: Transverse 16.46 mV (X ch)
NMR#2: 11:41: Vertical 9.444 mV (X ch)
NMR#3: 11:43: Transverse 16.13 mV (X ch)
NMR#4: 11:44: Vertical 9.327 mV (X ch)
NMR#5: 11:46: Transverse 15.86 mV (X ch)
NMR#6: 11:48: Vertical 9.130 mV (X ch)
NMR_v/NMR_t = (NMR2 + NMR4 + 0.4*NMR6)/(0.4*NMR1 + NMR3 + NMR5) = 0.581

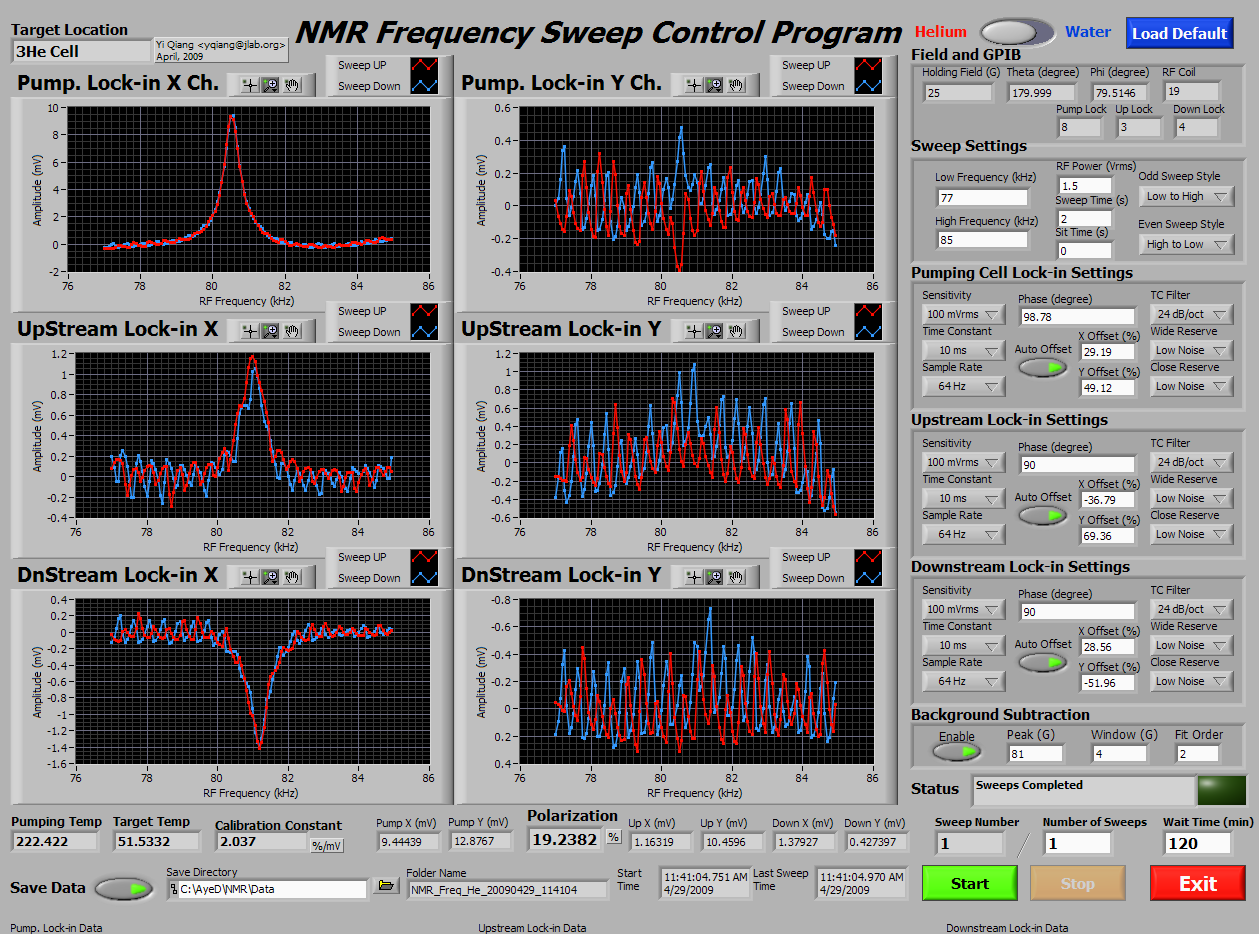

Figure 1

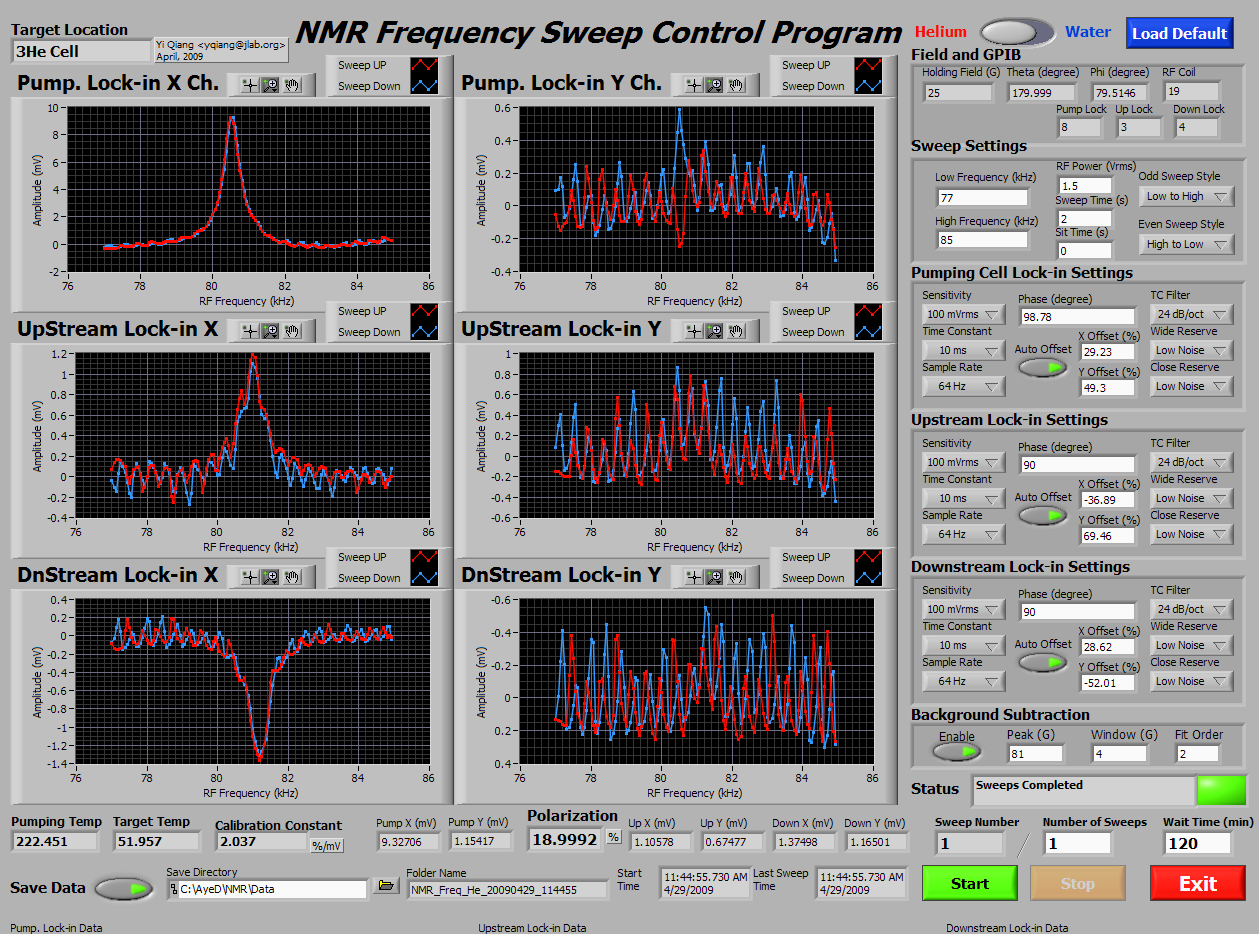

Figure 2

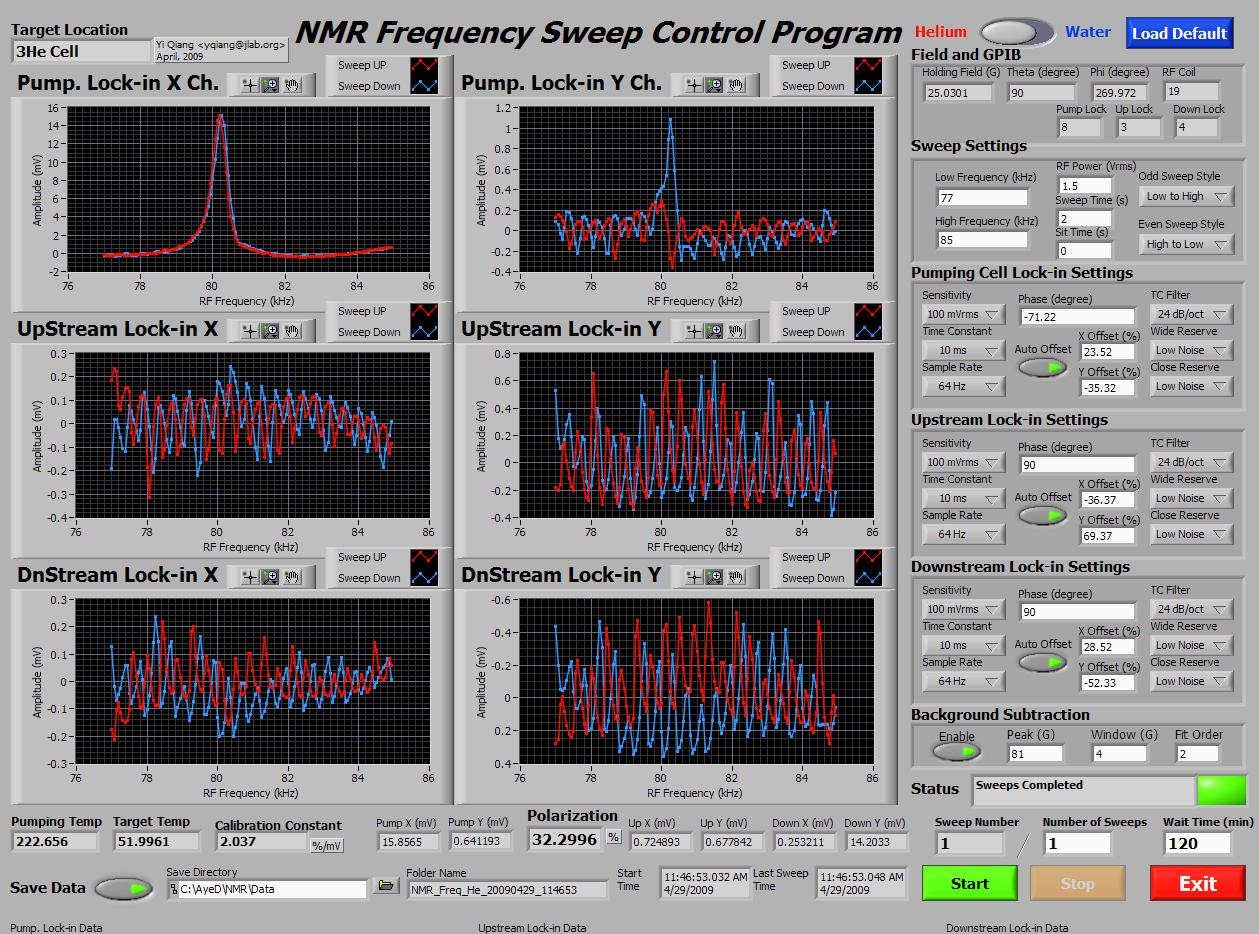

Figure 3

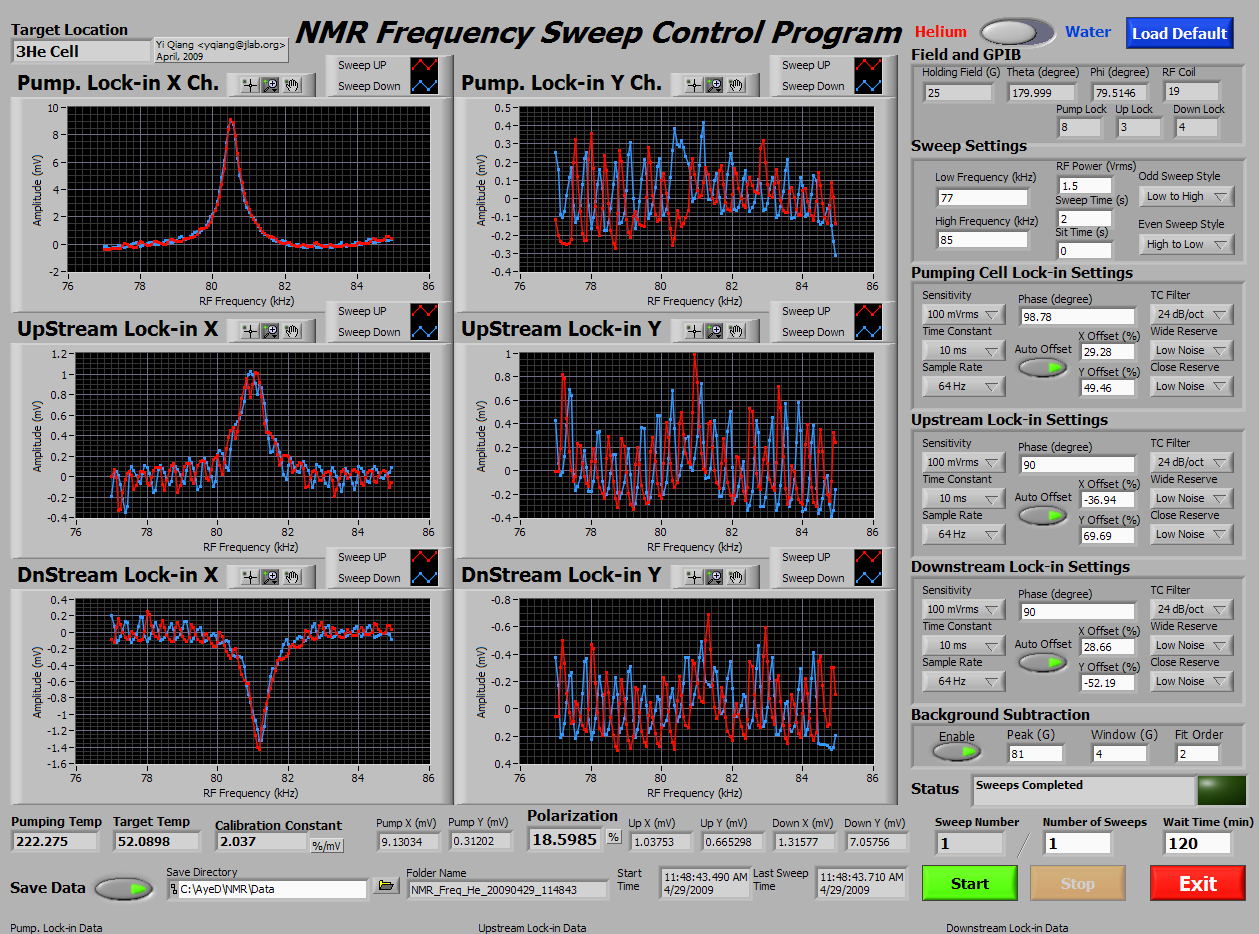

Figure 4
Figure 5
Figure 6
