Make New Entry, Make Followup Entry
User name A. Camsonne
Log entry time 11:05:29 on May 07, 2009
Entry number 271450
keyword=Asymmetry electron detector run 16758Using the pattern unit of the detector, I could select the helicity, laser on and off and laser helicity. I plotted the difference of beam helicity and the asymmetry for plan C.
We see a clear symmetry in counts a bit less clear when dividing by the total number of counts.
A bit more of statistics and trying in coincidence with the photon could improve the signal.
Signal on D is poorer than on C.
A copy of this log entry has been emailed to: rom@jlab.org,rsholmes@jlab.org,hyde@jlab.org

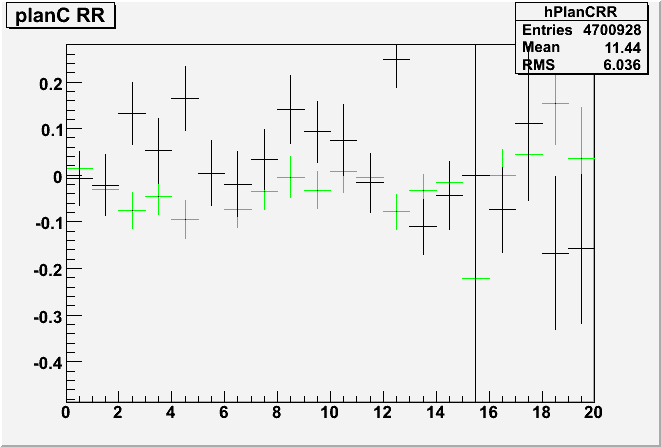

Figure 1

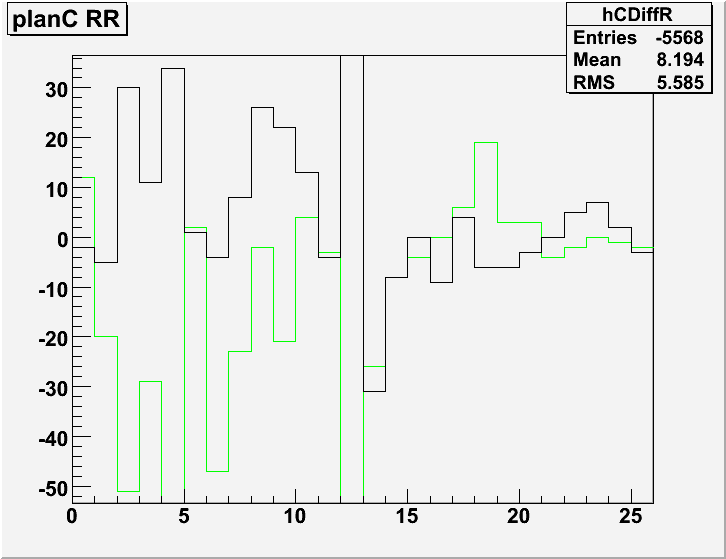

Figure 2
