Log entry time 13:09:42 on May 14, 2009

Entry number 273312

This entry is a followup to: 272781

Followups:

• 273313 05/14/09 13:20 V. Sulkosky Re: Corrected the T2 and T5 in the HRS-L

Today during the access I went up into the HRS-L and into
the BB "electronics cube" and compared the positions of the
cables in the 4616 Module. I realized that signal cables
on the BigBite side were swapped. I have changed the positions
of the cables as they should be:

Trigger  |   HRS-L (input)   |   BB-old (inp.)   | BB Corrected (inp.)
--------------------------------------------------------------------
   T1    |      8            |      8            |      8
   T2    |      9            |      13           |      9
   T5    |      13           |      9            |      13
   T6    |      11           |      11           |      11

I have also changed back the scaler.map file, so that scalers
are showing correctly in the HRS-L scaler gui. I have saved
the old file as scaler_14May09.map

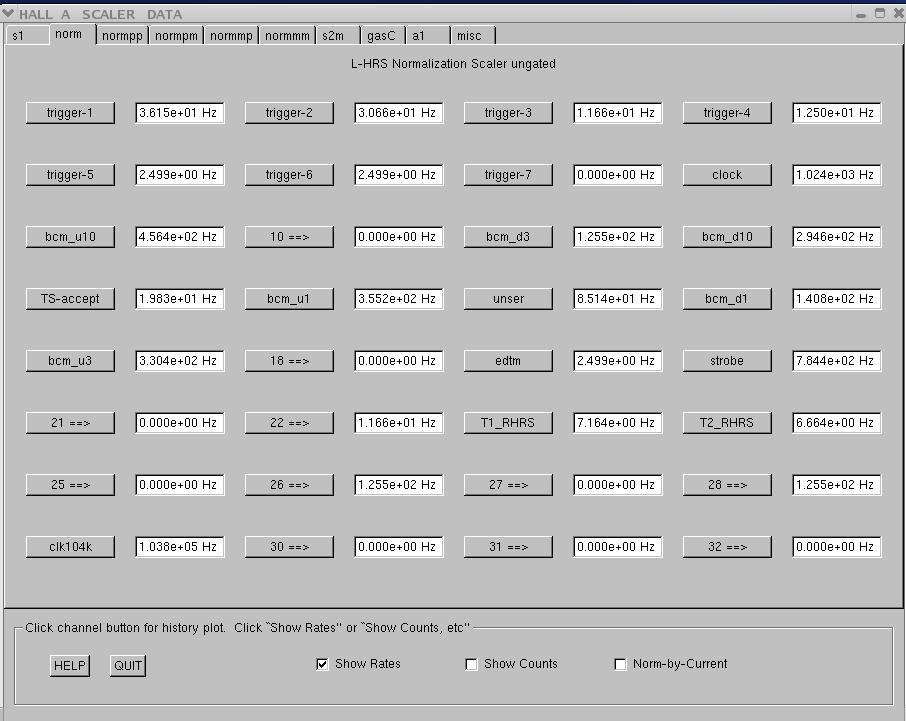

HRS-L scalers

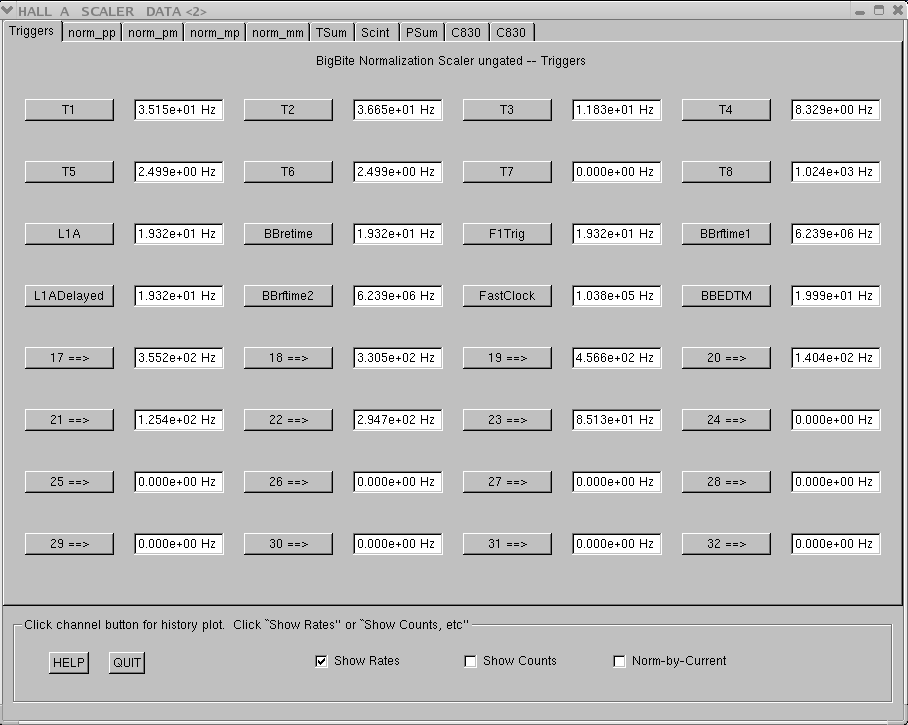

BB scalers
