    keyword=NMR Cross Calibration

    This is not a cross calibration between field sweep and frequency sweep but a cross calibration of frequency sweeps with different field settings.

    The common settings are the following:

    Target Position: 3He
Laser Power: OFF
BigBite Magnet: 518 A @ 75 degrees

    Sweep Lists:

    Sweep#1:  Longitudinal -  Corr. Coil: 0.5 A  Data: 20090602_114001
Sweep#2:  Transverse +    Corr. Coil: 0.5 A  Data: 20090602_114126
Sweep#3:  Transverse +    Corr. Coil: OFF    Data: 20090602_114227
Sweep#4:  Longitudinal -  Corr. Coil: 0.5 A  Data: 20090602_114345
Sweep#5:  Transverse -    Corr. Coil: 0.9 A  Data: 20090602_114458
Sweep#6:  Transverse -    Corr. Coil: 0.5 A  Data: 20090602_114559
Sweep#7:  Longitudinal -  Corr. Coil: 0.5 A  Data: 20090602_114710
Sweep#8:  Longitudinal -  Corr. Coil: OFF    Data: 20090602_114834
Sweep#9:  Longitudinal -  Corr. Coil: 0.5 A  Data: 20090602_114939
Sweep#10: Transverse -    Corr. Coil: OFF    Data: 20090602_115114
Sweep#11: Longitudinal -  Corr. Coil: 0.5 A  Data: 20090602_115246

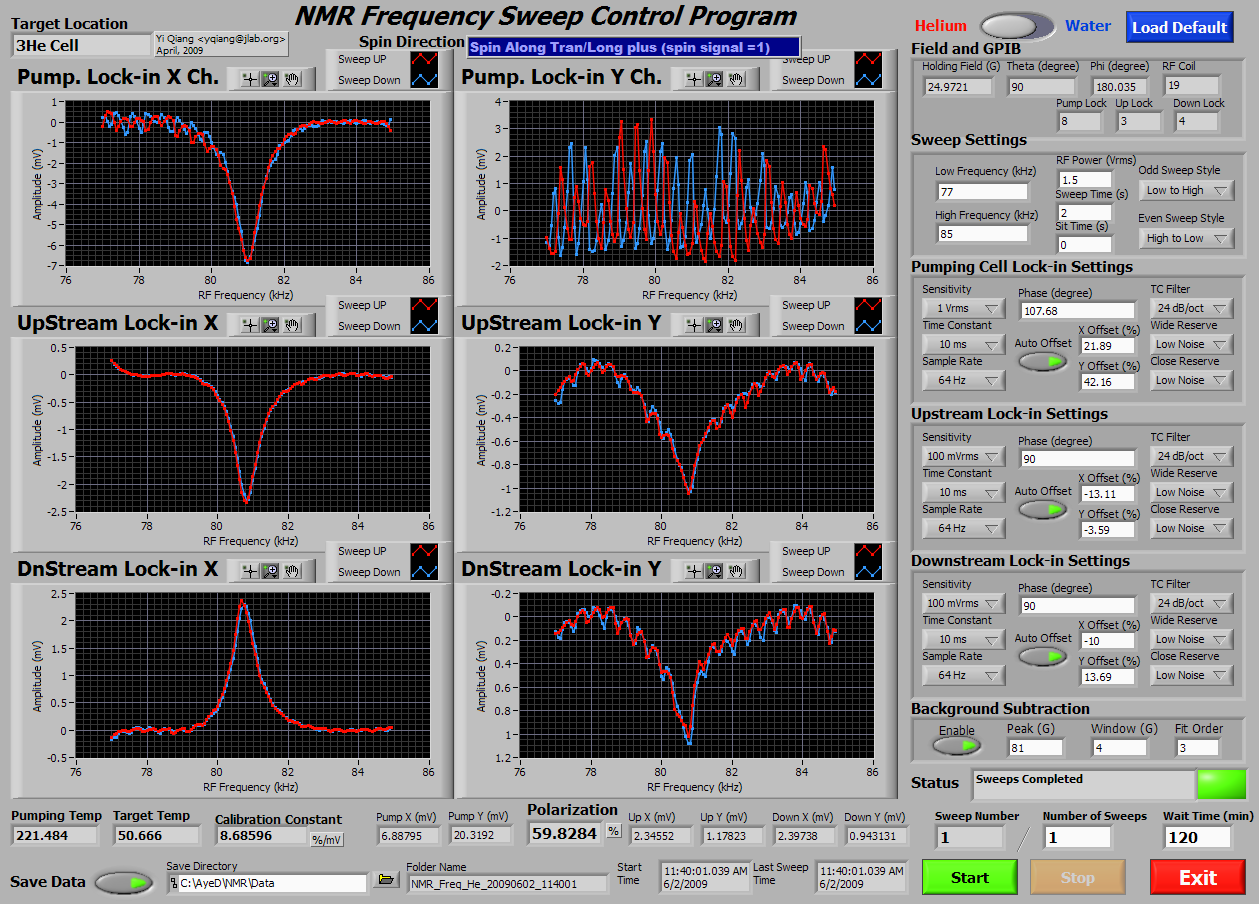

    NMR Sweep #1



    NMR Sweep #2

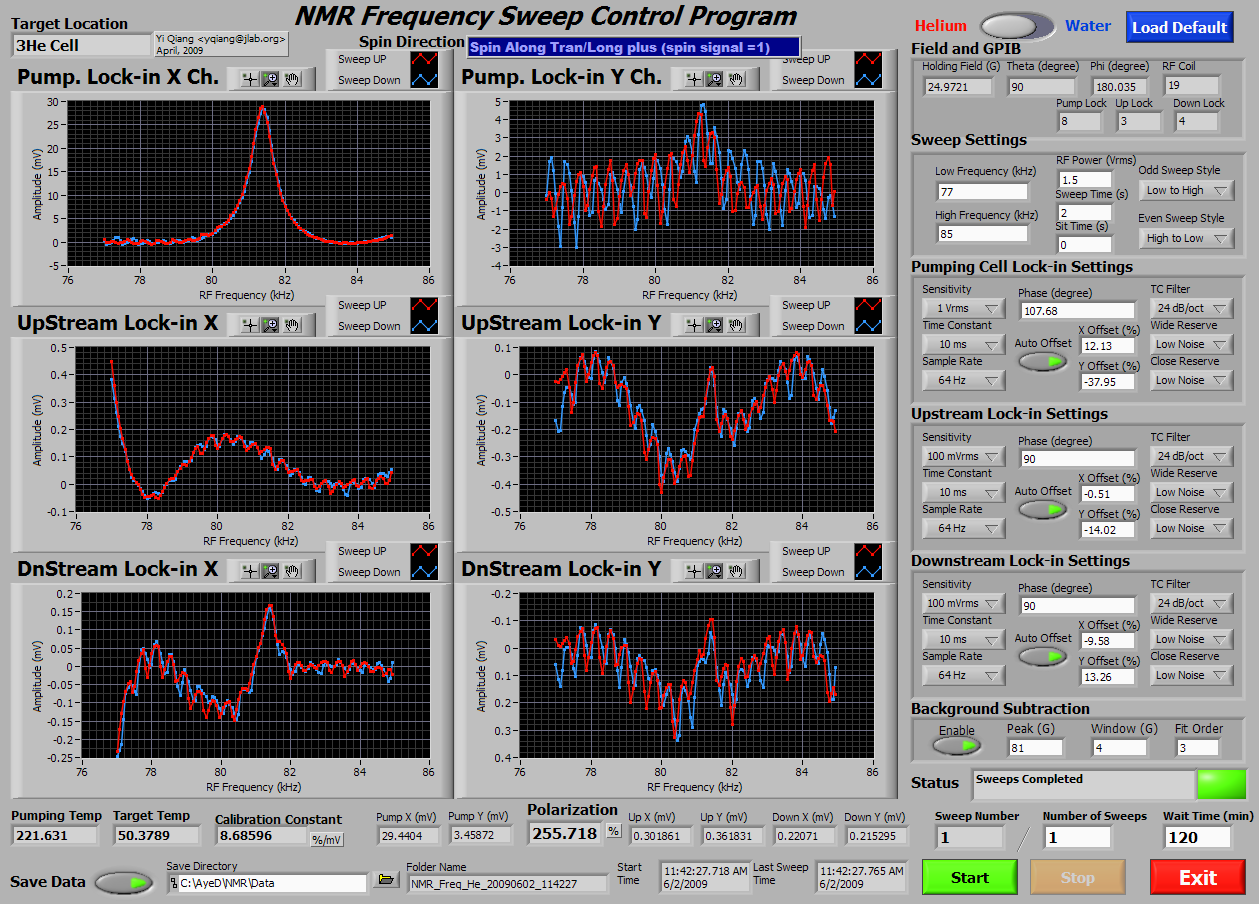

    NMR Sweep #3



    NMR Sweep #4

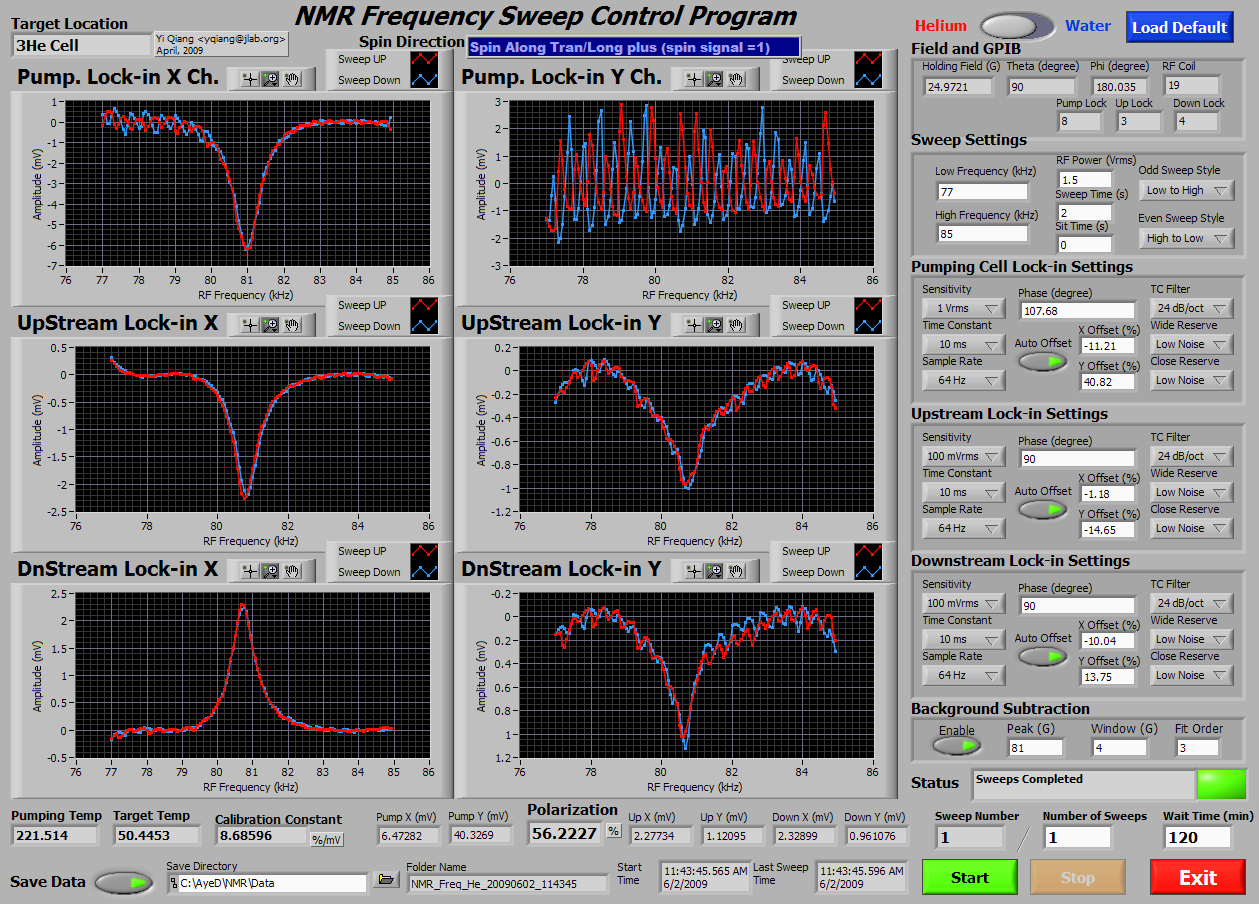

    NMR Sweep #5

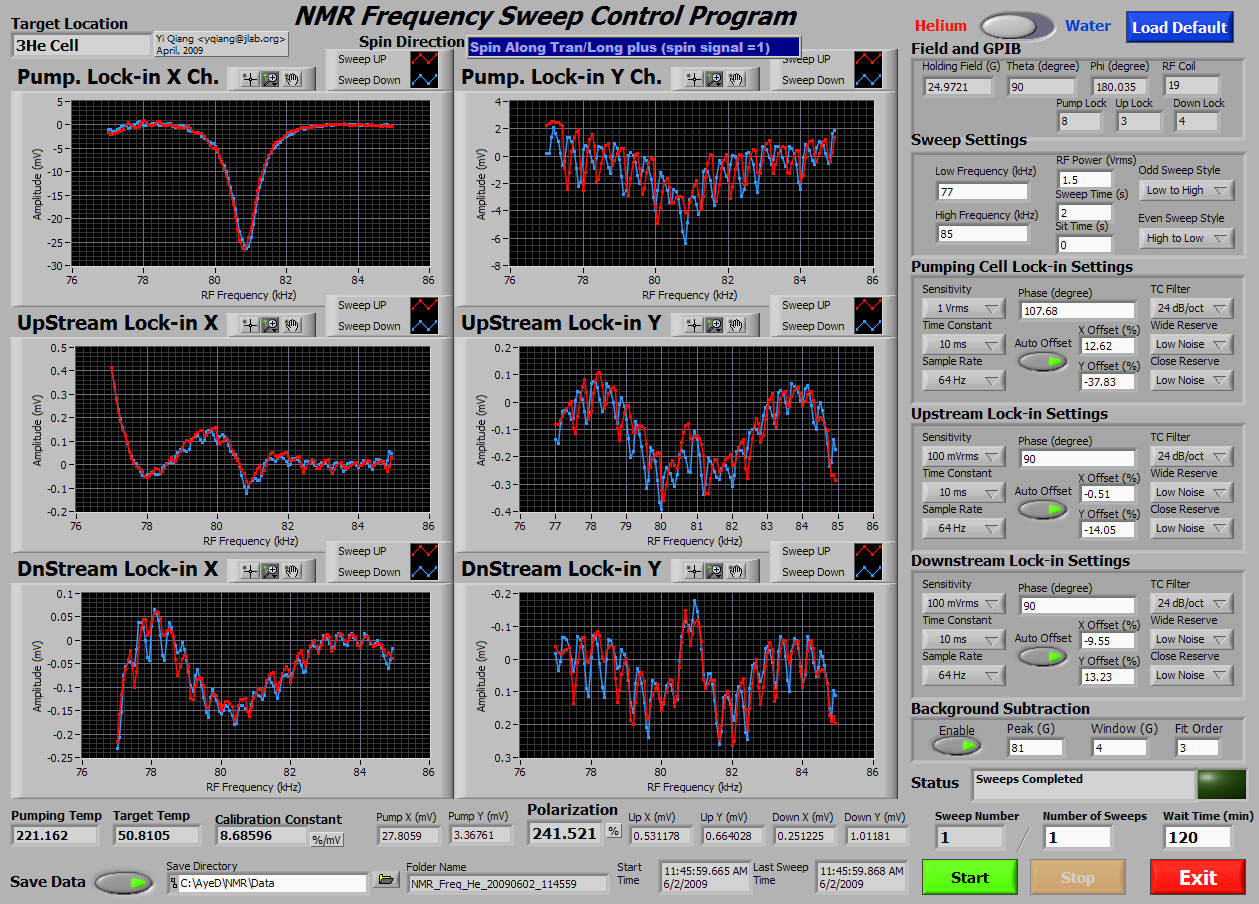

    NMR Sweep #6

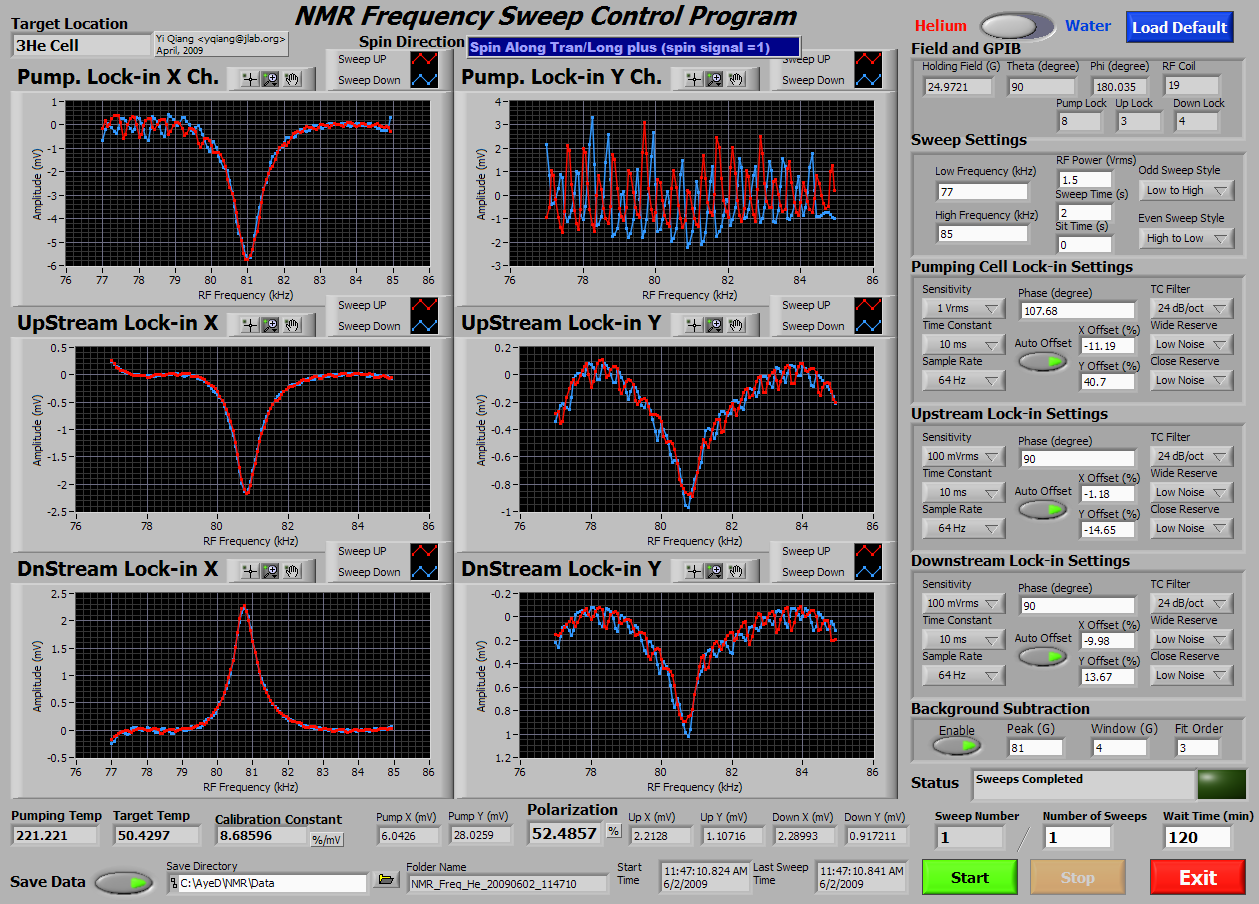

    NMR Sweep #7



    NMR Sweep #8



    NMR Sweep #9



    NMR Sweep #10



    NMR Sweep #11
