Make New Entry, Make Followup Entry
User name miham
Log entry time 17:00:31 on June 3,2009
Entry number 278762
keyword=Spot++ check (#3155) - Raster (2x2)mmTo do some tests we changed the raster of the beam to (2x2)mm.
The spot looks ok. First run with this raster is #3155.
-------------------
Beam current = 9.34uA
BPMa = (-0.456, 2.139)
BPMb = (-0.496, 2.000)

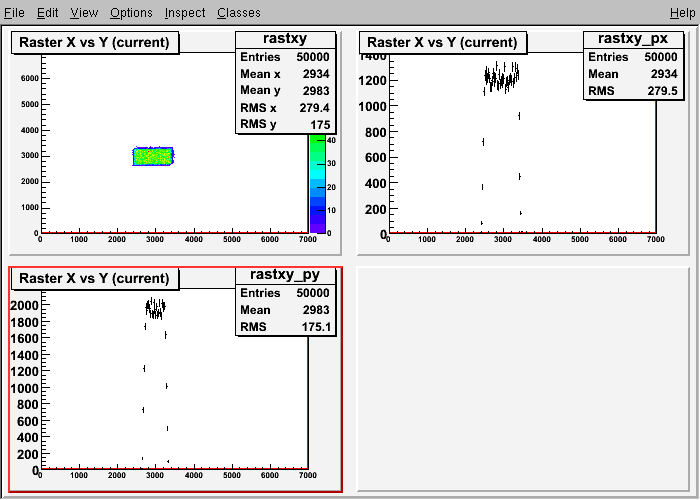

FIGURE 1

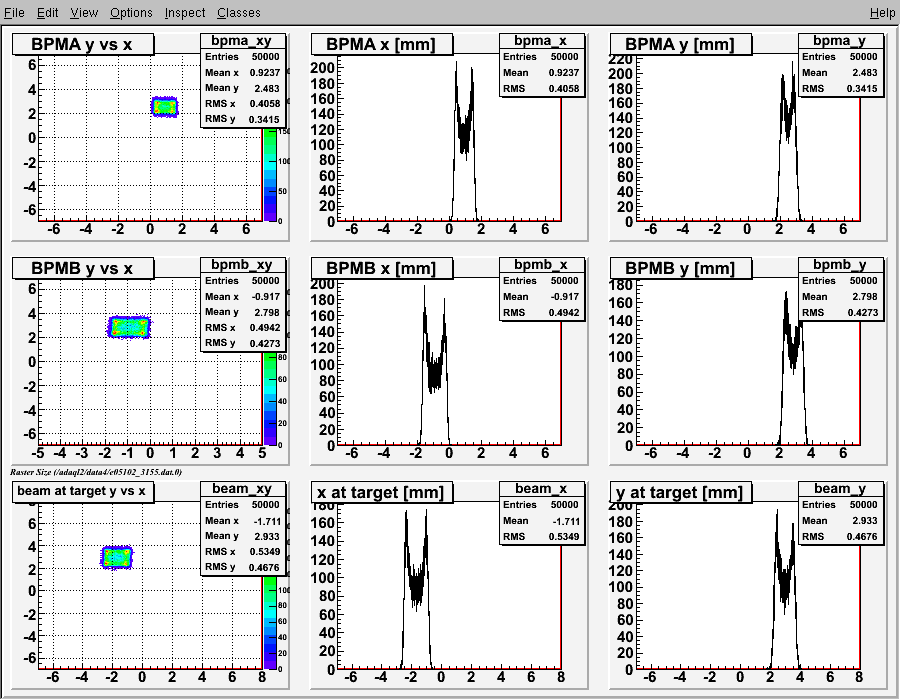

FIGURE 2
