User name X. Zheng
Log entry time 07:16:53 on June 11, 2009
Entry number 280577
keyword=Quick analysis for pion trigger efficienciesHere are two plots for the pion trigger efficiencies, one for narrow-width and one for wide-width. The difference between the two is because of timing misalignment, which cause loss of the narrow triggers (but not the wide). The shape -- that the efficiency is lower for smaller x, or smaller momentum -- indicate the current cut on the Total Shower for pion triggers might be cutting into the pion distribution and cause a momentum dependence.
Further analysis will be done -- offline.

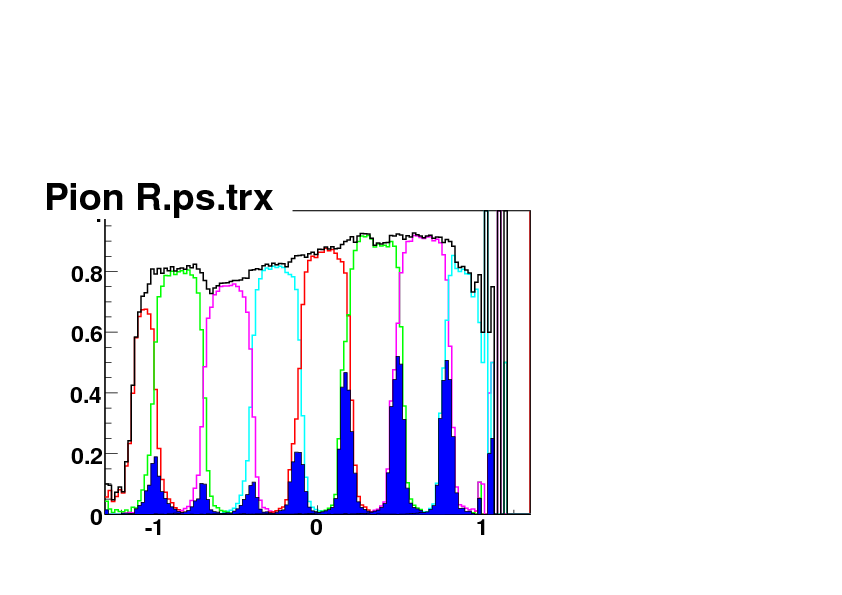

Pion Narrow Trigger

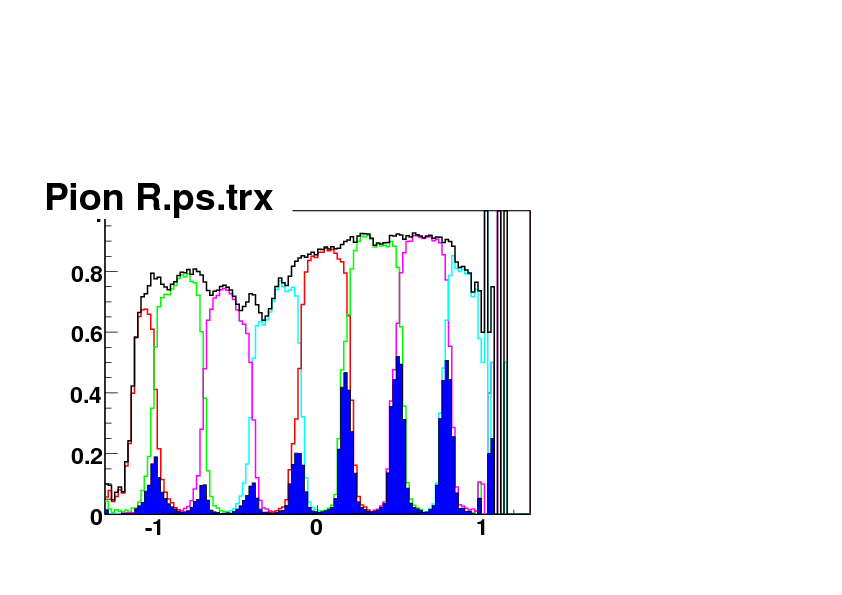

Pion Wide Triggers
