Make New Entry, Make Followup Entry
User name V. Sulkosky
Log entry time 01:59:39 on June13,2009
Entry number 280922
keyword=Right Dipole and Q3 Have FaultsStill after some time, the right dipole and Q3 have faults that I
cannot get to clear from the Counting House. When I reset the dipole
all the faults clear, but when I attempt to turn on the power supply
a 'Power Supply' fault appears. For Q3 the 'Quench' indicator
indicates a fault that does not clear with the remote reset.
I am pretty sure that both magnets need to be reset locally from the
Hall. We are currently taking data with the left spectrometer and
BigBite.

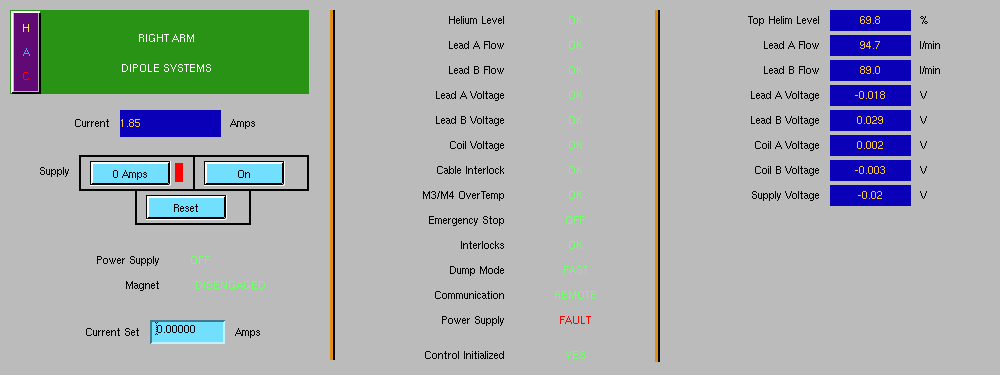

FIGURE 1

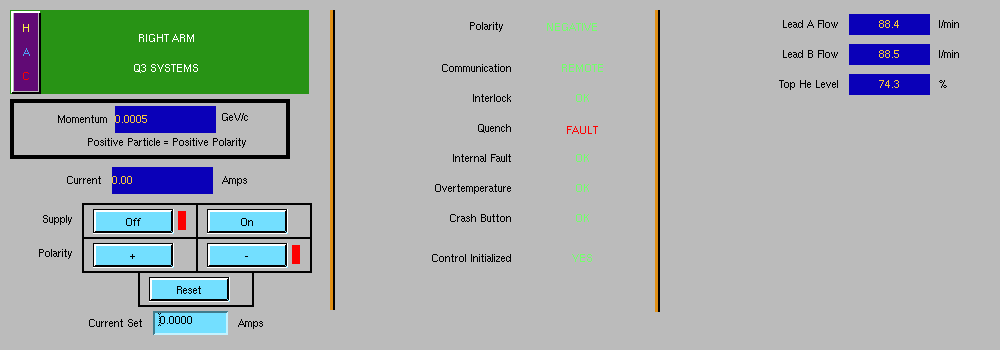

FIGURE 2
