User name Franklin
Log entry time 00:14:50 on September 13, 2009
Entry number 289286

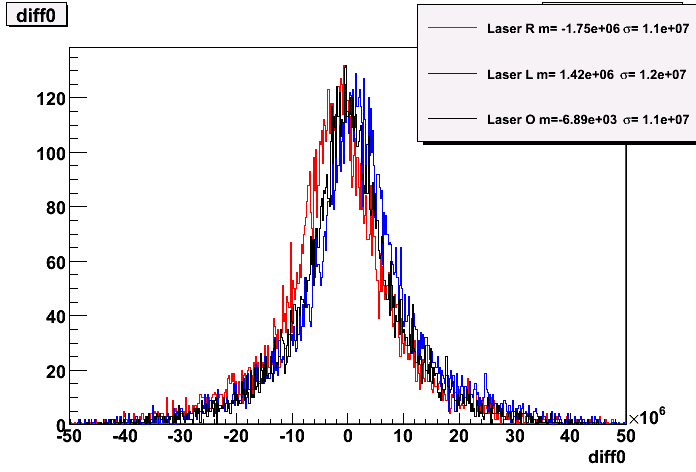

keyword=Compton Accumulator Helicity Pair PlotsFig 1 shows Run 19285 (beam off) Accum 0 pair differences. Width seems OK... no extra noise.
Fig 2 to to 5 are from Run 19283. (Reduced GSO HV). Fig 2 is the Accum 0 pair differences. Fig 3 is the pair sums. Fig4. is the Accum 0 asymmetry,
Fig 5 is the trigger sums showing the position of the compton edge amd
Fog 6 shows the number of triggers per MPS (for laser off and laser on).
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
