keyword=proposed simplified Compton DAQFor the purpose of testing, I request to build the the DAQ
shown in fig 1. This is a greatly simplifed DAQ that might
work. I'd like to request 4 hours of beam time to attempt to
make coincidences. The coincidences can probably be formed
because each DAQ sees 100% of helicity transitions and has a
40 MHz clock to synch the events. The full complement of
auxiliary information for measurements should be available.
No hardware changes are necessary, and this config can be
built purely by making a new CODA config. I propose to try
this on Sunday owl shift.

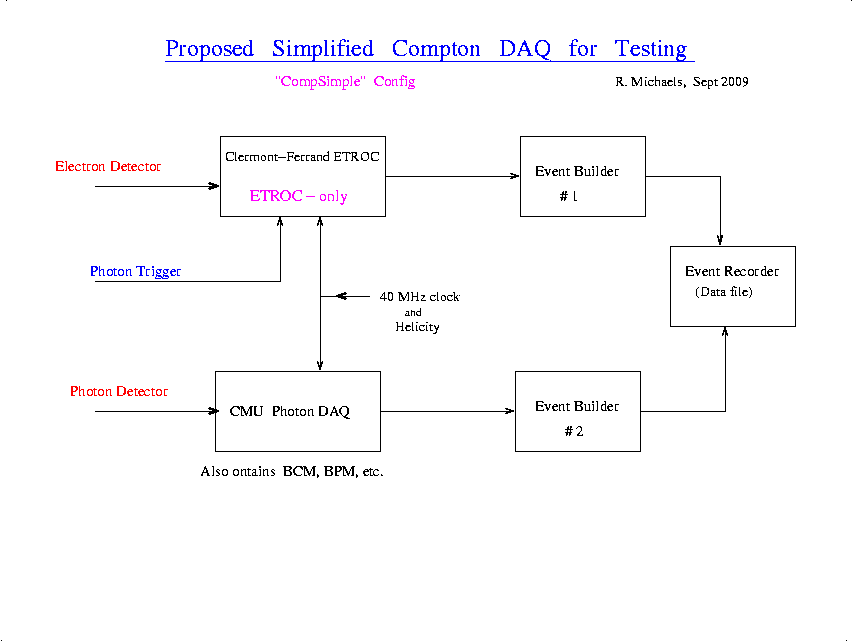

FIGURE 1
