dithering plots, @ 30 % change in last moller quad

NEXT
Make New Entry, Make Followup Entry

User name silwal

Log entry time 14:35:50 on September25,2009

Entry number 291605

keyword=dithering plots, @ 30 % change in last moller quad

changed the vertical dispersion in y by 30 % using the last moller quad. caused
the spot size to change from 6x5 to 8x3, and beam way off centered on the
C-Hole target.

magnitude of target slopes at 30 % change (18,35) urad (run # 12673, dit cycle
122)
magnitude of target slopes before change (10,14) urad (run # 12660, dit cycle
79)

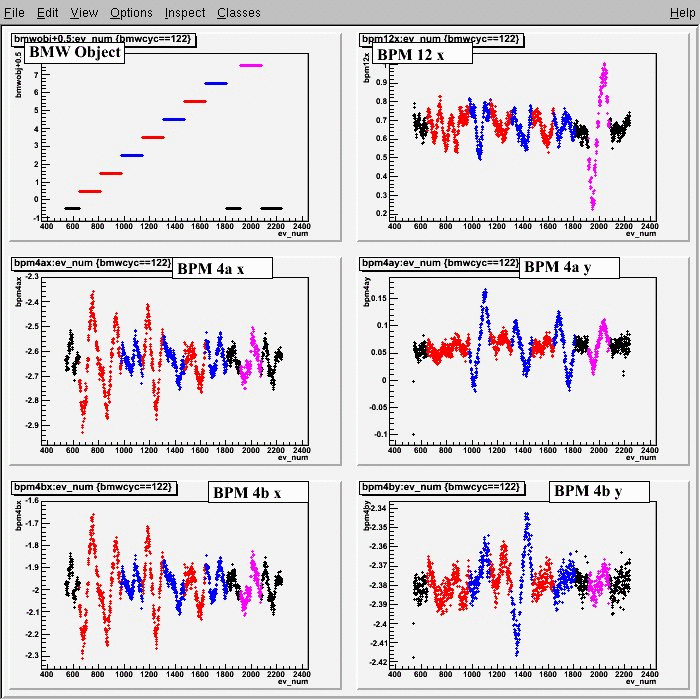

FIGURE 1

FIGURE 2
