    User name mcnulty

    Log entry time 10:32:08 on September27,2009

    Entry number 291910

    keyword=spot++ after -10% change

    spot++ looks the same as yesterday when we did this (~6 by 6 mm2 raster).

    Here are the BPMs:

    Ax:-0.04,
    Bx:-1.3,
    Ay:1.9,
    By:2.3,

    These are all within 0.2 - 0.3mm of nominal center.  We will adjust these to
    center soon.

    Next we will move to the carbon hole to center the raster and then turn off
    raster and do a harp scan...then go back to Hydrogen and look at it at 10uA
    (verify flat/clean raster current scan), and then goto100uA and look at boiling.

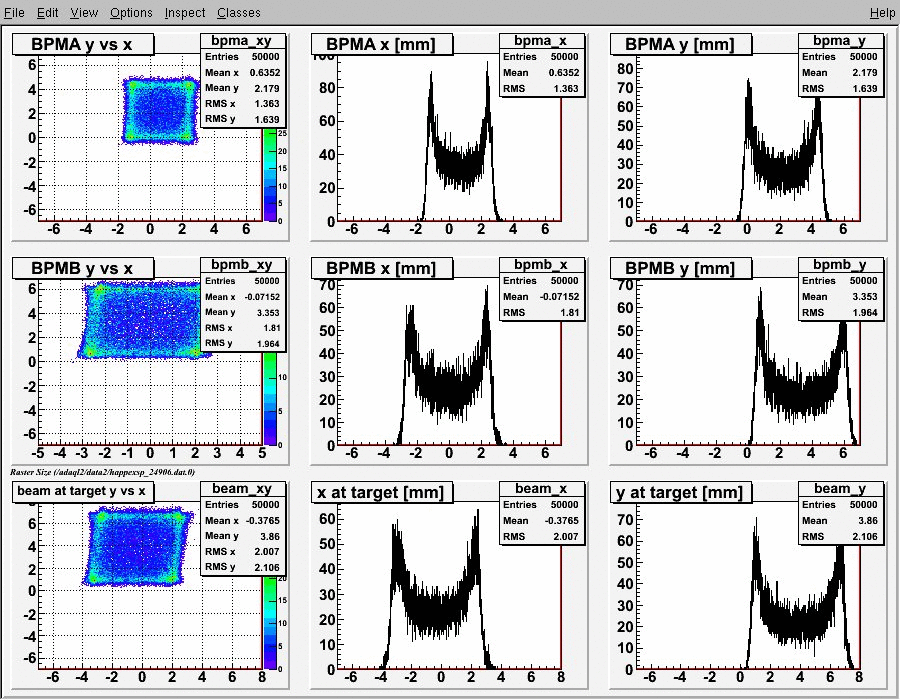

    FIGURE 1

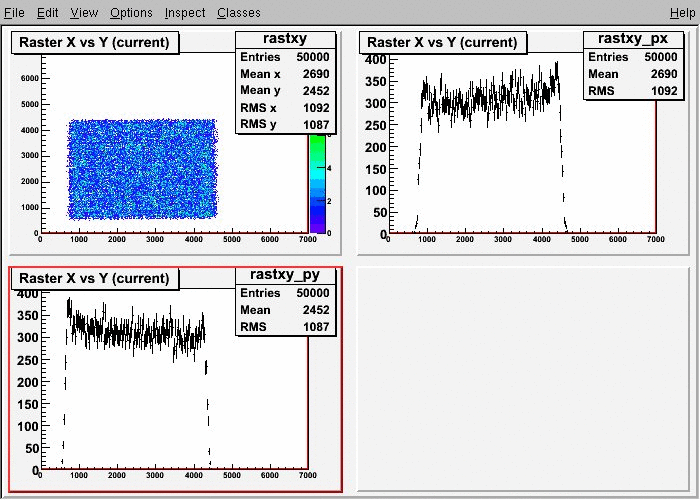

    FIGURE 2
