Log entry time 05:16:45 on March 30, 2010

Entry number 314696

This entry is a followup to: 314544

Followups:

• 314726 03/30/10 10:22 R. Michaels re: raster effect
• 314729 03/30/10 11:57 R. Michaels re: raster and line locking

During run 2398 the raster size was changed from 4x4 to 5x5 and 6x6.  The
attached plots show that the periodic behavior observed in bpm4by changes
amplitude.

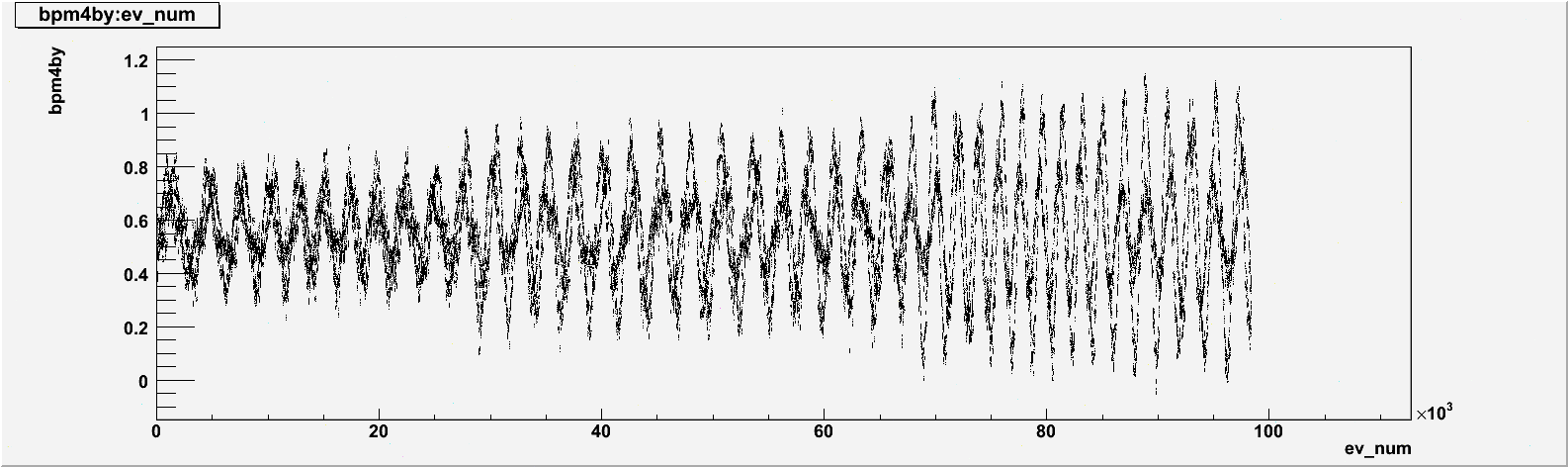

Run 2398 bpm4by

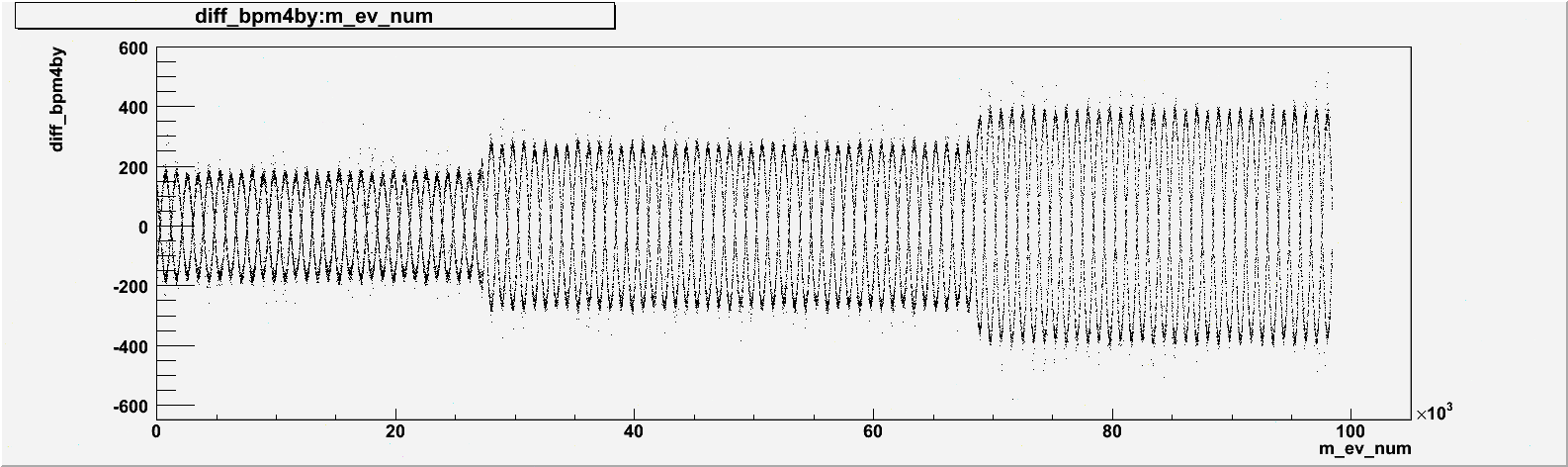

Run 2398 bpm4by differences
