User name Hisham
Log entry time 14:31:55 on October18,2010
Entry number 335482
keyword=BCM CalibrationTentative initial BCM calibration analysis data
MCC log file 160,
9 current steps 94, 50, 20, 10, 5, 2, 1, 0.5, 0.2 micro A
Coda Data files 7353, 7354.
Foloow up to (Entry number 335029)
Columns are u1, u3, u10, respectively
114.4 358.7 469.7
60.9 187.8 284.6
25.5 78 118.5
12.8 38.7 158.7
6.5 19.2 29.1
2.7 7.7 11.5
1.5 4.0 6.1
0.9 2.2 3.1
0.5 1.1 1.47
d1, d3, d10
125.8 386.7 510.2
67.0 207.3 322.3
27.8 86.4 272.3
13.9 42.8 134.9
6.9 21.2 66.8
2.8 8.4 26.4
1.5 4.4 13.7
0.8 2.3 7.1
0.4 1.1 3.3
Calculated upstream, downstream
93.51 93.09
49.03 49.50
20.64 20.65
10.21 10.21
5.09 5.09
20.022 2.021
1.056 1.056
0.54 0.54
0.248 0.249
Fit range: 10-100, 3-30, 1-15, respectively.
Hisham

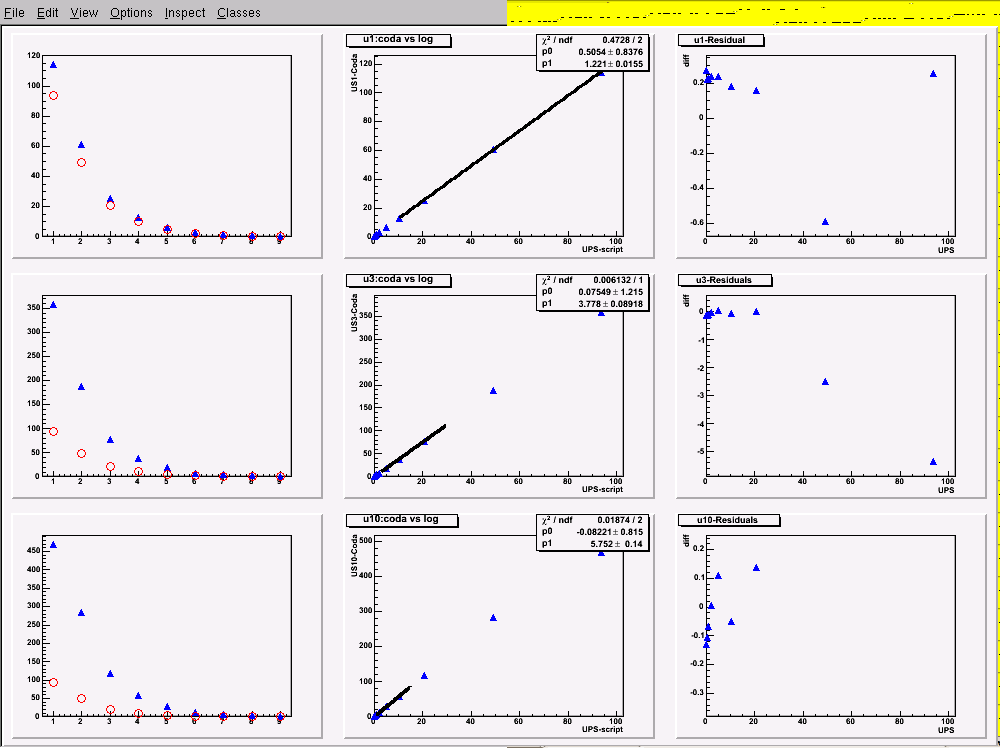

FIGURE 1

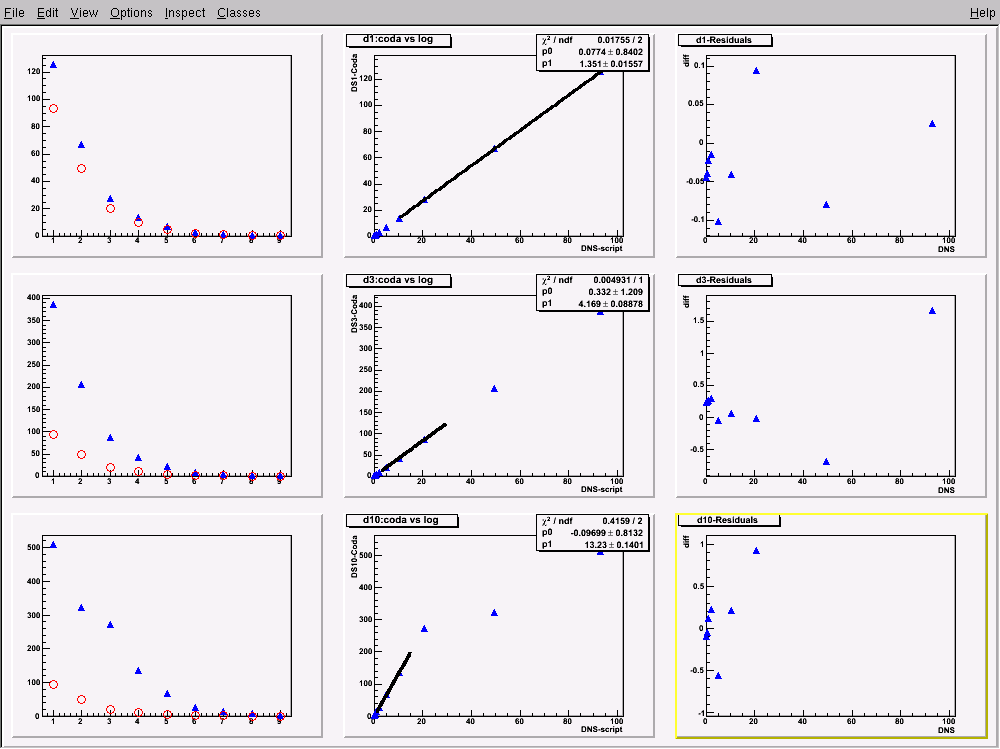

FIGURE 2
