Log entry time 14:23:47 on November 05, 2010

Entry number 338664

This entry is a followup to: 338614

Followups:

• 338756 11/06/10 01:26 jroche new BCM calibration in the end of run script

Here are the BCM calibration results. Today as we are confident with the 1024 Hz, I used that clock (1024Hz). Next step: updating the epics displays and the end of run process, will post halog entry when this si done.

This coefficents are for a parametrization of type I(uA)=coeff*probereadings+const

i=0 title=U1 coeff=0.269837+/-0.000568123 const=-0.156807+/-0.00972723
i=1 title=U3 coeff=0.0879449+/-0.000186639 const=-0.0456779+/-0.00535317
i=2 title=U10 coeff=0.058087+/-0.00010412 const=-0.0162412+/-0.00181999
i=3 title=D1 coeff=0.250755+/-0.000527962 const=-0.0326157+/-0.00951035
i=4 title=D3 coeff=0.0818219+/-0.000173644 const=-0.00909392+/-0.00528874
i=5 title=D10 coeff=0.0261161+/-4.6813e-05 const=-0.00779877+/-0.00180862

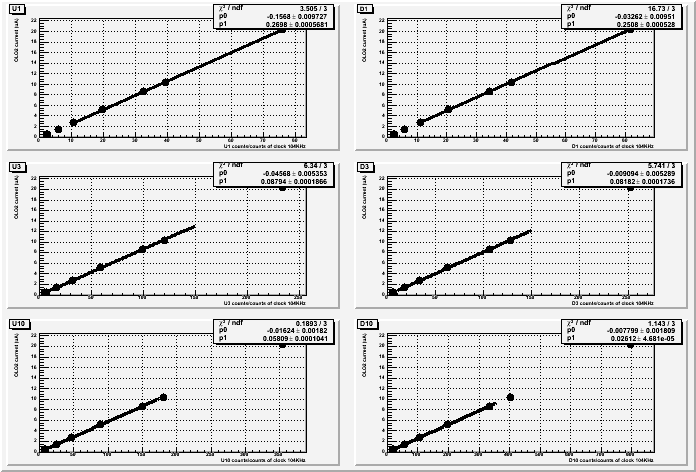

Fits of the slope of the bcms reading versus the OLO2 readings

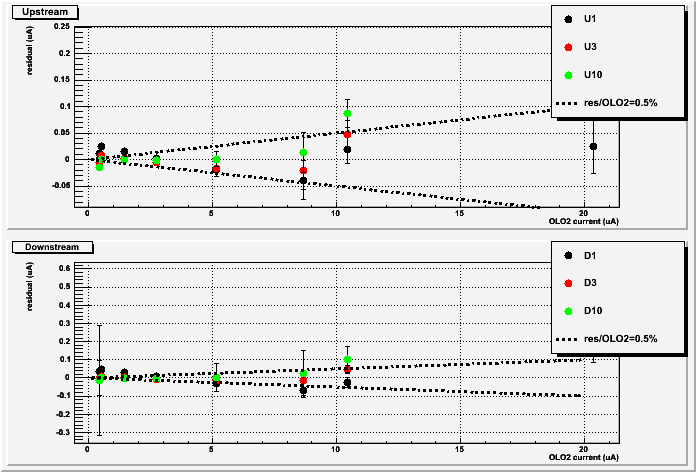

Residuals of the fits (full range)

REsiduals of the fit (zoomed in the low current region)
