keyword=Compton table scan for 11-11-10Table scan:

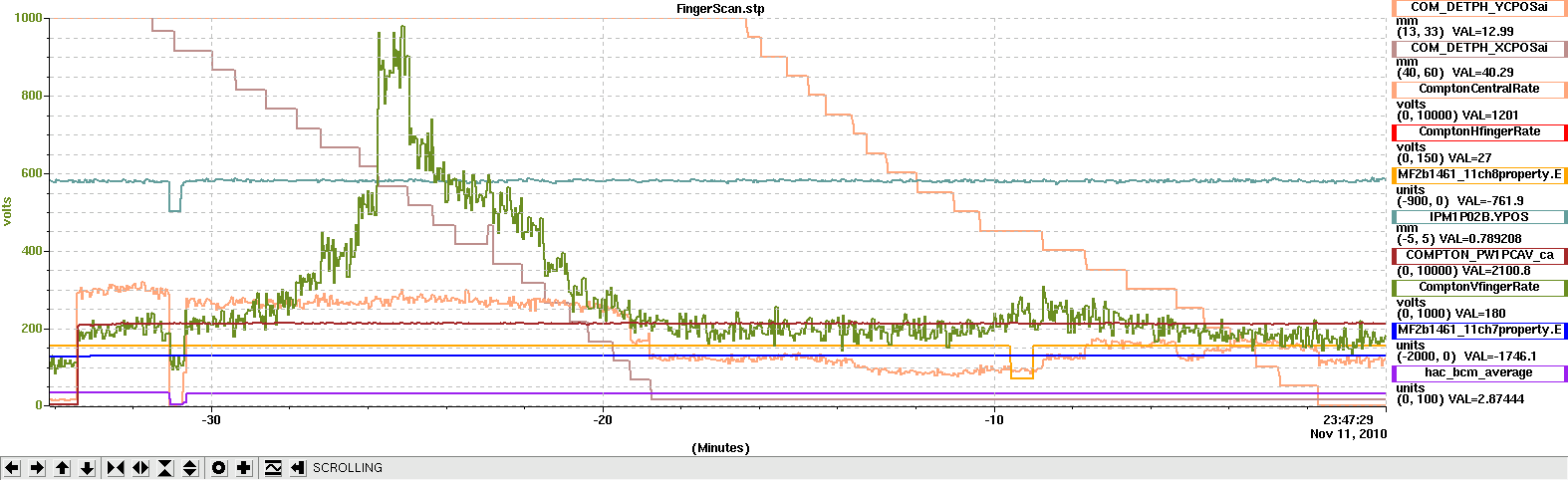

Horizontal scan (Fig1):
XPOS (mm) | VFingerRate (V) (these are given approximately)
60.3 200
59.3 200
58.3 225
57.3 225
56.3 250
55.3 300
54.3 325
53.3 375
52.3 500
51.3 900
50.3 700
49.3 600
48.3 550
47.3 550
46.3 450
45.3 350
44.3 300
43.3 275
42.3 250
41.3 225
40.3 200
Highest rates at x=51mm

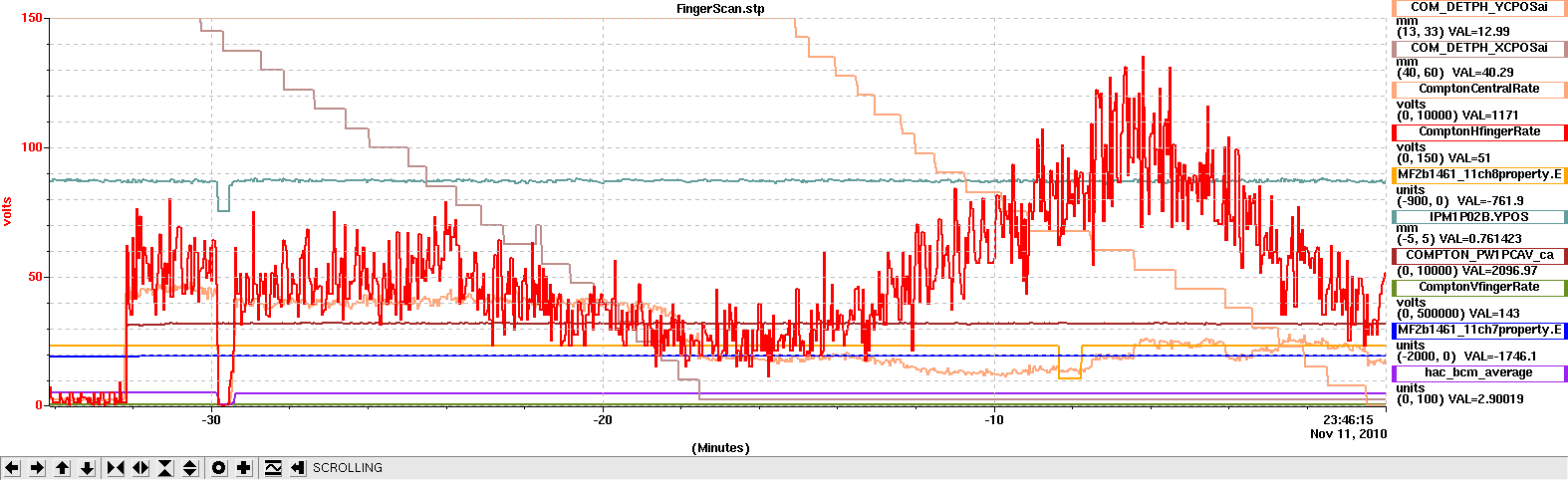

Vertical scan:
YPOS (mm) | HFingerRate (V) (these are given approximately)
33.0 25
32.0 25
31.0 25
30.0 25
29.0 50
28.0 50
27.0 50
26.0 75
25.0 75
24.0 75
23.0 75
22.0 100
21.0 125
20.0 100
19.0 100
18.0 100
17.0 75
16.0 50
15.0 50
14.0 50
13.0 25
Highest rates at Y = 19mm.
FIGURE 1
FIGURE 2
