Log entry time 08:45:41 on November15,2010
Entry number 340160

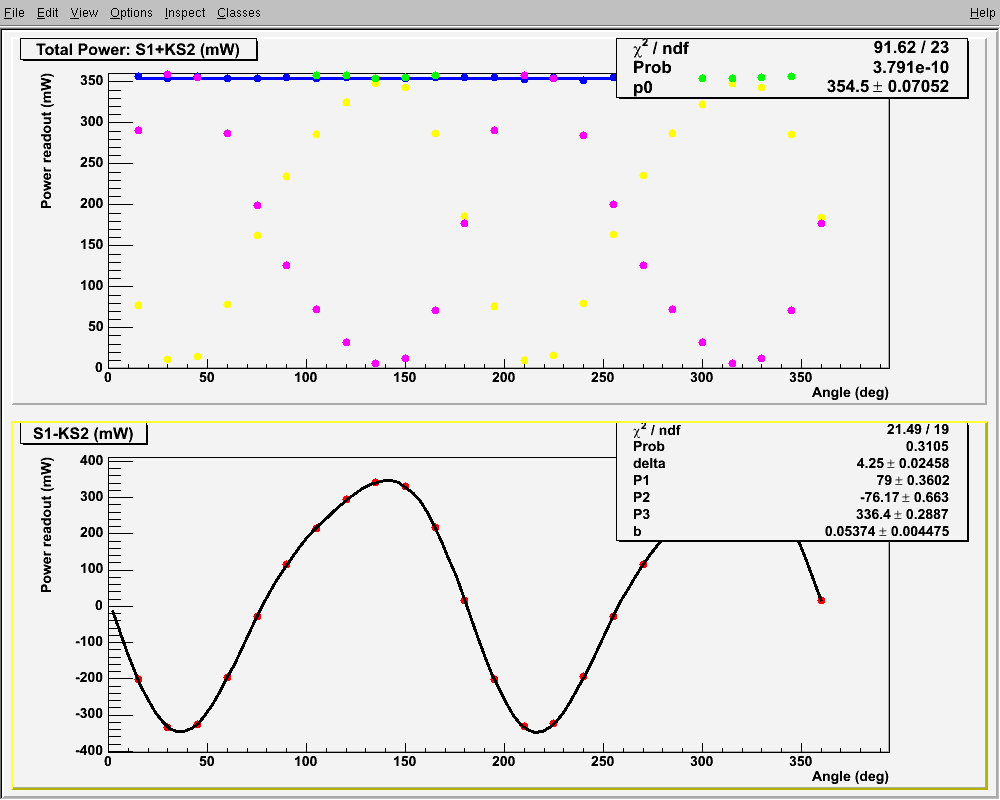

keyword=QWP scan results for 11-14Left state (Fig1):
####### RESULTS ########
delta=4.25018 +/- 0.0245835 degree
Ellipse parameters:
Axis Ratio=0.724682 +/- 0.00103863
==> DOCP from ellipse param=95.03 +/- 0.0424036 %
==> DOCP from Stokes param=94.9043 +/- 0.0836001 %
Angle=-21.9778 +/- -0.140645 degrees
==> retardation error=3.42097 +/- 0.284919 %

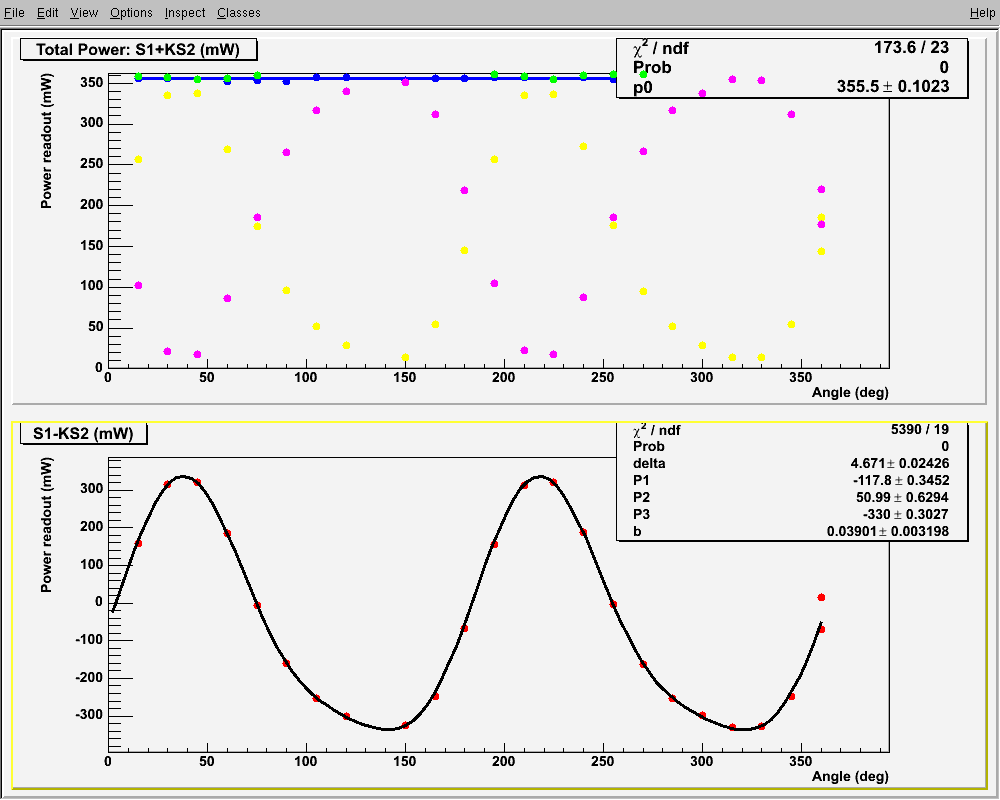

Right state (Fig2):
####### RESULTS ########
delta=4.67059 +/- 0.0242569 degree
Ellipse parameters:
Axis Ratio=-0.682049 +/- 0.000857801
==> DOCP from ellipse param=-93.1004 +/- 0.0427393 %
==> DOCP from Stokes param=-92.8303 +/- -0.0892334 %
Angle=78.2961 +/- -0.132499 degrees
==> retardation error=2.48337 +/- 0.203564 %
FIGURE 1
FIGURE 2
