User name efuchey
Log entry time 10:06:14 on November16,2010
Entry number 340331

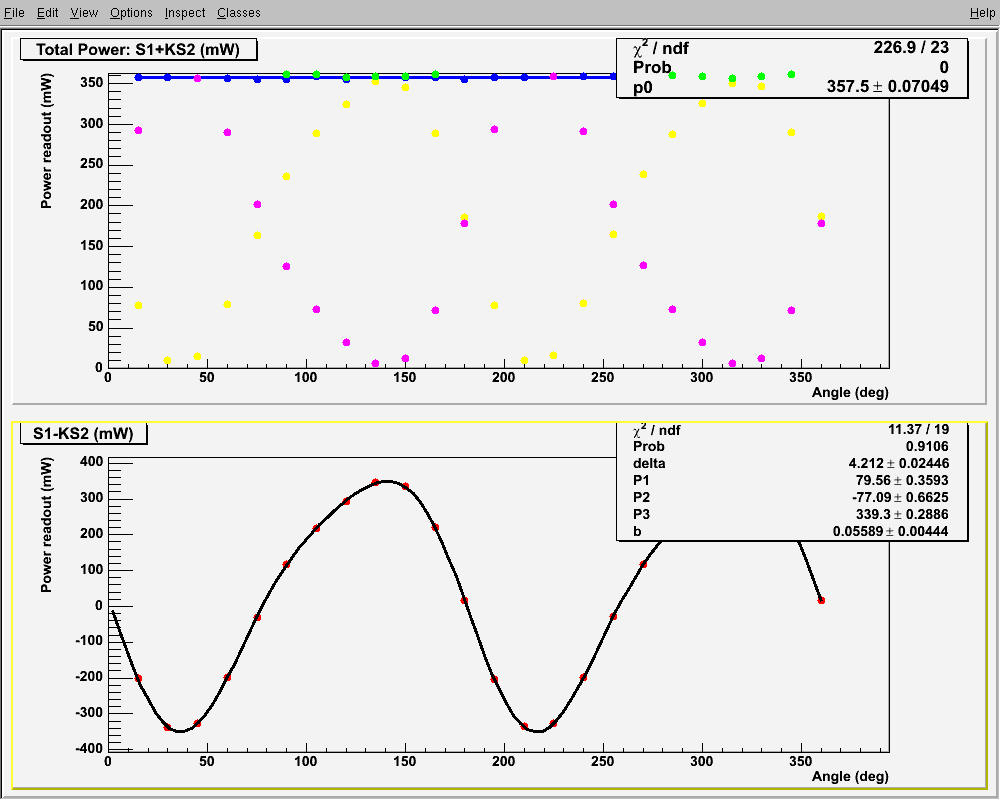

keyword=QWP scan for 11-16-10Left state (Fig1):
####### RESULTS ########
delta=4.2119 +/- 0.0244626 degree
Ellipse parameters:
Axis Ratio=0.724549 +/- 0.00102947
==> DOCP from ellipse param=95.0246 +/- 0.0420572 %
==> DOCP from Stokes param=94.9079 +/- 0.082857 %
Angle=-22.048 +/- -0.138989 degrees
==> retardation error=3.55814 +/- 0.282672 %

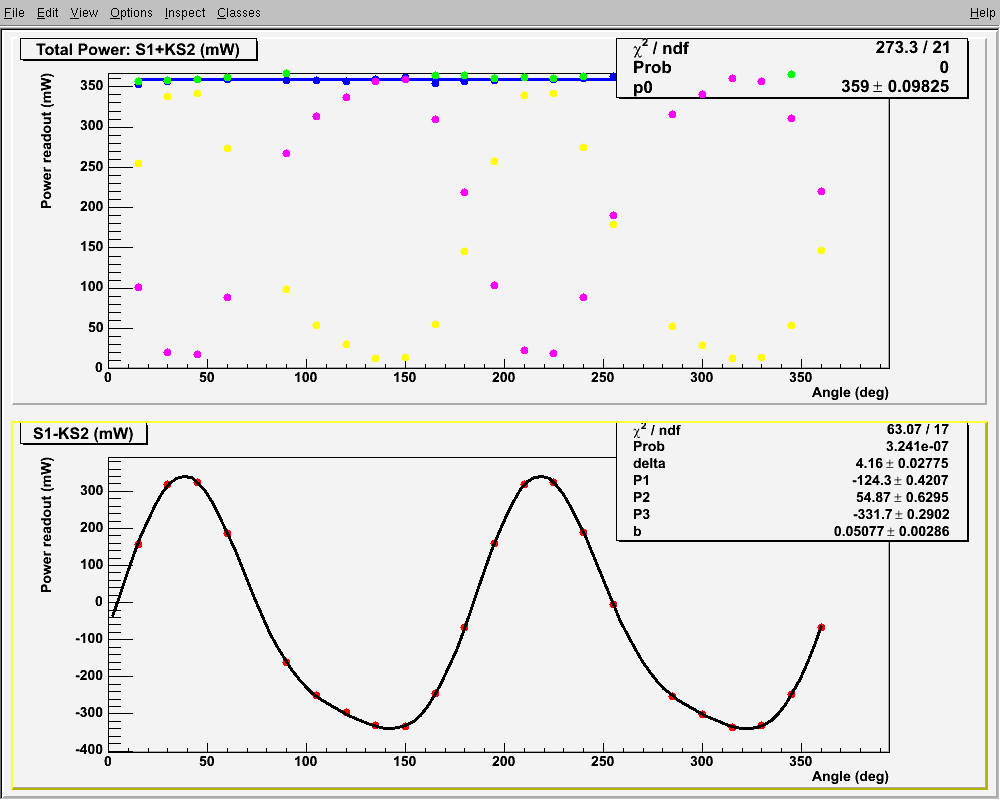

Right state (Fig2):
####### RESULTS ########
delta=4.16015 +/- 0.0277539 degree
Ellipse parameters:
Axis Ratio=-0.670378 +/- 0.000867142
==> DOCP from ellipse param=-92.5038 +/- 0.0454538 %
==> DOCP from Stokes param=-92.4117 +/- -0.0846949 %
Angle=78.0922 +/- -0.126589 degrees
==> retardation error=3.23207 +/- 0.182068 %
FIGURE 1
FIGURE 2
