Make New Entry, Make Followup Entry
User name vahe
Log entry time 19:21:08 on November19,2010
Entry number 340854
keyword=15K supply temperature fluctuationsDue to 15K supply temperature fluctuations heater power fluctuates considerably. For the Loop 2 (HP 30 W), which is not under the beam now, the HP can drop to 8 Watts as 15K temperature rises and then increase to 30Watts as 15K supply temperature goes down. One should monitor this by opening and closing the JT valve. The heater power drop corresponds to 15K supply demperature bump near -20 minutis.

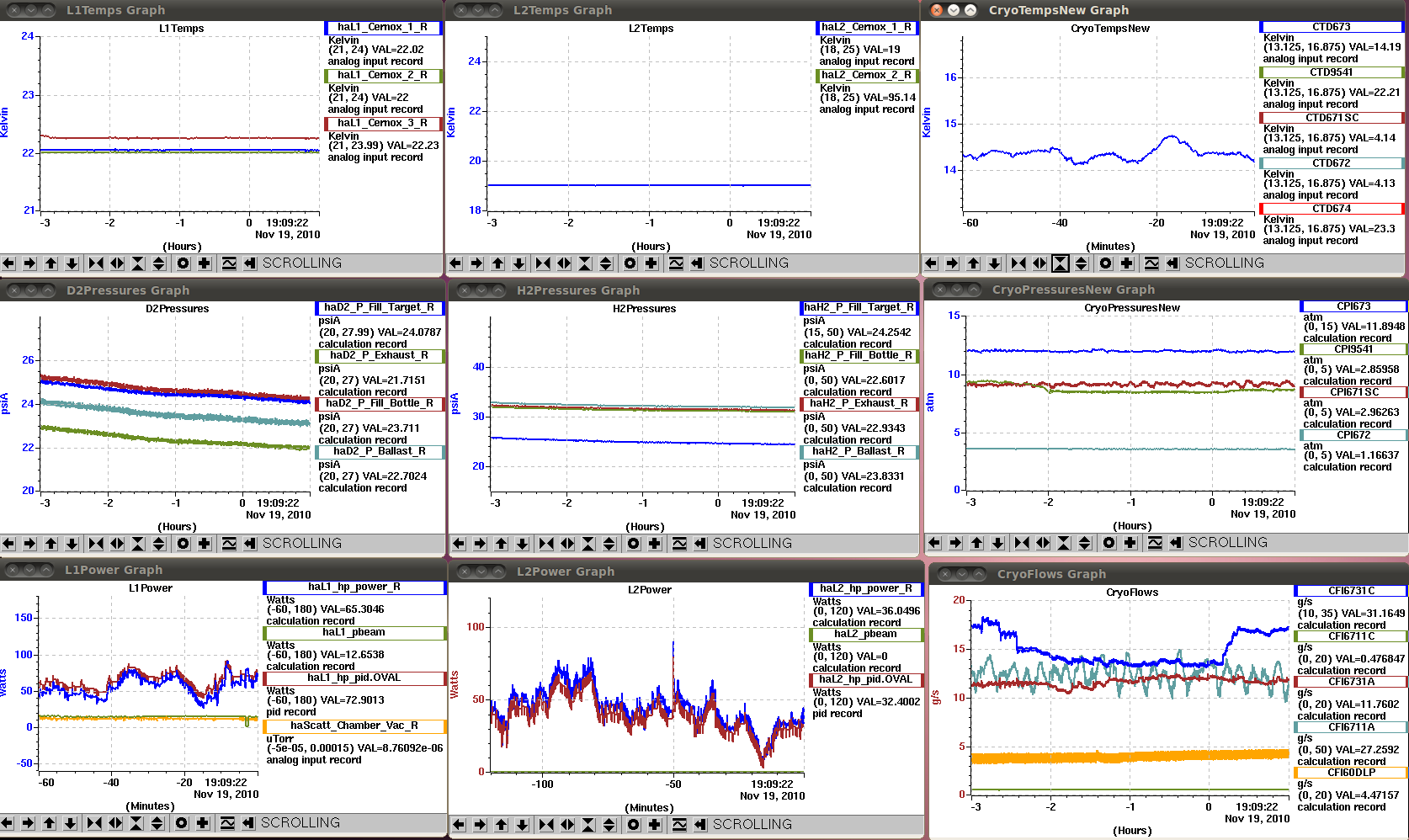

FIGURE 1

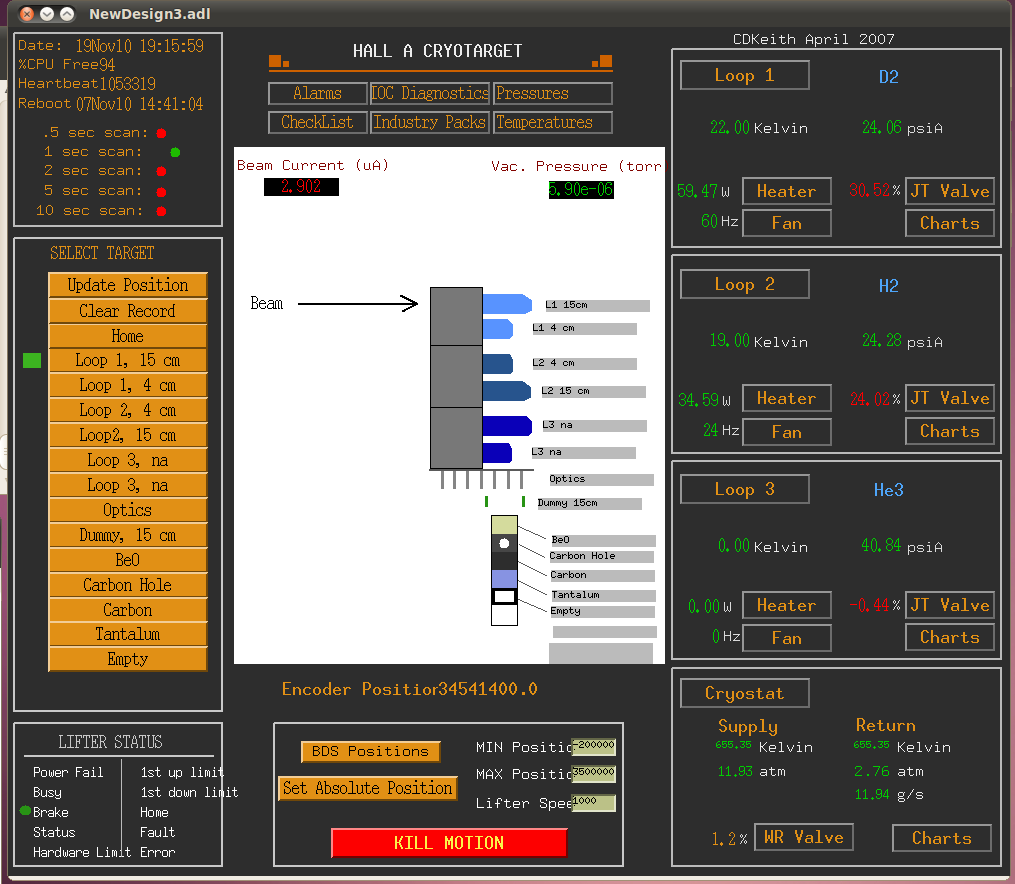

FIGURE 2
