User name efuchey
Log entry time 10:23:27 on November27,2010
Entry number 341662
keyword=QWP scan for 11-27-2010Left state (Fig 1):
####### RESULTS ########
delta=4.18442 +/- 0.0360818 degree
Ellipse parameters:
Axis Ratio=0.72619 +/- 0.0014845
==> DOCP from ellipse param=95.0914 +/- 0.0601548 %
==> DOCP from Stokes param=95.0408 +/- 0.120944 %
Angle=-21.5206 +/- -0.202346 degrees
==> retardation error=3.37701 +/- 0.397994 %
Right state (Fig2):
####### RESULTS ########
delta=4.20966 +/- 0.0305013 degree
Ellipse parameters:
Axis Ratio=-0.667986 +/- 0.00100507
==> DOCP from ellipse param=-92.3778 +/- 0.0532251 %
==> DOCP from Stokes param=-92.2659 +/- -0.109645 %
Angle=79.285 +/- -0.152521 degrees
==> retardation error=3.1185 +/- 0.218951 %

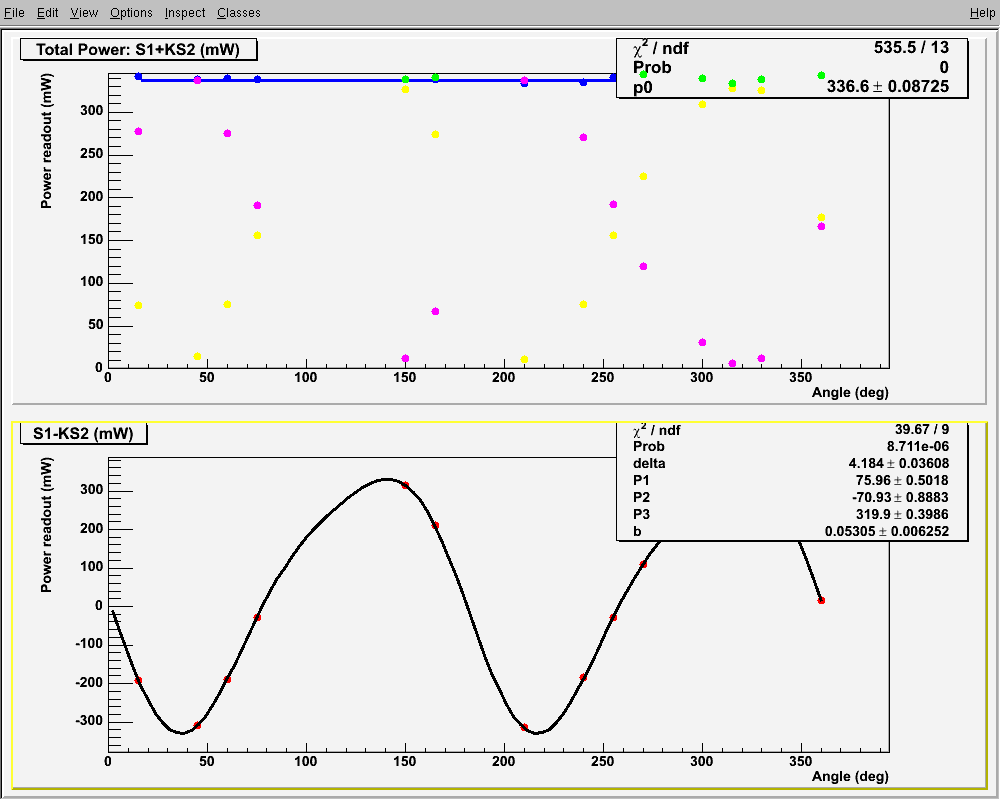

FIGURE 1

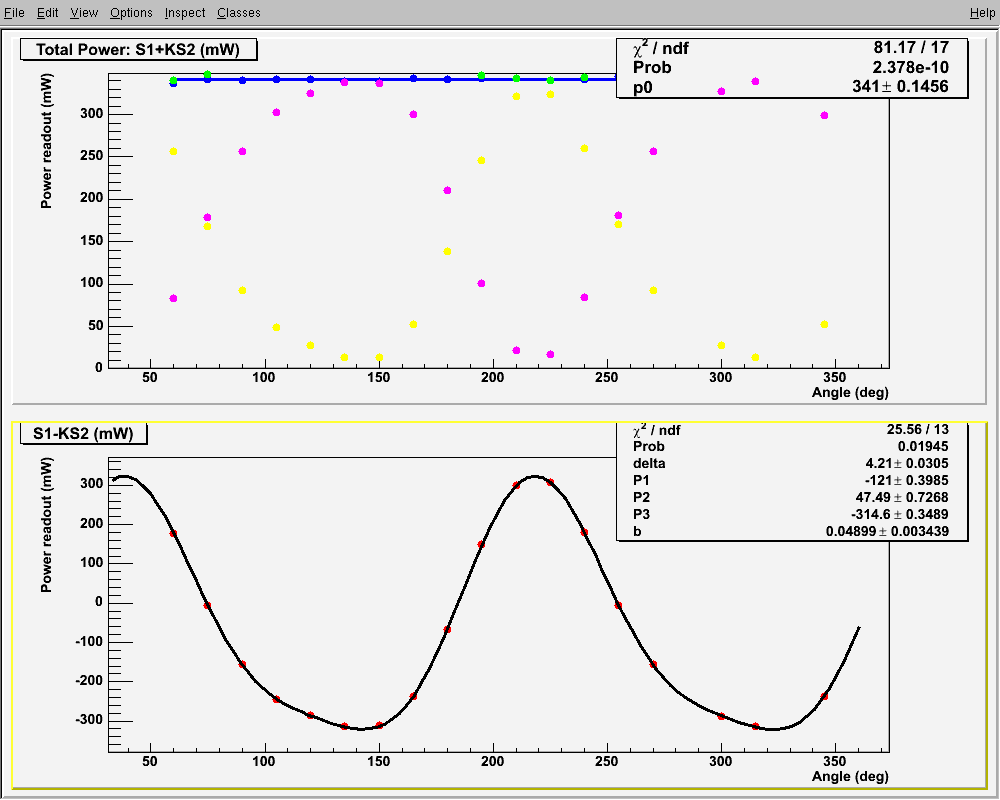

FIGURE 2
