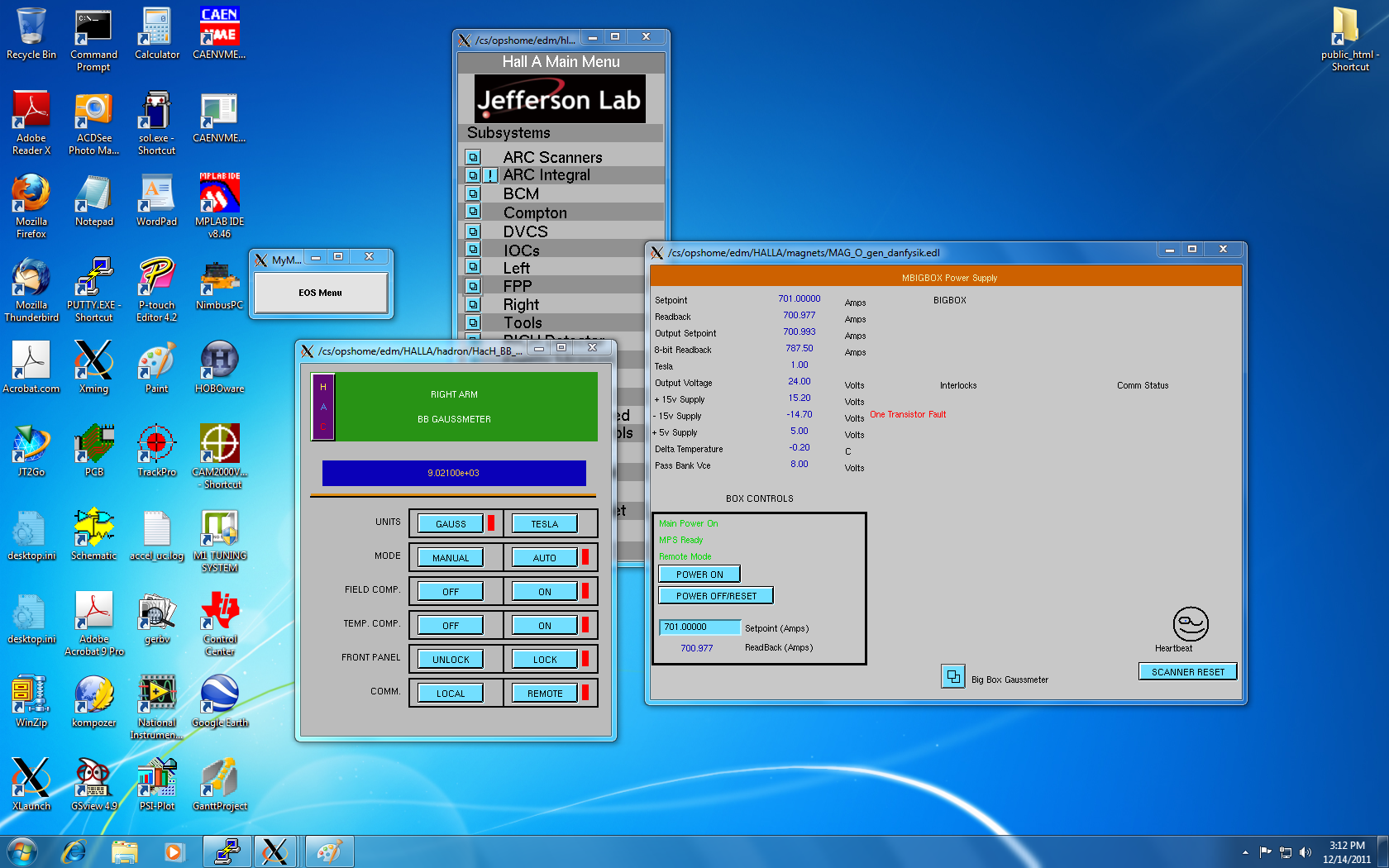

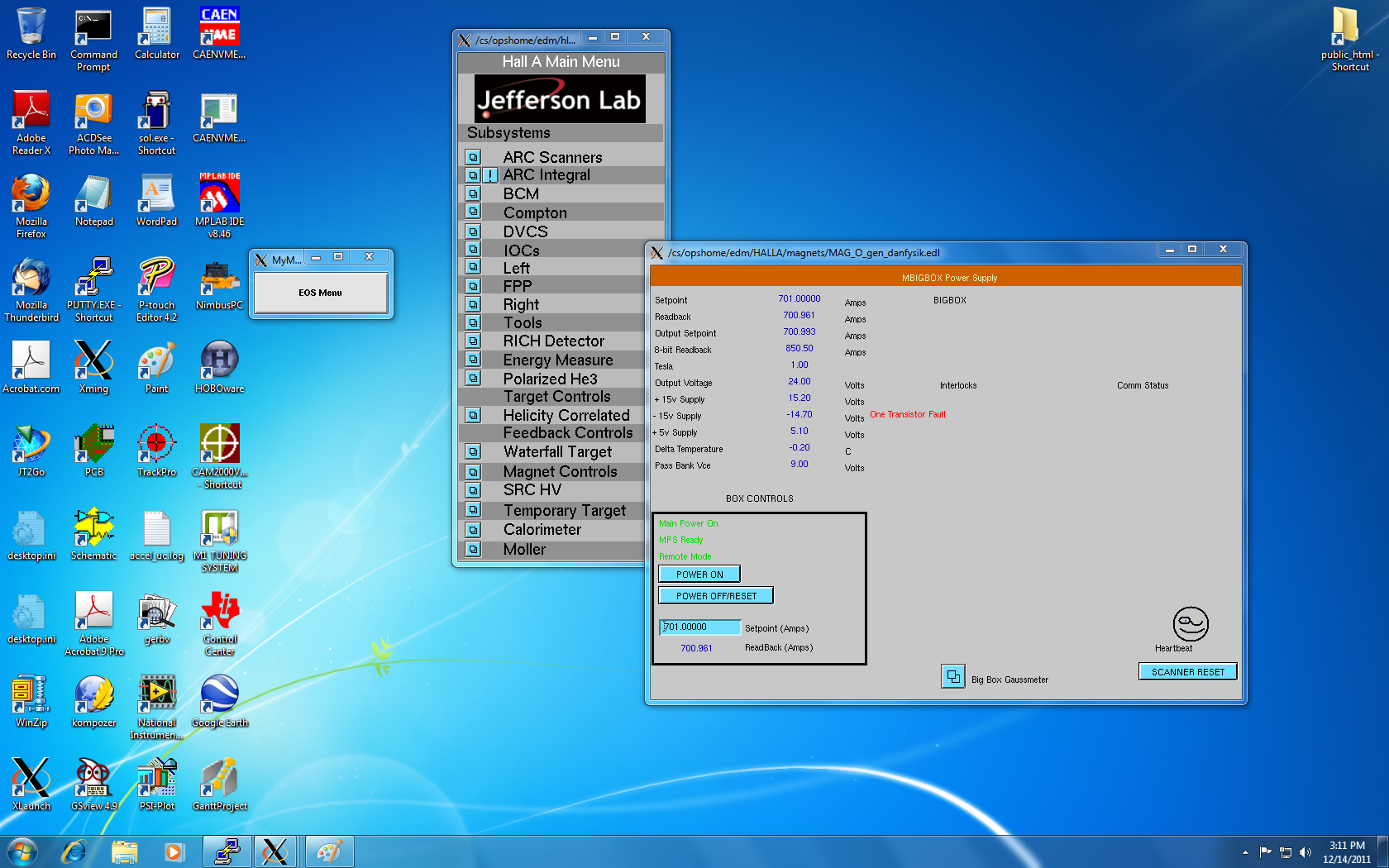

The septum magnet control GUIs can be found from the Hall A Main Menu under the Magnet Controls button. You will have a choice of "Septum Left Controls" and "Septum Right Controls". Selecting either of these will bring up the respective GUI for the power supply control. The two GUIs are different in appearance because the two power supplies are physically different. The Right Septum power supply is the Danfysik normally used for the BigBite magnet and the Left Septum power supply was used on the HKS dipole in Hall C. There is a hall probe located in the Left Septum magnet bore on the downstream, bottom, beamline area. We think it is out of the acceptance. To access the gaussmeter for this probe, you will find a button on the bottom of the "Septum Right Controls". Sorry about that. Hopefully we will find a less confusing location for the gaussmeter GUIs after this run is over.

Figure 1

Figure 2

Figure 3

Figure 4
