    User name jmaxwell

    Log entry time 23:57:34 on April 07, 2012

    Entry number 371410

    keyword=[Target] Polarization Over Last 10 Days

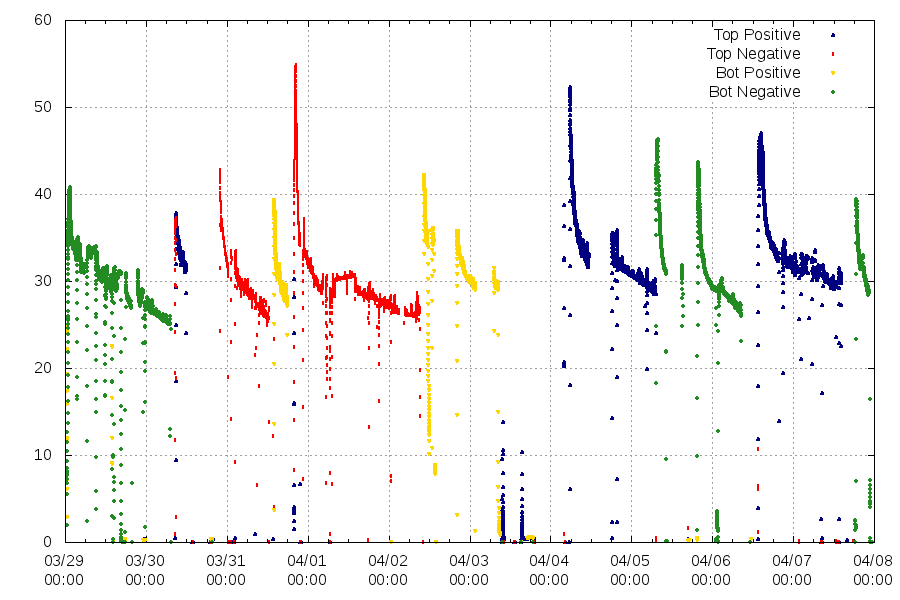

    Attached is a plot of online target polarization for the last 10 days.
    Some caveats to this plot: it is NOT versus dose, so beam trips and the
    like will throw off the decays.  There are also changes in current which
    will affect this plot heavily.  There are certainly stretches in there,
    on the 3rd in particular, where there was no beam, where you can see the
    TE measurements.

    I'm not convinced we're see the end of the life of this material yet.
    Toby and I are working on polarization versus charge accumulated plots,
    which will give a more conclusive answer.  I'm not certain we'll have
    them by Monday, though.

    Some things in the plot are expected.  Each decay shows the first
    exponential to be very fast, while the second is quite slow.  It also
    looks like postive is doing better than negative, and the top is doing a
    bit better than bottom.

    The results from the night of the 7th, if they were taken with the
    correct CC, would not lead me to believe that this material is done.  In
    fact, we probably could have kept that going for awhile.

    The results from the 6th do show a faster decay, but this may be due to
    different beam current.  Can anyone comment on that?  It may also be due
    to TO error, but I don't want to jump to conclusions.

    I guess we can swap material on Monday if it is advantageous, but I think
    the only indication to do this would be the poorer performance of the
    bottom cell.  We're always going to have a trade off here, as the anneals
    can't be done at exactly the same temperature on top as bottom.

    If there is another time in the near future when it might be good to swap
    material, it might be worth considering pushing back the swap.  Of
    course, we shouldn't waste any time that isn't necessary taking a risk
    that this stuff will continue performing well.  On the other hand, we
    don't know that the material we are putting in will perform as well as
    this stuff...



    A copy of this log entry has been emailed to: ckeith, slifer, jpierce



    Figure 1
