Make New Entry, Make Followup Entry
User name Yi Qiang/YI Zhang
Log entry time 11:58:41 on November 20, 2008
Entry number 249959

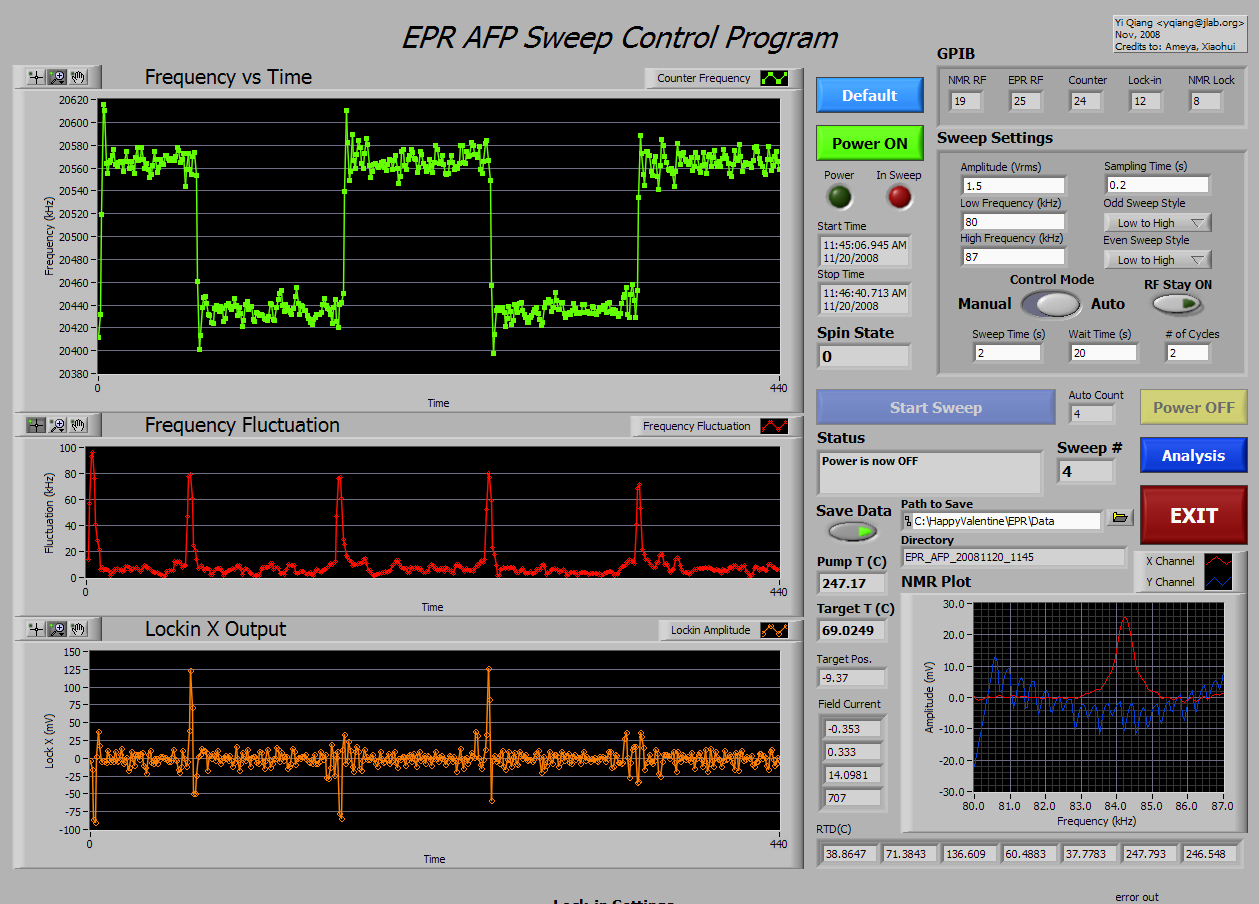

keyword=EPR Calibration for vertical+ field, anti-parallel pumpingWe did two sets of EPR calibration for vertical+ field, anti-parallel

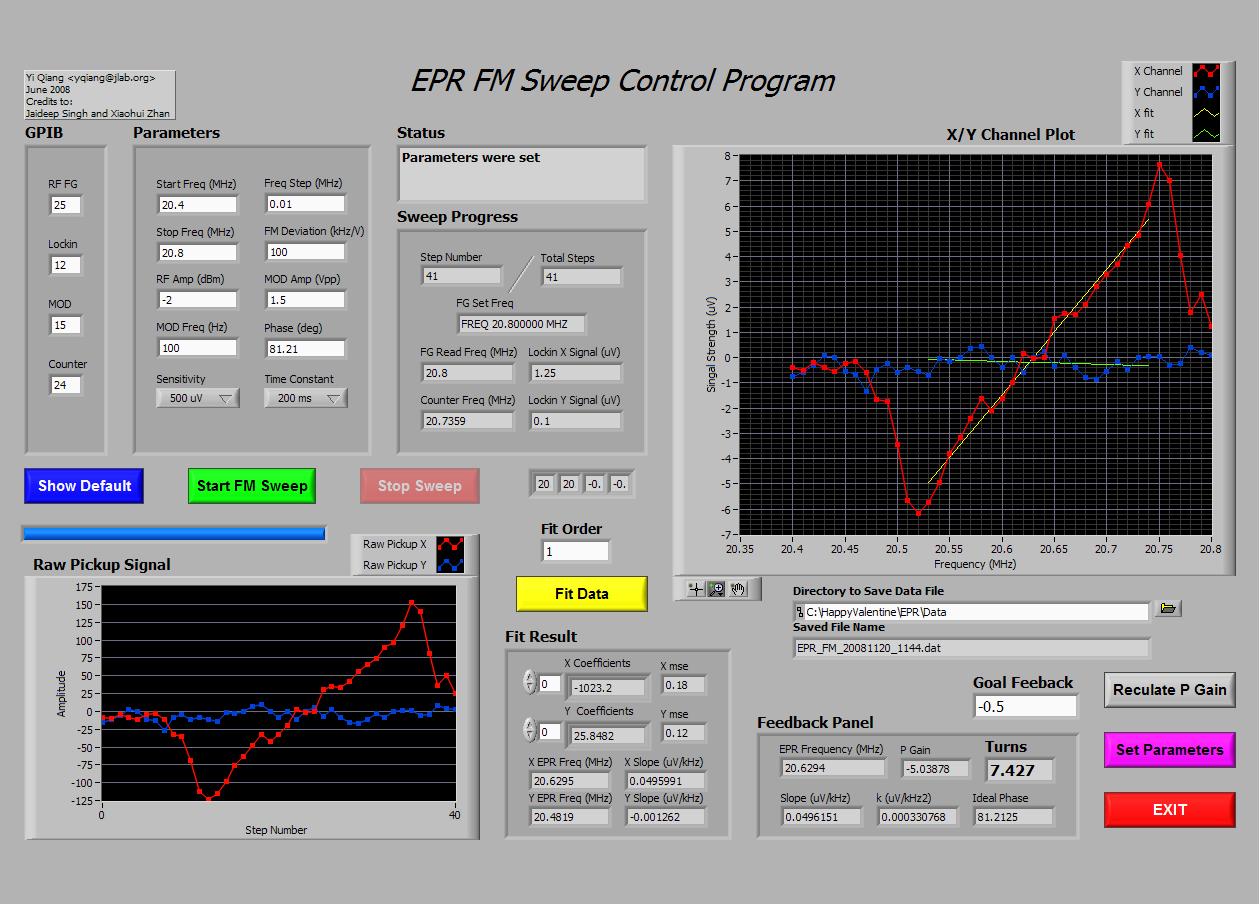

pumping. The first calibration was done with RF power = -2dbm, the

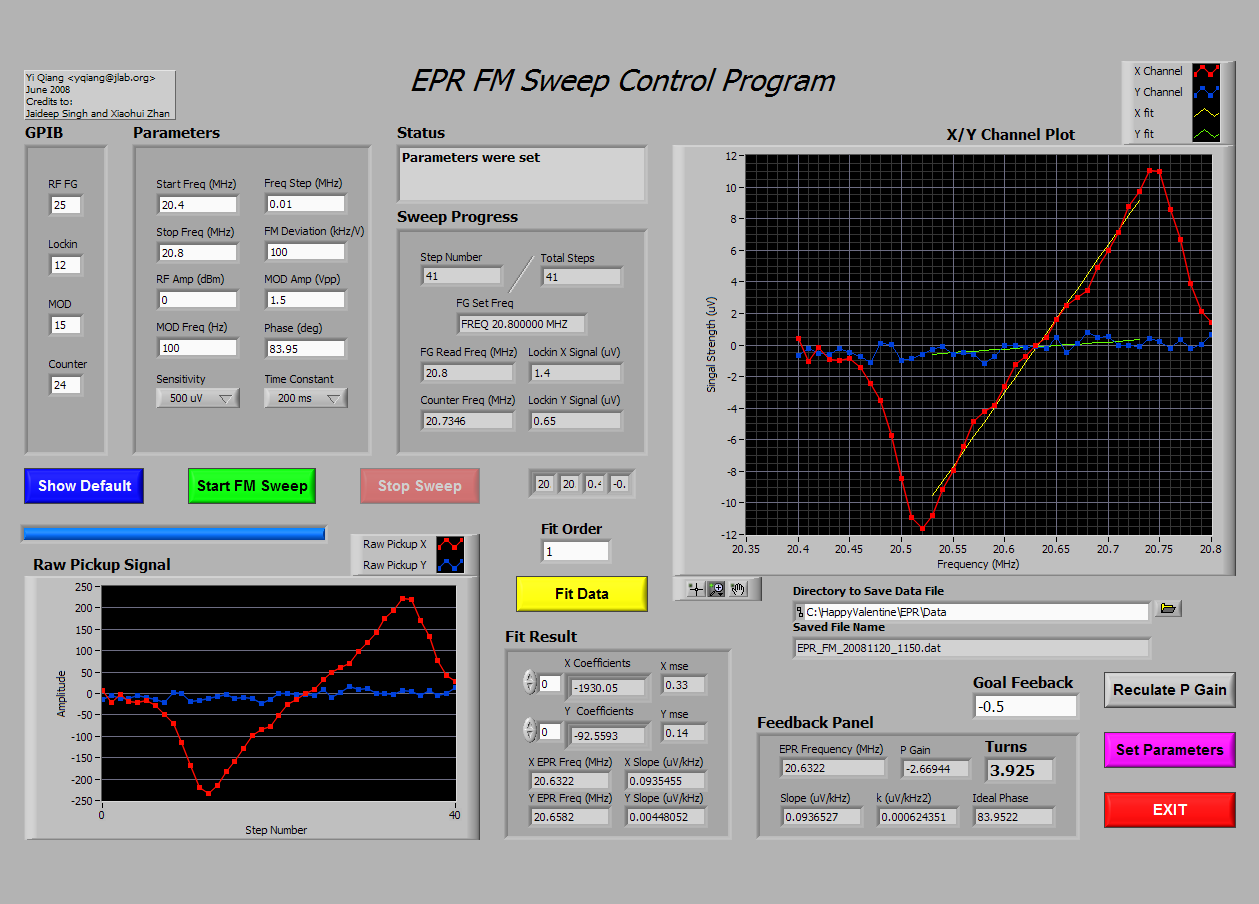

accuracy is not so good, so we did another one with 0 dBm power, and the
precision is about 1%.

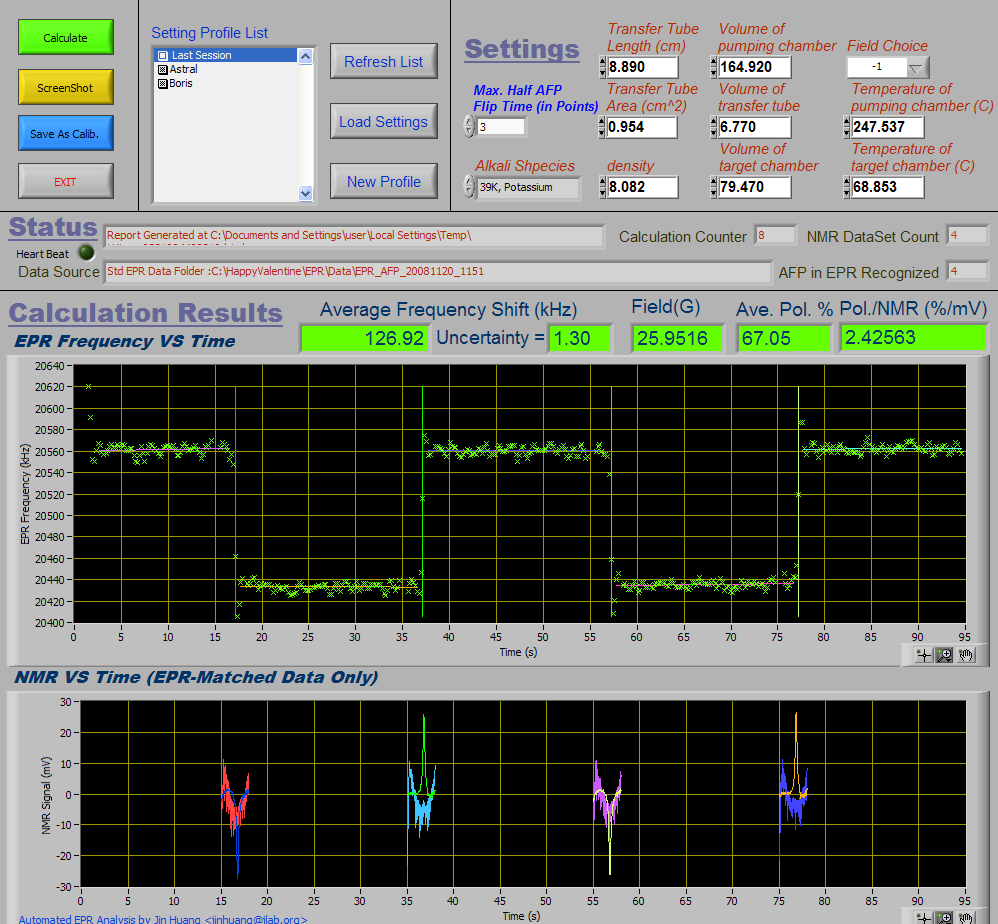

The final calibration constant is 2.43 %/mV
Polarization after test is 67%
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
